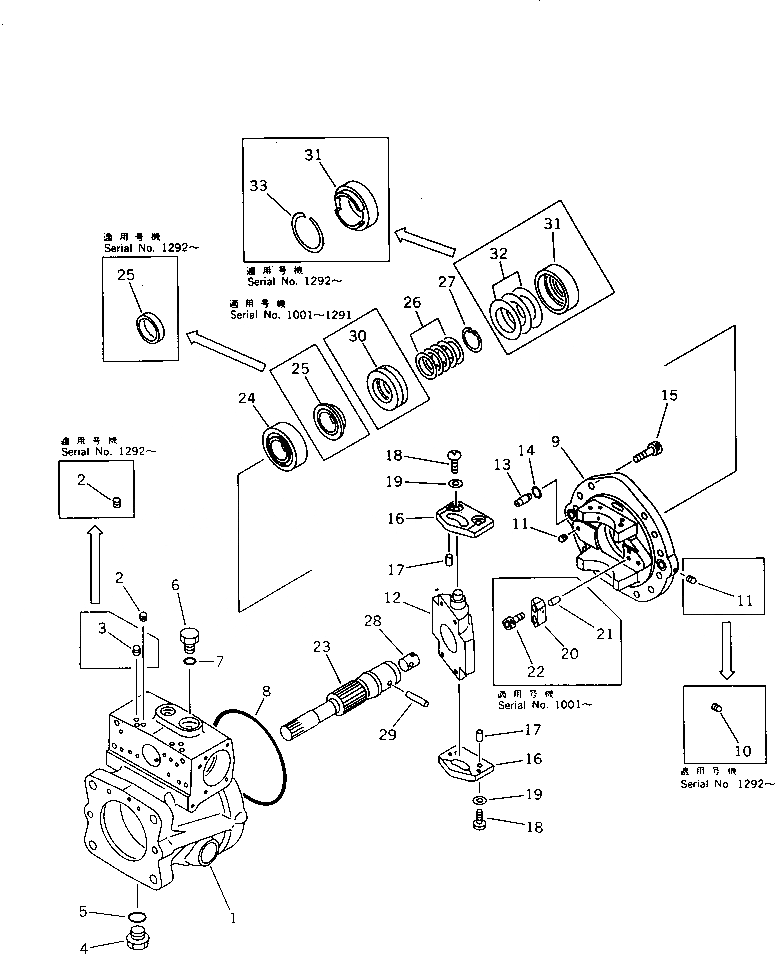

Запчасти Komatsu PW150-1 ГИДР. НАСОС.¤ ЗАДН. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-23-01021

PUMP ASS'Y,(HPV55+55)

|$2

708-23-01020

PUMP ASS'Y,(HPV55+55)

|$4

708-23-10201

PUMP ASS'Y,(HPV55+55)

|$6

708-23-10200

PUMP ASS'Y,(HPV55+55)

|$8

708-23-11202

PUMP SUB ASS'Y

|$10

708-23-11201

PUMP SUB ASS'Y

|$12

708-23-11200

PUMP SUB ASS'Y

|$14

708-23-00350

CASE ASS'Y,REAR

1

CASE,REAR

1

CASE,REAR

2

PLUG

2

PLUG

3

PLUG

4

07044-12412

PLUG

5

07002-02434

O-RING

6

720-68-19870

PLUG

7

07002-01223

O-RING

8

706-73-42370

O-RING

|$25

708-23-00370

CRADLE ASS'Y,REAR

|$26

708-23-00640

CRADLE SUB ASS'Y,REAR

9

CRADLE,REAR

9

CRADLE,REAR

10

PLUG

11

PLUG

11

PLUG

11

PLUG

11

PLUG

12

708-23-13410

CAM

13

708-23-12330

JOINT

13

708-23-12330

JOINT

14

07000-12015

O-RING

14

07000-12015

O-RING

15

708-25-12350

BOLT

16

708-23-12340

PLATE

17

708-23-12370

PIN

17

04020-00616

PIN

18

708-23-12350

SCREW

19

01643-30823

WASHER

20

708-23-12360

STOPPER

21

04020-00616

PIN,DOWEL

22

708-25-12380

BOLT

23

708-23-12720

SHAFT,REAR

24

708-23-12751

BEARING

24

708-23-12750

BEARING

25

708-23-12670

COLLAR

25

708-23-12780

RETAINER

26

708-23-05011

WASHER KIT

26

708-23-05010

WASHER KIT

26

WASHER, 2.60MM

26

WASHER, 2.70MM

26

WASHER, 2.80MM

26

WASHER, 2.50MM

26

WASHER, 2.90MM

27

708-23-12840

RING,SNAP

28

708-23-12930

COUPLING

29

708-23-12940

PIN

30

06000-51109

BEARING

31

708-23-12650

RETAINER

31

708-23-12950

RETAINER

32

708-23-05070

SHIM KIT

32

SHIM

32

SHIM

32

SHIM

33

708-23-12660

RING
