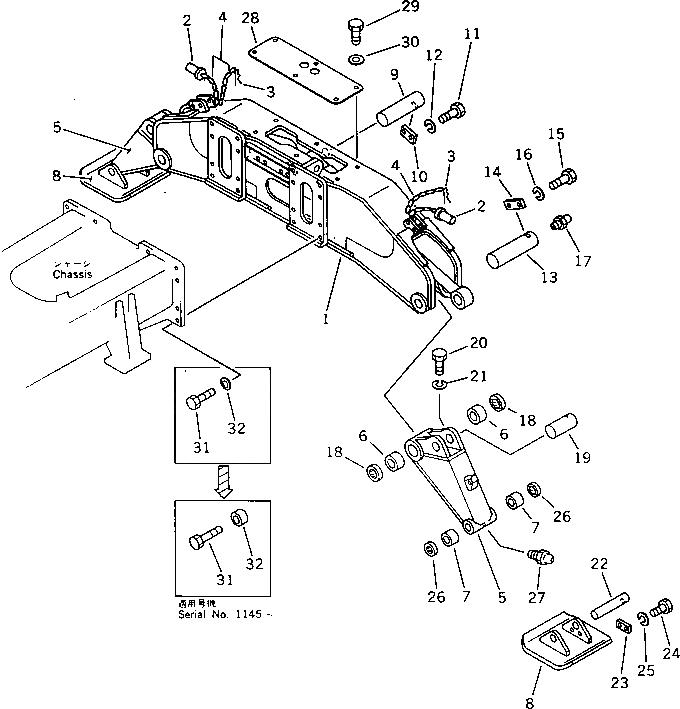

Запчасти Komatsu PW150-1 ОПОРА ОСНОВНАЯ РАМА¤ ШАССИ И КАБИНА

1

20G-47-13112

FRAME

1

20G-47-13111

FRAME

2

430-43-26520

PIN (WELDED)

3

04052-01664

PIN (WELDED)

4

130-75-17160

CHAIN (WELDED)

|$5

20G-47-00030

FRAME ASS'Y,(FOR JAPAN)

|$6

20G-47-00020

FRAME ASS'Y,(EXCEPT JAPAN)

5

FRAME,(FOR JAPAN)

5

FRAME,(EXCEPT JAPAN)

6

21K-70-11210

BUSHING

7

20G-47-13180

BUSHING

8

20G-47-19210

BRACKET,(FOR JAPAN)

8

20G-47-13130

BRACKET,(EXCEPT JAPAN)

9

20G-47-13140

PIN

10

04082-00514

LOCK

11

01010-51435

BOLT

12

01602-21442

WASHER,SPRING

13

20G-47-13161

PIN

14

04082-00514

LOCK

15

01010-51435

BOLT

16

01602-21442

WASHER,SPRING

17

07020-00000

FITTING,GREASE

18

07145-00070

SEAL,DUST

19

20G-47-13150

PIN

20

01011-51220

BOLT

21

01602-21236

WASHER,SPRING

22

20G-47-13170

PIN

23

04082-00212

LOCK

24

01010-51225

BOLT

25

01602-21236

WASHER,SPRING

26

07145-00045

SEAL,DUST

27

07020-00900

FITTING,GREASE

28

20G-47-13191

COVER

29

01010-51020

BOLT

30

01643-31032

WASHER

31

01010-52485

BOLT

31

01010-52065

BOLT

32

130-33-62230

COLLAR

32

01643-32060

WASHER
