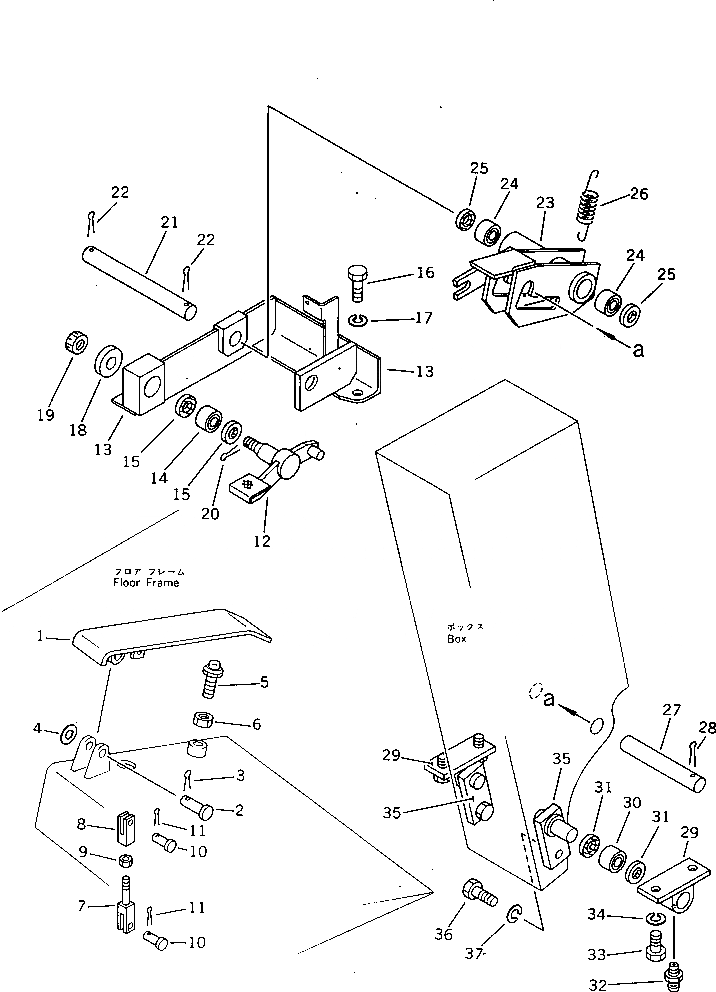

Запчасти Komatsu PW150-1 КЛАПАН МЕХ-М УПРАВЛ-Я ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

1

20G-43-12491

PEDAL

2

04205-11038

PIN

3

04050-13020

PIN,COTTER

4

01641-21016

WASHER

5

09311-31237

BUMPER

6

01580-11210

NUT

7

20G-43-12860

ROD

8

04210-20624

YOKE

9

01580-10605

NUT

10

04205-10618

PIN

11

04050-11610

PIN,COTTER

12

20G-43-12661

LEVER

13

20G-43-12671

BRACKET

14

06120-01612

BEARING

15

06122-01603

SEAL

16

01010-51025

BOLT

17

01602-21030

WASHER,SPRING

18

205-54-51430

SEAT

19

01593-11008

NUT

20

04050-12018

PIN,COTTER

21

20G-43-12720

SHAFT

22

04050-14028

PIN,COTTER

23

20G-43-12651

LEVER

24

06120-01612

BEARING

25

06122-01603

SEAL

26

203-43-21370

SPRING

27

20G-43-12730

SHAFT

28

04050-14045

PIN,COTTER

29

20G-43-12681

BRACKET

30

06120-01612

BEARING

31

06122-01603

SEAL

32

07020-00001

FITTING,GREASE

33

01010-51225

BOLT

34

01602-21236

WASHER,SPRING

35

20G-43-12710

SHAFT

36

01010-51025

BOLT

37

01602-21030

WASHER,SPRING
