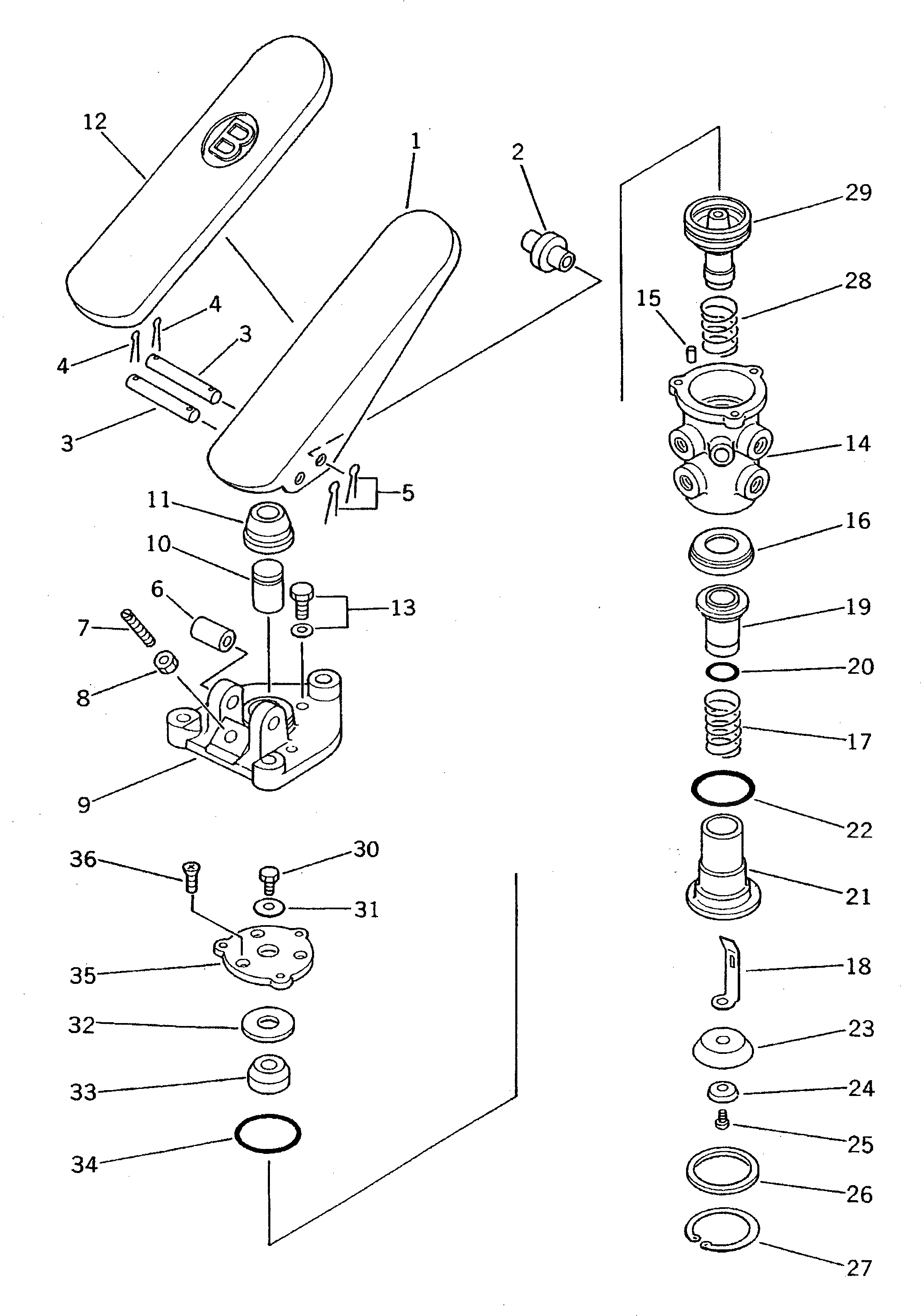

Запчасти Komatsu PW150-1 ТОРМОЗНОЙ КЛАПАН МОСТ¤ КОЛЕСА И СИСТЕМАУПРАВЛЕНИЯ ПОВОРОТОМ

|$0

20G-68-11131

BRAKE VALVE ASS'Y

|$1

20G-68-11130

BRAKE VALVE ASS'Y

|$3

20G-68-18250

TREADLE ASS'Y

1

20G-68-19160

TREADLE

2

20G-68-19210

ROLLER

3

20G-68-19181

PIN

3

20G-68-19180

PIN

4

20G-68-19190

PIN,COTTER

5

PIN,COTTER

6

PIPE

7

SCREW,SET

8

NUT

9

20G-68-19130

PLATE

10

20G-68-19141

PLUNGER

10

20G-68-19140

PLUNGER

11

BOOT,PLUNGER (KIT)

12

20G-68-19170

COVER

13

BOLT AND WASHER

|$19

20G-68-19100

BASIC ASS'Y

14

BODY

15

FILTER,VENT (KIT)

|$22

20G-68-18100

VALVE ASS'Y

16

RETAINER

17

SPRING,VALVE (KIT)

18

20G-68-18120

SPRING

19

VALVE

20

O-RING (KIT)

21

SEAT,EX (KIT)

22

O-RING (KIT)

23

DIAPHRAGM (KIT)

24

WASHER

25

20G-68-18170

SCREW AND WASHER

26

WASHER

27

20G-68-18180

RING,SNAP

28

SPRING (KIT)

|$36

20G-68-19120

PISTON ASS'Y

29

PISTON

30

20G-68-18210

SCREW

31

WASHER

32

SEAT,SPRING

33

RUBBER (KIT)

34

O-RING (KIT)

35

SPACER

36

SCREW

KIT

20G-68-18240

REPAIR KIT,BRAKE VALVE

|$46

BOOT,PLUNGER

|$47

FILTER,VENT

|$48

SPRING,VALVE

|$49

VALVE

|$50

O-RING

|$51

O-RING

|$52

DIAPHRAGM

|$53

SPRING

|$54

RUBBER

|$55

O-RING
