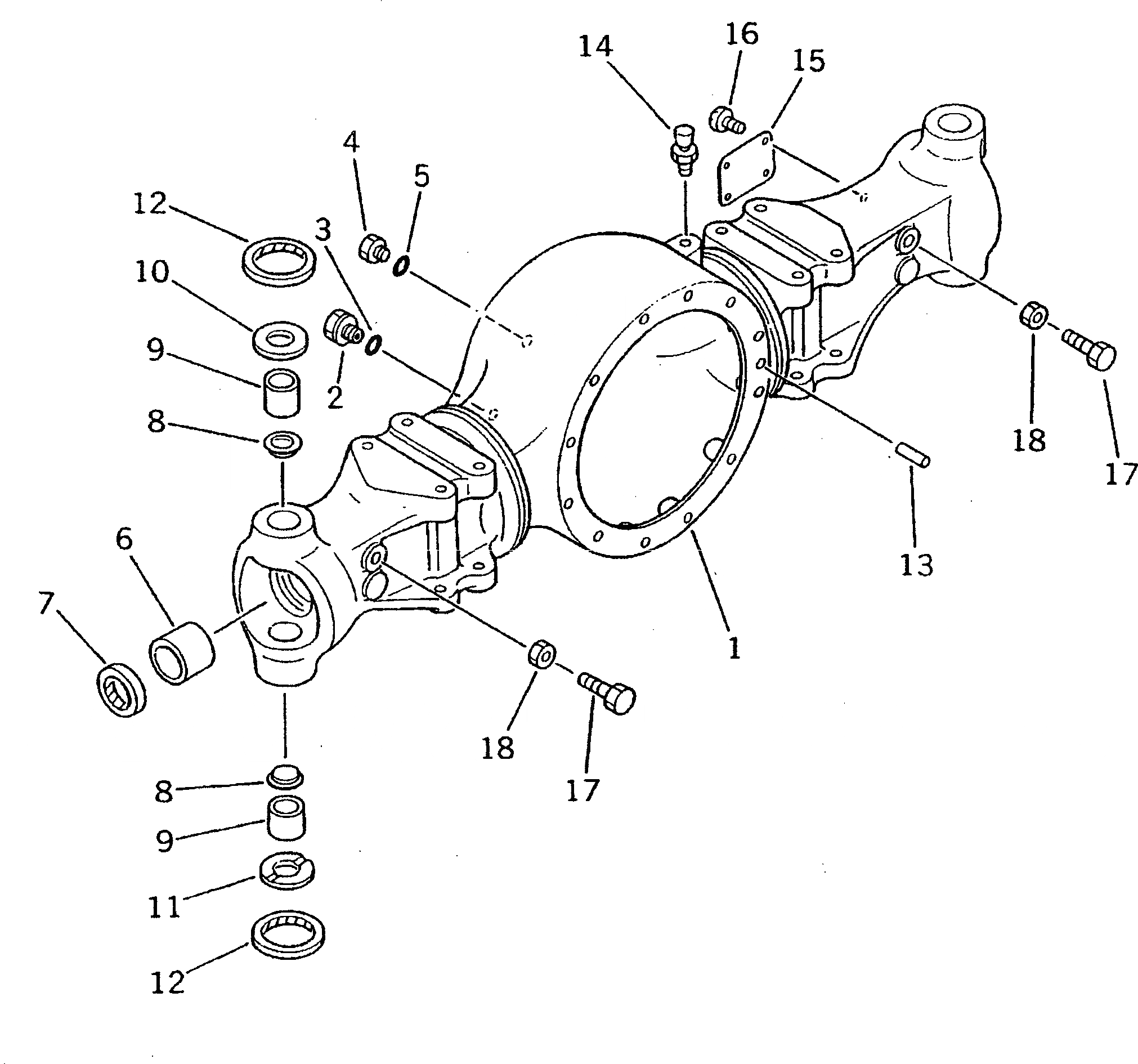

Запчасти Komatsu PW150-1 ПЕРЕДНИЙ МОСТ (КОЖУХ МОСТА) МОСТ¤ КОЛЕСА И СИСТЕМАУПРАВЛЕНИЯ ПОВОРОТОМ

|$0

20G-22-20004

FRONT AXLE ASS'Y

|$2

20G-22-20003

FRONT AXLE ASS'Y

|$6

20G-22-20002

FRONT AXLE ASS'Y

|$8

20G-22-20101

FRONT AXLE ASS'Y,(FOR NON ASBESTOS)

|$10

20G-22-20100

FRONT AXLE ASS'Y,(FOR NON ASBESTOS)

1

20G-22-23102

HOUSING,FRONT

1

20G-22-23101

HOUSING,FRONT

2

07044-12412

PLUG

3

07002-02434

O-RING

4

176-76-67150

PLUG

4

07040-12414

PLUG

5

07002-02434

O-RING

6

20G-22-12570

BUSHING

7

20G-22-12590

SEAL,OIL

8

22X-23-23780

PLUG

9

22X-22-13450

BUSHING

10

22X-23-23470

WASHER

11

22X-23-23480

WASHER

12

22X-23-23790

SEAL

13

04020-01434

PIN,DOWEL

14

07030-01030

BREATHER

15

815-02-10110

PLATE, NAME

15

22X-22-13171

PLATE, NAME,(LIMITED SUPPLY)

16

04418-03060

SCREW

17

20G-22-23160

BOLT,STOPPER

17

20G-22-23151

BOLT,STOPPER

17

20G-22-23160

BOLT,STOPPER (FOR NON ASBESTOS)

17

20G-22-23151

BOLT,STOPPER (FOR NON ASBESTOS)

18

20G-22-23250

SPACER, 23MM

18

20G-22-23260

SPACER, 26MM

18

20G-22-23220

SPACER, 29MM

18

20G-22-23230

SPACER, 32MM

18

20G-22-23170

SPACER, 26MM

18

20G-22-23180

SPACER, 29MM

18

20G-22-23190

SPACER, 32MM

18

01580-02016

NUT

18

20G-22-23250

SPACER, 23MM,(FOR NON ASBESTOS)

18

20G-22-23260

SPACER, 26MM,(FOR NON ASBESTOS)

18

20G-22-23220

SPACER, 29MM,(FOR NON ASBESTOS)

18

20G-22-23230

SPACER, 32MM,(FOR NON ASBESTOS)

18

20G-22-23170

SPACER, 26MM,(FOR NON ASBESTOS)

18

20G-22-23180

SPACER, 29MM,(FOR NON ASBESTOS)

18

20G-22-23190

SPACER, 32MM,(FOR NON ASBESTOS)

18

01580-02016

NUT,(FOR NON ASBESTOS)
