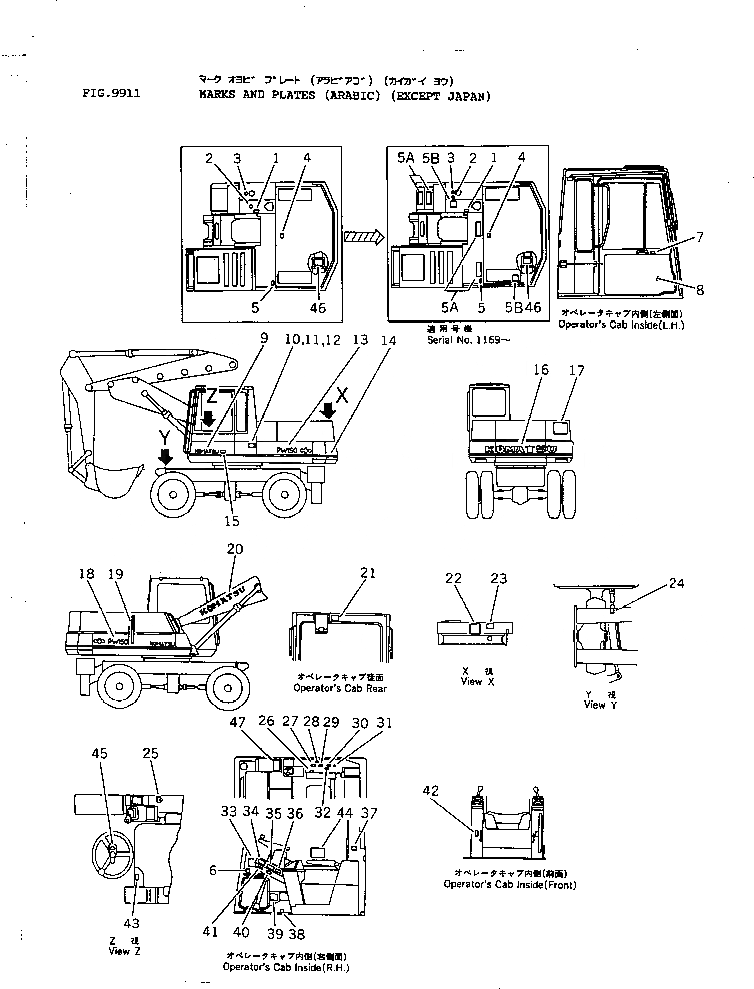

Запчасти Komatsu PW150-1 МАРКИРОВКА (АРАБСК.) (КРОМЕ ЯПОН.) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09669-00003

PLATE, CAUTION,HYDRAULIC MOUTH

2

09669-00002

PLATE, CAUTION,FUEL MOUTH

3

09653-00200

PLATE, SAFETY,HYDRAULIC TANK CAP

4

09667-00200

PLATE, SAFETY,ENGINE COVER

5

09152-00200

PLATE, SAFETY,AIR RESERVOIR

5A

154-54-23260

SEAT,NONSKID

5B

125-54-33451

SHEET,NONSKID

6

205-00-63450

PLATE, CAUTION,WIPER MOTOR CONNECTOR

7

205-00-71340

PLATE, OPERATING,DOOR LOCK

8

20G-54-12420

COVER,DOOR

8

20G-54-12410

PAD,DOOR

9

205-00-76220

PLATE, MARK,KOMATSU

10

20G-00-12450

PLATE, NAME,PW150

11

205-00-71540

SCREW

11

01220-60408

SCREW

12

01601-20410

WASHER,SPRING

13

20G-00-11111

PLATE,PW150

14

142-54-16170

STRIPE,LINE

15

205-00-63770

PLATE,RUBBER, GUARD

16

203-00-41390

PLATE, MARK,KOMATSU

17

09133-00200

PLATE, SAFETY,KEEP OUT OF TURNING AREA

18

20G-00-11121

PLATE,PW150

19

20G-00-12420

PLATE,FUEL LEVEL GAUGE

20

203-00-41420

PLATE, MARK,KOMATSU

21

205-00-63440

PLATE,AUTOMATIC LOCK

22

09650-02103

PLATE, INSTRUCTION,RADIATOR LEVEL

23

09668-00200

PLATE, SAFETY,RADIATOR CAP

24

20D-00-12720

PLATE, CAUTION,REPLACE STEERING HOSE

25

09683-02060

PLATE, OPERATING,STARTING SWITCH

26

20G-00-11830

PLATE, OPERATING

27

09685-00002

PLATE, OPERATING,WORK EQUIPMENT

28

20G-00-11850

PLATE, OPERATING,SUSPENSION LOCK

29

20G-00-11870

PLATE, OPERATING,SYMBOL, SERVICE BRAKE

30

20G-00-11860

PLATE, OPERATING,SYMBOL,PARKING BRAKE

31

20G-00-12430

PLATE,SWING BRAKE

32

362-54-17320

PLATE, OPERATING,SYMBOL, FUEL CONTROL LEVER

33

20G-00-11720

PLATE, OPERATING,STEERING,TRAVEL,WORK EQUIPMENT

34

205-00-63570

PLATE, CAUTION,CYLINDER AIR VENT VALVE

35

20G-00-12470

PLATE, CAUTION

36

09173-00200

PLATE, SAFETY,INSPECTION

37

09131-00200

PLATE, SAFETY,SWING LOCK LEVER

38

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

39

205-00-63740

PLATE, CAUTION,WASHER TANK

40

09651-00200

PLATE, SAFETY,BEFORE OPERATING

41

205-00-63480

PLATE, CAUTION,COLD WEATHER

42

09685-00002

PLATE, OPERATING,LOCK SWITCH

43

203-00-41180

PLATE, OPERATING,SYMBOL, HOOD OPEN

44

20G-00-11490

PLATE,BOOM HOOD CONNECT

45

20G-00-12440

PLATE, OPERATING,FOR/REVERSE

46

09641-02161

PLATE, INSTRUCTION,AIR CLEANER

47

20G-00-12480

PLATE, OPERATING,FRONT PANEL
