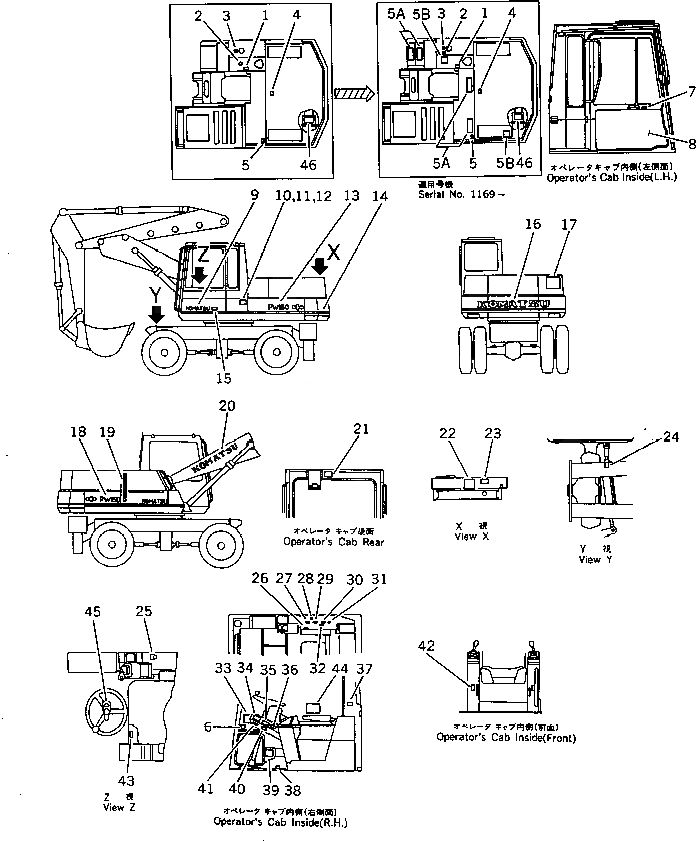

Запчасти Komatsu PW150-1 МАРКИРОВКА (ФРАНЦИЯ) (КРОМЕ ЯПОН.)(№-9) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09669-00003

PLATE, CAUTION,HYDRAULIC MOUTH

2

09669-00002

PLATE, CAUTION,FUEL MOUTH

3

09653-05000

PLATE, SAFETY,HYDRAULIC TANK CAP

4

09667-05000

PLATE, SAFETY,ENGINE COVER

5

09152-05000

PLATE, SAFETY,AIR RESERVOIR

5A

154-54-23260

SEAT,NONSKID

5B

125-54-33451

SHEET,NONSKID

6

205-00-63910

PLATE,WIPER MOTOR CONNECTOR

7

205-00-71340

PLATE, OPERATING,DOOR LOCK

8

20G-54-12370

COVER,DOOR

8

20G-54-12360

PAD,DOOR

9

09690-50500

PLATE, MARK,KOMATSU

10

09602-52643

PLATE, NAME,PW150

11

205-00-71540

SCREW

11

01220-60408

SCREW

12

01601-20410

WASHER,SPRING

13

20G-00-11111

PLATE,PW150

14

142-54-16170

STRIPE,LINE

15

205-00-63770

PLATE,RUBBER, GUARD

16

203-00-41131

PLATE, MARK,KOMATSU

17

09133-05000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

18

20G-00-11121

PLATE,PW150

19

20G-00-11261

PLATE,FUEL LEVEL GAUGE

20

09690-41250

PLATE, MARK,KOMATSU

21

205-00-63890

PLATE,AUTOMATIC LOCK

22

09650-51103

PLATE, INSTRUCTION,RADIATOR LEVEL

23

09668-05000

PLATE, SAFETY,RADIATOR CAP

24

20G-00-12220

PLATE, SAFETY,REPLACE STEERING HOSE

25

09683-51060

PLATE, OPERATING,STARTING SWITCH

26

20G-00-11830

PLATE, OPERATING

27

09685-00002

PLATE, OPERATING,WORK EQUIPMENT

28

20G-00-11850

PLATE, OPERATING,SUSPENSION LOCK

29

20G-00-11870

PLATE, OPERATING,SYMBOL, SERVICE BRAKE

30

20G-00-11860

PLATE, OPERATING,SYMBOL,PARKING BRAKE

31

20G-00-12280

PLATE,SWING BRAKE

32

362-54-17320

PLATE, OPERATING,SYMBOL, FUEL CONTROL LEVER

33

20G-00-11720

PLATE, OPERATING,STEERING,TRAVEL,WORK EQUIPMENT

34

205-00-63940

PLATE,CYLINDER AIR VENT VALVE

35

20G-00-12250

PLATE, CAUTION

36

09173-05000

PLATE, SAFETY,INSPECTION

37

09131-05000

PLATE, SAFETY,SWING LOCK LEVER

38

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

39

205-00-63990

PLATE,WASHER TANK

40

09651-05000

PLATE, SAFETY,BEFORE OPERATING

41

205-00-63870

PLATE, CAUTION,COLD WEATHER

42

09685-00002

PLATE, OPERATING,LOCK SWITCH

43

203-00-41180

PLATE, OPERATING,SYMBOL, HOOD OPEN

44

20G-00-11490

PLATE,BOOM HOOD CONNECT

45

20G-00-12290

PLATE, OPERATING,FOR/REVERSE

46

09641-20261

PLATE, INSTRUCTION,AIR CLEANER

47

20G-00-12270

PLATE, OPERATING,FRONT PANEL
