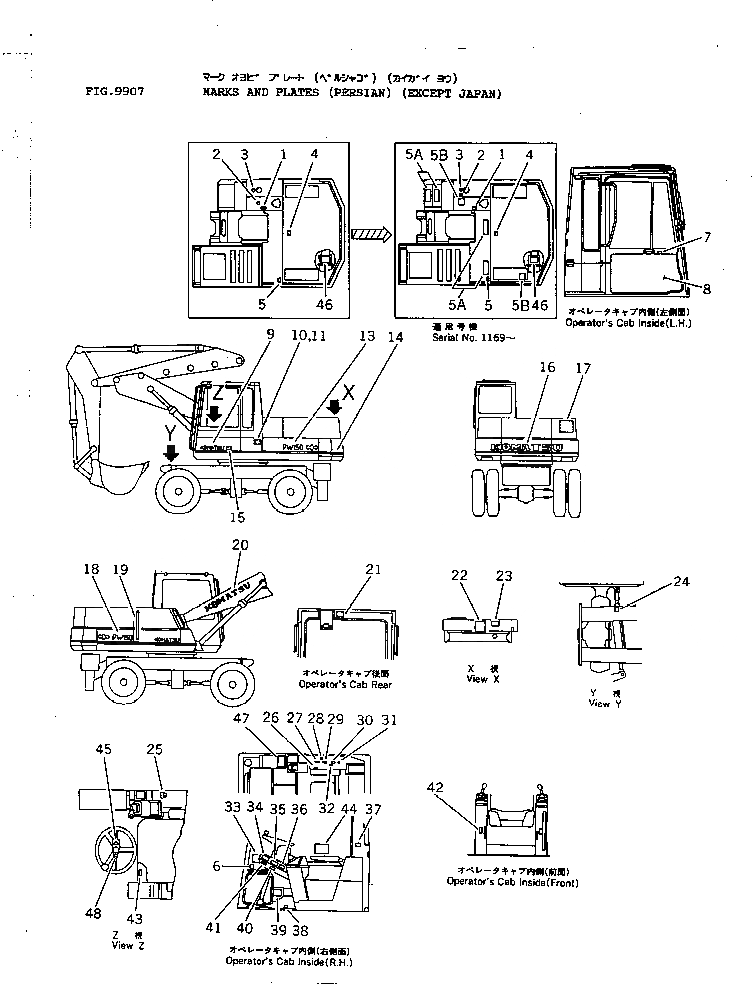

Запчасти Komatsu PW150-1 МАРКИРОВКА (ИРАН) (КРОМЕ ЯПОН.) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
1
09669-00003
PLATE, CAUTION,HYDRAULIC MOUTH
2
09669-00002
PLATE, CAUTION,FUEL MOUTH
3
09653-00400
PLATE, SAFETY,HYDRAULIC TANK CAP
4
09667-04000
PLATE, SAFETY,ENGINE COVER
5
09152-04000
PLATE, SAFETY,AIR RESERVOIR
5A
154-54-23260
SEAT,NONSKID
5B
125-54-33451
SHEET,NONSKID
6
205-00-66950
PLATE,WIPER MOTOR CONNECTOR
7
205-00-71340
PLATE, OPERATING,DOOR LOCK
8
20G-54-12610
COVER,DOOR
9
205-00-76220
PLATE, MARK,KOMATSU
10
09602-04643
PLATE, NAME,PW150
11
205-00-71540
SCREW
13
20G-00-11111
PLATE,PW150
14
142-54-16170
STRIPE,LINE
15
205-00-63770
PLATE,RUBBER, GUARD
16
203-00-41390
PLATE, MARK,KOMATSU
17
09133-00400
PLATE, SAFETY,KEEP OUT OF TURNING AREA
18
20G-00-11121
PLATE,PW150
19
20G-00-12920
PLATE,FUEL LEVEL GAUGE
20
203-00-41420
PLATE, MARK,KOMATSU
21
205-00-66960
PLATE,AUTOMATIC LOCK
22
09650-04104
PLATE, INSTRUCTION,RADIATOR LEVEL
23
09668-00400
PLATE, SAFETY,RADIATOR CAP
24
20G-00-12910
PLATE, SAFETY,REPLACE STEERING HOSE
25
09683-04050
PLATE, OPERATING,STARTING SWITCH
26
20G-00-11830
PLATE, OPERATING
27
09685-00002
PLATE, OPERATING,WORK EQUIPMENT
28
20G-00-11850
PLATE, OPERATING,SUSPENSION LOCK
29
20G-00-11870
PLATE, OPERATING,SYMBOL, SERVICE BRAKE
30
20G-00-11860
PLATE, OPERATING,SYMBOL,PARKING BRAKE
31
20G-00-12860
PLATE,SWING BRAKE
32
362-54-17320
PLATE, OPERATING,SYMBOL, FUEL CONTROL LEVER
33
20G-00-11720
PLATE, OPERATING,STEERING,TRAVEL,WORK EQUIPMENT
34
205-00-66930
PLATE,CYLINDER AIR VENT VALVE
35
20G-00-12890
PLATE, CAUTION
36
09173-00400
PLATE, SAFETY,INSPECTION
37
09131-00400
PLATE, SAFETY,SWING LOCK LEVER
38
09685-00002
PLATE, OPERATING,SWING LOCK LEVER
39
09699-00400
PLATE, CAUTION,WASHER TANK
40
09651-00400
PLATE, SAFETY,BEFORE OPERATING
41
205-00-66910
PLATE,COLD WEATHER
42
09685-00002
PLATE, OPERATING,LOCK SWITCH
43
203-00-41180
PLATE, OPERATING,SYMBOL, HOOD OPEN
44
20G-00-11490
PLATE,BOOM HOOD CONNECT
45
20G-00-12870
PLATE, OPERATING,FOR/REVERSE
46
09641-04161
PLATE, INSTRUCTION,AIR CLEANER
47
20G-00-12850
PLATE, OPERATING,FRONT PANEL
48
20G-00-12880
PLATE,TURN SIGNAL
Выбрано товаров: 49
