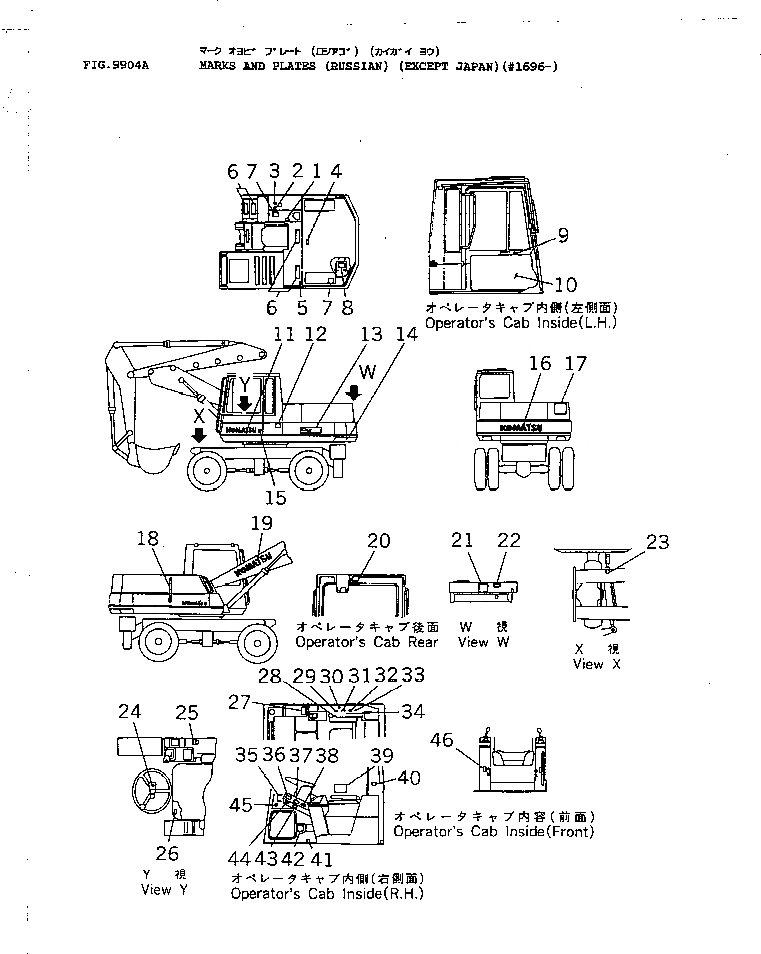

Запчасти Komatsu PW150-1 МАРКИРОВКА (РОССИЯ) (КРОМЕ ЯПОН.)(№9-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09669-00003

PLATE, CAUTION,HYDRAULIC MOUTH

2

09669-00002

PLATE, CAUTION,FUEL MOUTH

3

09653-04001

PLATE, SAFETY,HYDRAULIC TANK CAP

4

09667-04000

PLATE, SAFETY,ENGINE COVER

5

09152-04000

PLATE, SAFETY,AIR RESERVOIR

6

154-54-23260

SEAT,NONSKID

7

125-54-33451

SHEET,NONSKID

8

09641-40161

PLATE, INSTRUCTION,AIR CLEANER

9

205-00-71340

PLATE, OPERATING,DOOR LOCK

10

20G-54-12551

COVER,DOOR

11

09690-C0315

PLATE, MARK,KOMATSU

12

09602-41643

PLATE, NAME,PW150

12

205-00-71540

SCREW

13

20G-00-11112

PLATE,PW150

14

142-54-16170

STRIPE,LINE

15

205-00-63770

PLATE,RUBBER, GUARD

16

09690-C0710

PLATE, MARK,KOMATSU

17

09133-04000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

18

20G-00-11261

PLATE,FUEL LEVEL GAUGE

19

09690-B0560

PLATE, MARK,KOMATSU

20

201-00-51380

PLATE, CAUTION,AUTOMATIC LOCK

21

09650-42104

PLATE, INSTRUCTION,RADIATOR LEVEL

22

09668-04000

PLATE, SAFETY,RADIATOR CAP

23

20D-00-41650

PLATE, CAUTION,REPLACE STEERING HOSE

24

20D-00-41660

PLATE, OPERATING,FOR/REVERSE

25

09683-40060

PLATE, OPERATING,STARTING SWITCH

26

203-00-41180

PLATE, OPERATING,SYMBOL, HOOD OPEN

27

20G-00-12720

PLATE, OPERATING,FRONT PANEL

28

20D-00-41640

PLATE, OPERATING

29

09685-00002

PLATE, OPERATING,WORK EQUIPMENT

30

20G-00-11850

PLATE, OPERATING,SUSPENSION LOCK

31

20G-00-11870

PLATE, OPERATING,SYMBOL, SERVICE BRAKE

32

20G-00-11860

PLATE, OPERATING,SYMBOL,PARKING BRAKE

33

20G-00-12730

PLATE,SWING BRAKE

34

362-54-17320

PLATE, OPERATING,SYMBOL, FUEL CONTROL LEVER

35

20G-00-11720

PLATE, OPERATING,STEERING,TRAVEL,WORK EQUIPMENT

36

201-00-51360

PLATE, CAUTION,CYLINDER AIR VENT VALVE

37

20D-00-41710

PLATE, CAUTION

38

09173-04000

PLATE, SAFETY,INSPECTION

39

20G-00-11490

PLATE,BOOM HOOD CONNECT

40

09131-04000

PLATE, SAFETY,SWING LOCK LEVER

41

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

42

20D-00-41630

PLATE, CAUTION,WASHER TANK

43

09651-04000

PLATE, SAFETY,BEFORE OPERATING

44

201-00-51350

PLATE, CAUTION,COLD WEATHER

45

201-00-51370

PLATE, CAUTION,WIPER MOTOR CONNECTOR

46

09685-00002

PLATE, OPERATING,LOCK SWITCH
