Запчасти Komatsu PW150-1 МАРКИРОВКА (РОССИЯ) (КРОМЕ ЯПОН.)(№-9) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

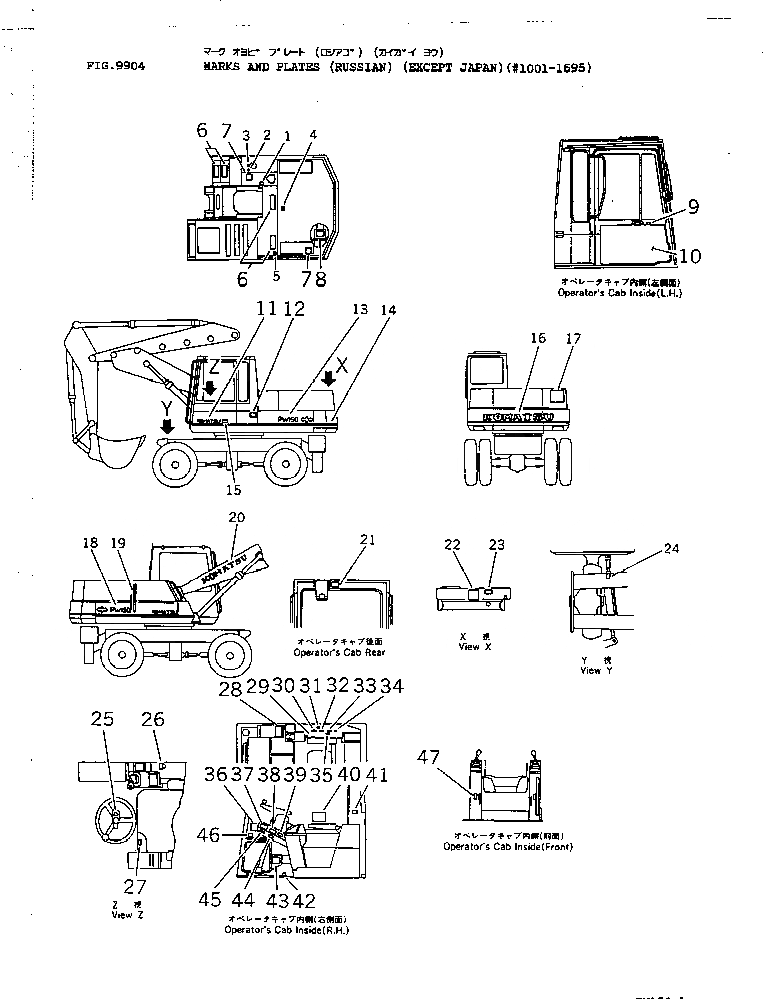

Схема запчастей Komatsu PW150-1 - МАРКИРОВКА (РОССИЯ) (КРОМЕ ЯПОН.)(№-9) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

09669-00003

PLATE, CAUTION,HYDRAULIC MOUTH

2

09669-00002

PLATE, CAUTION,FUEL MOUTH

3

09653-04001

PLATE, SAFETY,HYDRAULIC TANK CAP

4

09667-04000

PLATE, SAFETY,ENGINE COVER

5

09152-04000

PLATE, SAFETY,AIR RESERVOIR

6

154-54-23260

SEAT,NONSKID

7

125-54-33451

SHEET,NONSKID

8

09641-40161

PLATE, INSTRUCTION,AIR CLEANER

9

205-00-71340

PLATE, OPERATING,DOOR LOCK

10

20G-54-12551

COVER,DOOR

11

09690-50500

PLATE, MARK,KOMATSU

12

09602-41643

PLATE, NAME,PW150

12

205-00-71540

SCREW

13

20G-00-11111

PLATE,PW150

14

142-54-16170

STRIPE,LINE

15

205-00-63770

PLATE,RUBBER, GUARD

16

203-00-41131

PLATE, MARK,KOMATSU

17

09133-04000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

18

20G-00-11121

PLATE,PW150

19

20G-00-11261

PLATE,FUEL LEVEL GAUGE

20

09690-41250

PLATE, MARK,KOMATSU

21

201-00-51380

PLATE, CAUTION,AUTOMATIC LOCK

22

09650-42104

PLATE, INSTRUCTION,RADIATOR LEVEL

23

09668-04000

PLATE, SAFETY,RADIATOR CAP

24

20D-00-41650

PLATE, CAUTION,REPLACE STEERING HOSE

25

20D-00-41660

PLATE, OPERATING,FOR/REVERSE

26

09683-40060

PLATE, OPERATING,STARTING SWITCH

27

203-00-41180

PLATE, OPERATING,SYMBOL, HOOD OPEN

28

20G-00-12720

PLATE, OPERATING,FRONT PANEL

29

20D-00-41640

PLATE, OPERATING

30

09685-00002

PLATE, OPERATING,WORK EQUIPMENT

31

20G-00-11850

PLATE, OPERATING,SUSPENSION LOCK

32

20G-00-11870

PLATE, OPERATING,SYMBOL, SERVICE BRAKE

33

20G-00-11860

PLATE, OPERATING,SYMBOL,PARKING BRAKE

34

20G-00-12730

PLATE,SWING BRAKE

35

362-54-17320

PLATE, OPERATING,SYMBOL, FUEL CONTROL LEVER

36

20G-00-11720

PLATE, OPERATING,STEERING,TRAVEL,WORK EQUIPMENT

37

201-00-51360

PLATE, CAUTION,CYLINDER AIR VENT VALVE

38

20D-00-41710

PLATE, CAUTION

39

09173-04000

PLATE, SAFETY,INSPECTION

40

20G-00-11490

PLATE,BOOM HOOD CONNECT

41

09131-04000

PLATE, SAFETY,SWING LOCK LEVER

42

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

43

20D-00-41630

PLATE, CAUTION,WASHER TANK

44

09651-04000

PLATE, SAFETY,BEFORE OPERATING

45

201-00-51350

PLATE, CAUTION,COLD WEATHER

46

201-00-51370

PLATE, CAUTION,WIPER MOTOR CONNECTOR

47

09685-00002

PLATE, OPERATING,LOCK SWITCH

Выбрано товаров: 48
