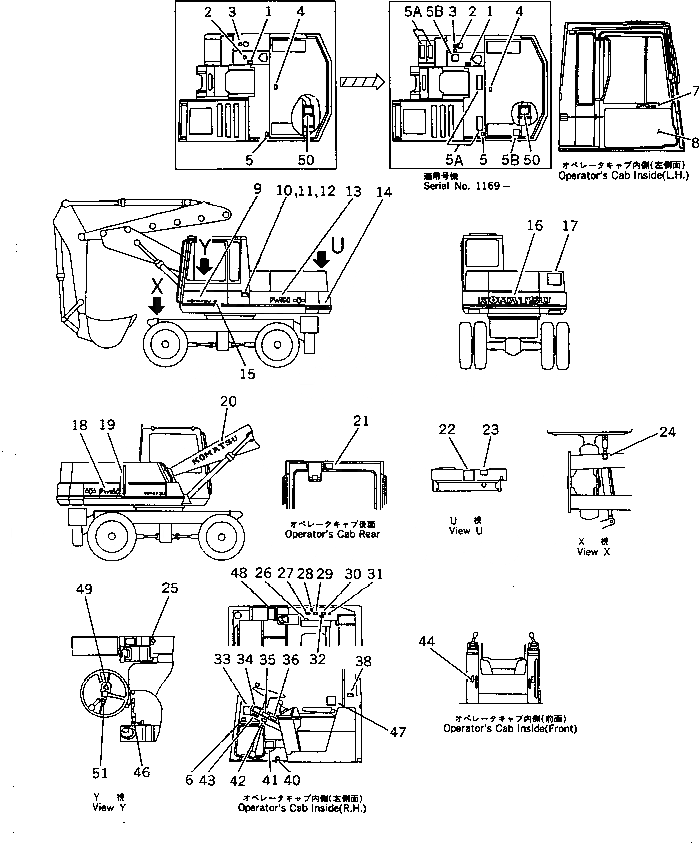

Запчасти Komatsu PW150-1 МАРКИРОВКА (КИТАЙ) (КРОМЕ ЯПОН.)(№-9) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09669-00003

PLATE, CAUTION,HYDRAULIC MOUTH

2

09669-00002

PLATE, CAUTION,FUEL MOUTH

3

09653-09000

PLATE, SAFETY,HYDRAULIC TANK CAP

4

09667-09000

PLATE, SAFETY,ENGINE COVER

5

09152-09000

PLATE, SAFETY,AIR RESERVOIR

5A

154-54-23260

SEAT,NONSKID

5B

125-54-33451

SHEET,NONSKID

6

20D-00-12540

PLATE,WIPER MOTOR CONNECTOR

7

205-00-71340

PLATE, OPERATING,DOOR LOCK

8

20G-54-12510

PAD,DOOR

9

09690-50500

PLATE, MARK,KOMATSU

10

09602-91643

PLATE, NAME,PW150

11

205-00-71540

SCREW

11

01220-60408

SCREW

12

01601-20410

WASHER,SPRING

13

20G-00-11111

PLATE,PW150

14

142-54-16170

STRIPE,LINE

15

205-00-63770

PLATE,RUBBER, GUARD

16

203-00-41131

PLATE, MARK,KOMATSU

17

09133-09000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

18

20G-00-11121

PLATE,PW150

19

20G-00-11261

PLATE,FUEL LEVEL GAUGE

20

09690-41250

PLATE, MARK,KOMATSU

21

20D-00-12530

PLATE,AUTOMATIC ROCK

22

09650-90103

PLATE, INSTRUCTION,RADIATOR LEVEL

23

09668-09000

PLATE, SAFETY,RADIATOR CAP

24

20D-00-12570

PLATE,REPLACE STEERING HOSE

25

09683-90060

PLATE, OPERATING,STARTING SWITCH

26

20G-00-11830

PLATE, OPERATING

27

09685-00002

PLATE, OPERATING,WORK EQUIPMENT

28

20G-00-11850

PLATE, OPERATING,SUSPENSION LOCK

29

20G-00-11870

PLATE, OPERATING,SYMBOL, SERVICE BRAKE

30

20G-00-11860

PLATE, OPERATING,SYMBOL,PARKING BRAKE

31

20G-00-12630

PLATE,SWING BRAKE

32

362-54-17320

PLATE, OPERATING,FUEL CONTROL LEVER

33

20G-00-11720

PLATE, OPERATING,STEERING TRAVEL,WORK EQUIPMENT

34

20D-00-12660

PLATE,CYLINDER AIR VENT VALVE

35

20G-00-12650

PLATE, CAUTION

36

09173-09000

PLATE, SAFETY,INSPECTION

38

09131-09000

PLATE, SAFETY,SWING LOCK LEVER

40

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

41

09699-09000

PLATE, CAUTION,WASHER TANK

42

09651-09000

PLATE, SAFETY,BEFORE OPERATING

43

20D-00-12590

PLATE, CAUTION,COLD WEATHER

44

09685-00002

PLATE, OPERATING,LOCK SWITCH

46

203-00-41180

PLATE, OPERATING,SYMBOL, HOOD OPEN

47

20G-00-11490

PLATE,BOOM HOOD CONNECT

48

20G-00-12670

PLATE, OPERATING,FRONT PANEL

49

20G-00-12640

PLATE, OPERATING,FOR/REVERSE

50

09641-60161

PLATE, INSTRUCTION,AIR CLEANER

51

20G-00-12660

PLATE,TURN SIGNAL
