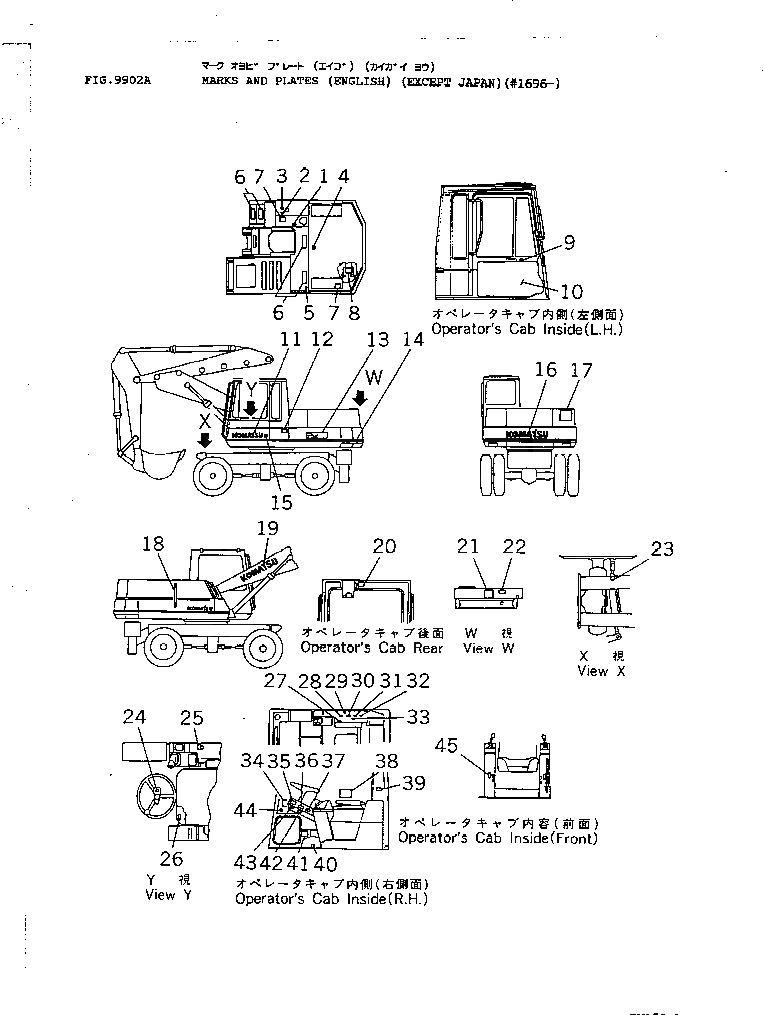

Запчасти Komatsu PW150-1 МАРКИРОВКА (АНГЛ.) (КРОМЕ ЯПОН.)(№9-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09669-00003

PLATE, CAUTION,HYDRAULIC MOUTH

2

09669-00002

PLATE, CAUTION,FUEL MOUTH

3

09653-03000

PLATE, SAFETY,HYDRAULIC TANK CAP

4

09667-03000

PLATE, SAFETY,ENGINE COVER

5

09152-03000

PLATE, SAFETY,AIR RESERVOIR

6

154-54-23260

SEAT,NONSKID

7

125-54-33451

SHEET,NONSKID

8

09641-30161

PLATE, INSTRUCTION,AIR CLEANER

9

205-00-71340

PLATE, OPERATING,DOOR LOCK

10

20G-54-12270

COVER,DOOR

11

09690-C0315

PLATE, MARK,KOMATSU

12

09602-01643

PLATE, NAME,PW150

12

205-00-71540

SCREW

13

20G-00-11112

PLATE,PW150

14

142-54-16170

STRIPE,LINE

15

205-00-63770

PLATE,RUBBER, GUARD

16

09690-C0710

PLATE, MARK,KOMATSU

17

09133-03000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

18

20G-00-11261

PLATE,FUEL LEVEL GAUGE

19

09690-B0560

PLATE, MARK,KOMATSU

20

205-00-63350

PLATE, CAUTION,AUTOMATIC LOCK

21

09650-30103

PLATE, INSTRUCTION,RADIATOR LEVEL

22

09668-03000

PLATE, SAFETY,RADIATOR CAP

23

20B-98-29180

PLATE, SAFETY,REPLACE STEERING HOSE

24

20G-06-12380

PLATE, OPERATING,FOR/REVERSE

25

09683-30060

PLATE, OPERATING,STARTING SWITCH

26

203-00-41180

PLATE, OPERATING,SYMBOL, HOOD OPEN

27

20G-00-11830

PLATE, OPERATING

28

09685-00002

PLATE, OPERATING,WORK EQUIPMENT

29

20G-00-11850

PLATE, OPERATING,SUSPENSION LOCK

30

20G-00-11870

PLATE, OPERATING,SYMBOL, SERVICE BRAKE

31

20G-00-11860

PLATE, OPERATING,SYMBOL,PARKING BRAKE

32

20G-00-11480

PLATE,SWING BRAKE

33

362-54-17320

PLATE, OPERATING,SYMBOL, FUEL CONTROL LEVER

34

20G-00-11720

PLATE, OPERATING,STEERING,TRAVEL,WORK EQUIPMENT

35

205-00-63550

PLATE, CAUTION,CYLINDER AIR VENT VALVE

36

20G-00-11450

PLATE, CAUTION

37

09173-03000

PLATE, SAFETY,INSPECTION

38

20G-00-11490

PLATE,BOOM HOOD CONNECT

39

09131-03000

PLATE, SAFETY,SWING LOCK LEVER

40

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

41

205-00-63750

PLATE, CAUTION,WASHER TANK

42

09651-03000

PLATE, SAFETY,BEFORE OPERATING

43

205-00-63390

PLATE, CAUTION,COLD WEATHER

44

205-00-63360

PLATE, CAUTION,WIPER MOTOR CONNECTOR

45

09685-00002

PLATE, OPERATING,LOCK SWITCH
