Запчасти Komatsu PW150-1 ГИДРАВЛ ОБОРУД-Е КОМПОНЕНТЫ (КОМПОНЕНТЫ (ОБСЛУЖИВ-Е)) (ДЛЯ ЯПОН. И REGULATION OF SWEDEN) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

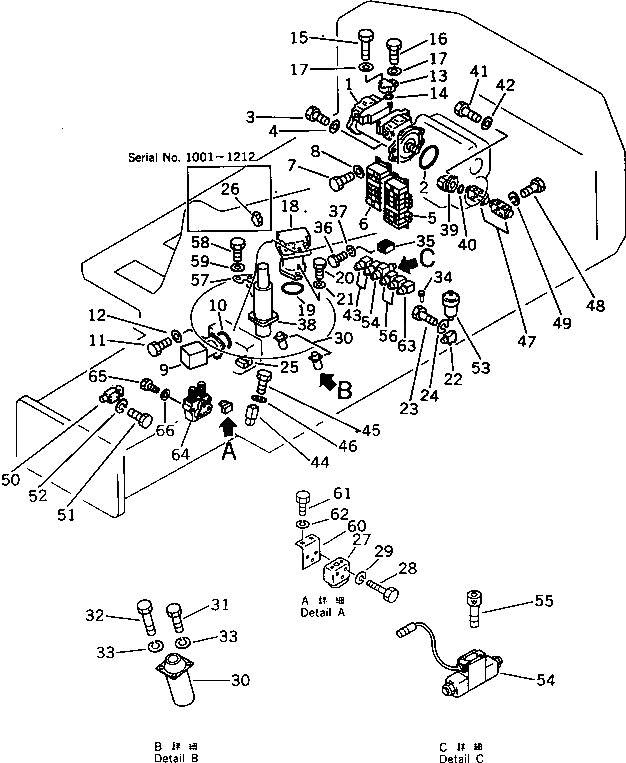

Схема запчастей Komatsu PW150-1 - ГИДРАВЛ ОБОРУД-Е КОМПОНЕНТЫ (КОМПОНЕНТЫ (ОБСЛУЖИВ-Е)) (ДЛЯ ЯПОН. И REGULATION OF SWEDEN) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

708-23-01021

PUMP ASS'Y,(HPV55+55)

1

708-23-01020

PUMP ASS'Y,(HPV55+55)

1

708-23-10201

PUMP ASS'Y,(HPV55+55)

1

708-23-10200

PUMP ASS'Y,(HPV55+55)

2

07000-05220

O-RING

3

01010-51445

BOLT

4

01643-31445

WASHER

5

700-87-11002

CONTROL VALVE ASS'Y,L.H.

5

700-87-11001

CONTROL VALVE ASS'Y,L.H.

5

700-87-11000

CONTROL VALVE ASS'Y,L.H.

6

700-85-23003

CONTROL VALVE ASS'Y,R.H.

6

700-85-23002

CONTROL VALVE ASS'Y,R.H.

6

700-85-23001

CONTROL VALVE ASS'Y,R.H.

7

01010-51225

BOLT

8

01643-31232

WASHER

9

706-86-00201

TRAVEL MOTOR ASS'Y,(KMV105DT)

10

07000-02110

O-RING

11

01010-52090

BOLT

12

01643-32060

WASHER

13

706-75-78500

VALVE ASS'Y,SHUTTLE

14

07000-12010

O-RING

15

01010-50850

BOLT

16

01010-50825

BOLT

17

01643-30823

WASHER

18

706-75-11502

SWING MOTOR ASS'Y

18

706-75-11501

SWING MOTOR ASS'Y

18

706-75-11500

SWING MOTOR ASS'Y

19

07000-02110

O-RING

20

01010-52060

BOLT

21

01643-32060

WASHER

22

700-63-53000

RELIEF VALVE ASS'Y

23

01010-51065

BOLT

24

01602-21030

WASHER,SPRING

25

702-15-63000

VALVE ASS'Y

26

702-15-48000

VALVE ASS'Y

27

702-16-41000

VALVE ASS'Y

28

01010-50850

BOLT

29

01602-20825

WASHER,SPRING

30

702-16-51001

VALVE ASS'Y

30

702-16-51000

VALVE ASS'Y

31

01010-50816

BOLT

32

01010-50820

BOLT

33

01602-20825

WASHER,SPRING

34

702-19-11000

SHUTTLE VALVE ASS'Y

35

702-19-12000

CHECK VALVE ASS'Y

36

01010-51070

BOLT

37

01602-21030

WASHER,SPRING

38

703-10-43104

SWIVEL JOINT ASS'Y

38

703-10-43103

SWIVEL JOINT ASS'Y

38

703-10-43101

SWIVEL JOINT ASS'Y

39

705-11-26010

PUMP ASS'Y

40

07000-02085

O-RING

41

01010-51030

BOLT

42

01643-31032

WASHER

43

20G-60-12220

SOLENOID VALVE

43

203-60-41200

SOLENOID VALVE

44

20G-60-12180

VALVE ASS'Y

45

02010-70651

BOLT

46

01602-20929

WASHER,SPRING

47

20D-60-11900

CHECK VALVE ASS'Y

48

01010-50875

BOLT

49

01602-20825

WASHER,SPRING

50

20G-60-19130

VALVE,(FOR JAPAN AND SWEDEN)

50

20G-60-12110

VALVE ASS'Y,SUSPENSION LOCK(EXCEPT JAPAN)

51

01010-50880

BOLT

51

01010-50880

BOLT

52

01602-20825

WASHER,SPRING

52

01602-20825

WASHER,SPRING

53

205-60-71152

ACCUMULATOR

53

205-60-71150

ACCUMULATOR

54

22W-60-14202

VALVE ASS'Y

55

01252-40545

BOLT

56

22W-60-11801

VALVE ASS'Y,SOLENOID

57

20G-60-13110

STOPPER

58

01010-52055

BOLT

59

01643-32060

WASHER

60

20G-60-13120

BRACKET

61

01010-51020

BOLT

62

01602-21030

WASHER,SPRING

63

21K-60-12301

SOLENOID VALVE ASS'Y

64

20B-60-12300

VALVE,(FOR JAPAN AND SWEDEN)

65

01010-50860

BOLT,(FOR JAPAN AND SWEDEN)

66

01602-20825

WASHER,(FOR JAPAN AND SWEDEN)

Выбрано товаров: 83
