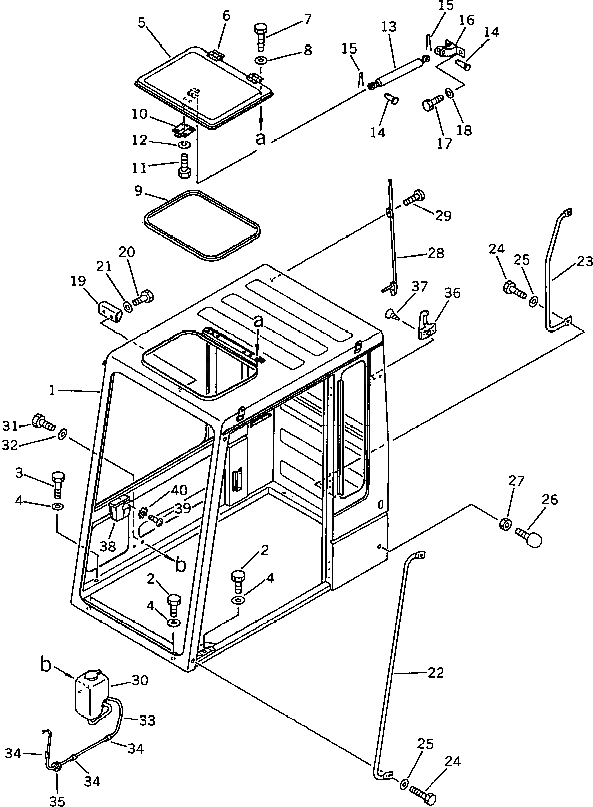

Запчасти Komatsu PW150-1 КАБИНА (/) (REGULATION OF SWEDEN) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|$0

20G-54-00081

OPERATOR'S CAB ASS'Y

|$2

20G-54-00080

OPERATOR'S CAB ASS'Y

1

20G-54-12170

CAB

2

01010-51245

BOLT

3

01010-51265

BOLT

4

01643-31232

WASHER

5

203-54-43410

COVER

7

01010-50612

BOLT

8

01643-30623

WASHER

9

203-54-43460

TRIM

10

205-54-66190

LOCK ASS'Y

11

01010-50616

BOLT

12

01643-30623

WASHER

13

205-54-63650

GAS SPRING ASS'Y

14

04205-10825

PIN

15

04050-12012

PIN,COTTER

16

203-54-43640

BRACKET

17

01010-50816

BOLT

18

01643-30823

WASHER

19

203-54-43490

BRACKET

20

01010-50616

BOLT

21

01643-30623

WASHER

22

203-54-43230

GRIP

23

203-54-43431

GRIP

24

01010-51025

BOLT

25

01643-31032

WASHER

26

09453-00002

STOPPER

27

01580-11210

NUT

28

205-06-62350

ANTENNA ASS'Y

29

01220-40420

SCREW

30

206-06-15230

TANK

31

01010-50612

BOLT

32

01643-30623

WASHER

33

205-06-71470

HOSE

34

205-54-72710

CLIP

35

201-54-22890

GROMMET

36

205-54-51250

HANGER

37

01381-10420

SCREW

38

201-54-23221

ASHTRAY

39

01370-00410

SCREW

40

01611-04045

WASHER,LOCK
