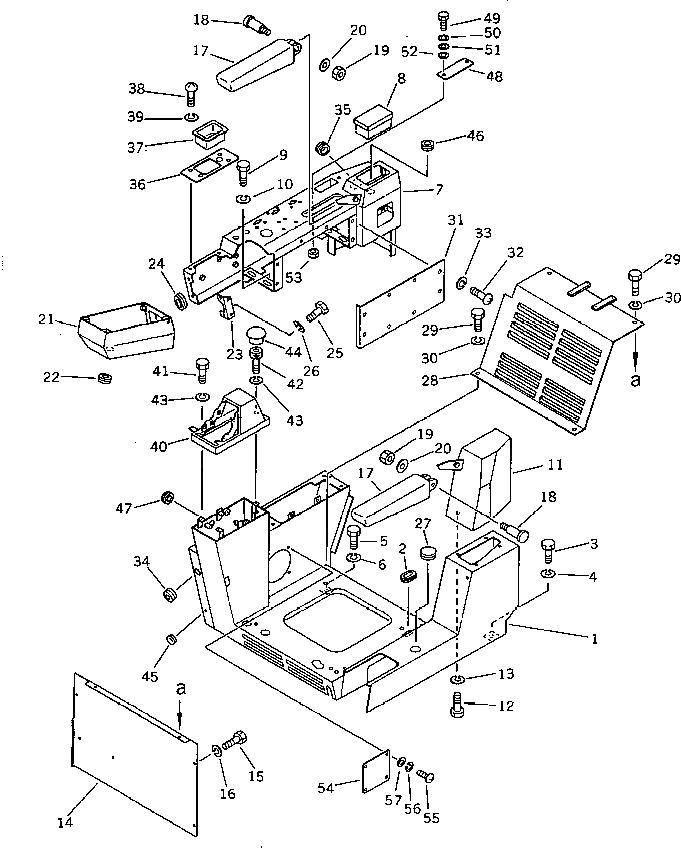

Запчасти Komatsu PW150-1 СИДЕНЬЕ КОРПУС (/) (REGULATIN OF SWEDEN) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20G-54-14610

BOX

2

144-06-12150

GROMMET

3

01010-51025

BOLT

4

01602-21030

WASHER,SPRING

5

01010-51225

BOLT

6

01602-21236

WASHER,SPRING

7

20G-54-14590

BOX,R.H.

8

20G-54-13270

COVER,FUSE

9

01010-50820

BOLT

10

01602-20825

WASHER,SPRING

11

20G-54-13131

COVER,R.H.

12

01010-51025

BOLT

13

01602-21030

WASHER,SPRING

14

20G-54-13261

PLATE

15

01010-50820

BOLT

16

01602-20825

WASHER,SPRING

17

20G-54-13170

REST,ARM

18

20G-54-13180

PIN

19

01580-01008

NUT

20

01643-31032

WASHER

21

20G-54-13310

COVER

22

08037-02512

GROMMET

23

20G-54-13320

PLATE

24

176-911-4160

GROMMET

25

01010-50612

BOLT

26

01602-20619

WASHER,SPRING

27

09415-03614

CAP

28

20G-54-14580

PLATE

29

01010-50816

BOLT

30

01602-20825

WASHER,SPRING

31

20G-54-13330

PLATE

32

01220-40816

SCREW

33

01602-20825

WASHER,SPRING

34

08037-02512

GROMMET

35

08037-03614

GROMMET

36

20G-54-13370

COVER

37

20G-54-13420

ASHTRAY

38

01220-40616

SCREW

39

01602-20825

WASHER,SPRING

40

20G-54-13360

COVER,R.H.

41

01010-50616

BOLT

42

01252-40612

BOLT

43

01602-20619

WASHER,SPRING

44

7861-21-1190

CAP

45

09415-00506

CAP

46

08037-02512

GROMMET

47

08037-01610

GROMMET

48

203-06-31160

PLATE

49

205-06-62170

BOLT

50

205-06-62180

WASHER

51

205-06-62190

WASHER

52

145-Z79-6630

WASHER

53

01580-10403

NUT

54

205-06-72181

COVER

55

01220-40410

SCREW

56

01601-20410

WASHER,SPRING

57

01641-20405

WASHER
