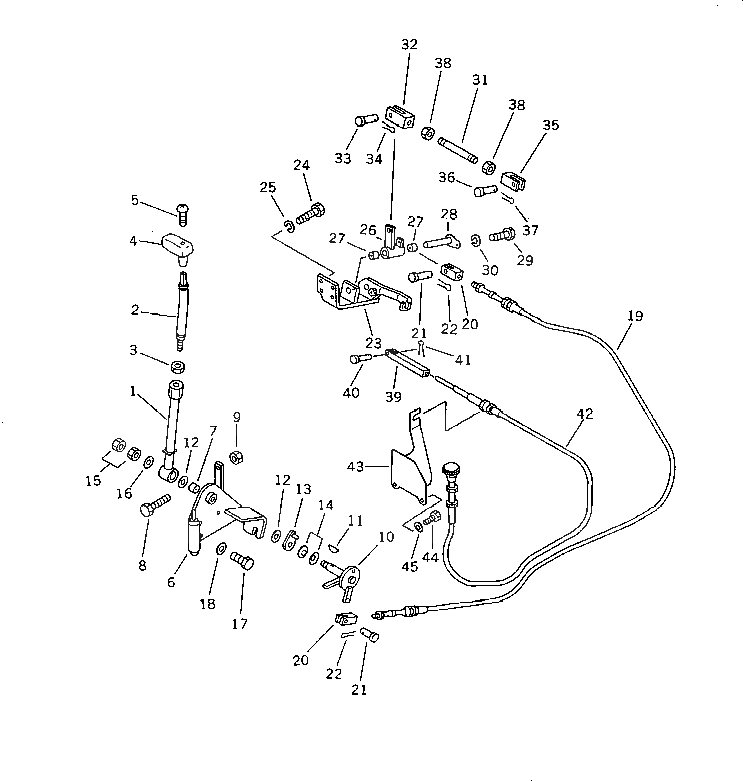

Запчасти Komatsu PW150-1 РЫЧАГ УПРАВЛ-Я ПОДАЧЕЙ ТОПЛИВА (REGULATION OF SWEDEN) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20G-43-11111

LEVER

2

20G-43-11190

ROD

3

01582-11411

NUT

4

20X-43-11270

KNOB

5

01225-40625

SCREW

6

20G-43-11121

BRACKET

7

09350-01420

BUSHING

8

01016-31060

BOLT

9

01580-11008

NUT

10

20G-43-11141

SHAFT

11

04010-00516

KEY

12

10E-43-11160

FACING

13

20N-43-24130

PLATE

14

101-854-9355

SPRING

15

01583-11207

NUT

16

01640-21223

WASHER

17

01010-51030

BOLT

18

01643-31032

WASHER

19

20G-43-11151

CABLE

20

04211-20500

YOKE

21

04205-10514

PIN

22

04050-11208

PIN,COTTER

23

20G-43-11131

BRACKET

24

01010-51025

BOLT

25

01602-21030

WASHER,SPRING

26

20G-43-11161

LEVER

27

09350-02530

BUSHING

28

20G-43-11180

SHAFT

29

01010-51030

BOLT

30

01602-21030

WASHER,SPRING

31

04245-41013

ROD

32

04211-21055

YOKE

33

04205-11028

PIN

34

04050-13015

PIN,COTTER

35

201-43-21370

YOKE

36

04205-10622

PIN

37

04050-11612

PIN,COTTER

38

01582-11008

NUT

39

20G-43-11310

YOKE

40

04205-10514

PIN

41

04050-11210

PIN,COTTER

42

203-54-42561

CABLE

43

20G-43-11320

BRACKET

44

01010-51025

BOLT

45

01602-21030

WASHER,SPRING
