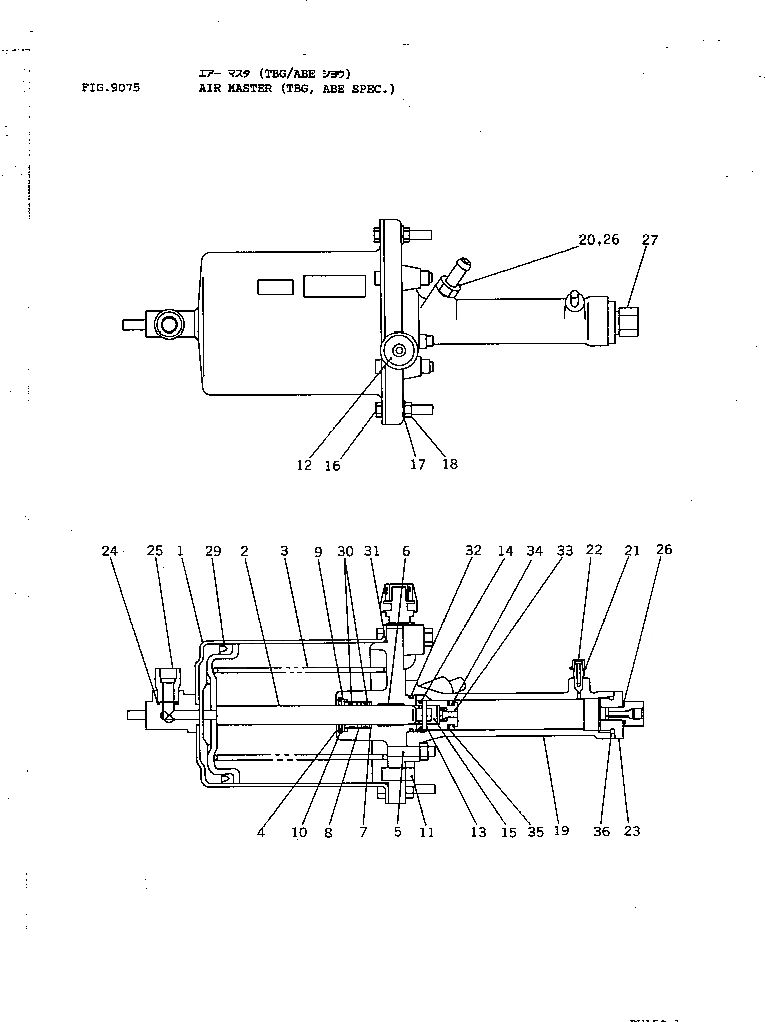

Запчасти Komatsu PW150-1 ВОЗД. МАЧТАER (TBG¤ ABE СПЕЦ-Я.) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|$0

20G-68-11150

MASTER,AIR

1

CYLINDER ASS'Y

2

ROD ASS'Y,PISTON

3

SPRING,RETURN

4

COVER

5

BOLT,STUD

6

BUSHING

7

CUP,SUPPORTER

8

SPACER

9

CUP,SUPPORTER

10

RING,STOP

11

PLUG

12

BREATHER ASS'Y

13

PIN

14

RING

15

GUIDE,PISTON PUSH

16

BOLT

17

WASHER,SPRING

18

NUT

19

CYLINDER

20

NIPPLE

21

SCREW,BLEEDER

22

CAP,BLEEDER SCREW

23

CAP

24

O-RING

25

CONNECTOR

26

GASKET

27

CONNECTOR

28

NA32690030850

REPAIR KIT

29

NA32612530340

CUP,PISTON

30

NA32622230341

CUP,SECONDARY

31

NA040220000310

O-RING

32

NA040110003003

O-RING

33

NA32620030340

PISTON ASS'Y

34

NA32622130340

CUP,PRESSURE

35

NA32621430340

RING,BACK-UP

36

NA040110002903

O-RING
