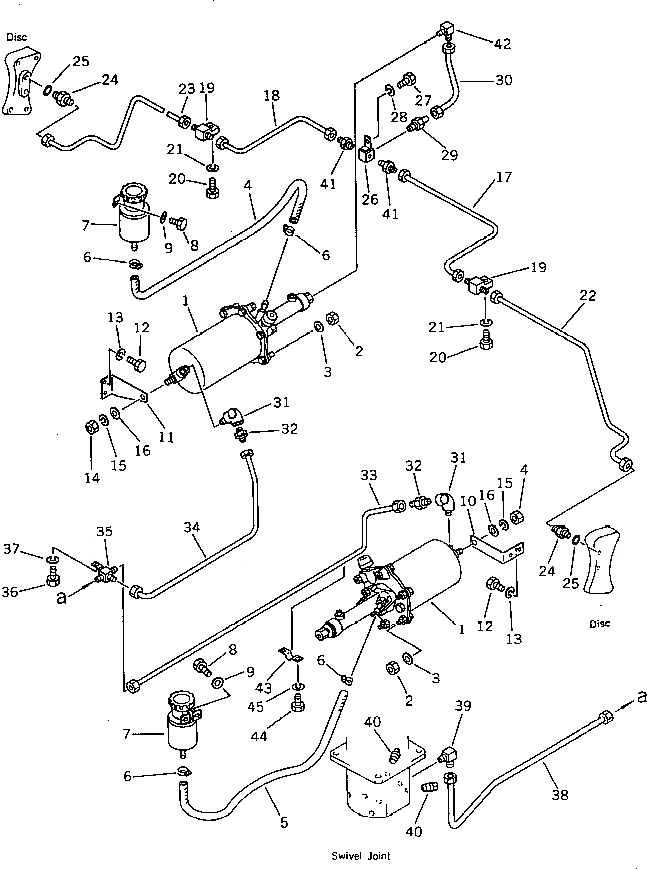

Запчасти Komatsu PW150-1 НИЖН. ВОЗДУХОВОД (/) (ВОЗД. МАЧТАER) (TBG¤ ABE СПЕЦ-Я.) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20G-68-11150

MASTER,AIR

2

01582-11008

NUT

3

01643-31032

WASHER

4

20G-68-13250

HOSE

4

20G-68-12840

HOSE

5

20G-68-12842

HOSE

5

20G-68-12841

TUBE

6

20K-68-12410

CLAMP

6

07281-00197

CLAMP

7

20D-68-12690

TANK

8

01010-50616

BOLT

9

01643-30623

WASHER

10

20G-68-19290

BRACKET

11

20G-68-19280

BRACKET

12

01010-51020

BOLT

13

01602-21030

WASHER,SPRING

14

01580-01008

NUT

15

01602-21030

WASHER,SPRING

16

01643-31032

WASHER

17

20G-68-12571

TUBE

18

20G-68-12581

TUBE

19

20G-68-12891

NIPPLE

20

01010-50820

BOLT

21

01602-21030

WASHER,SPRING

22

20G-68-12791

TUBE,L.H.

23

20G-68-12781

TUBE,R.H.

24

20G-68-12941

NIPPLE

25

20G-68-12950

O-RING

26

20G-68-12591

BLOCK

27

01010-51020

BOLT

28

01602-21030

WASHER,SPRING

29

07213-51013

CONNECTOR

30

20G-68-19250

TUBE

31

20G-68-19770

ELBOW

32

07213-51013

CONNECTOR

33

20G-68-19240

TUBE

34

20G-68-19230

TUBE

35

20G-68-19270

TEE

36

01010-51016

BOLT

37

01602-21030

WASHER,SPRING

38

20G-68-19220

TUBE

39

234-975-4810

ELBOW

40

07042-30211

PLUG

41

07213-50710

CONNECTOR

42

234-975-4810

ELBOW

43

07282-01048

CLAMP

44

01010-50612

BOLT

45

01602-20619

WASHER,SPRING
