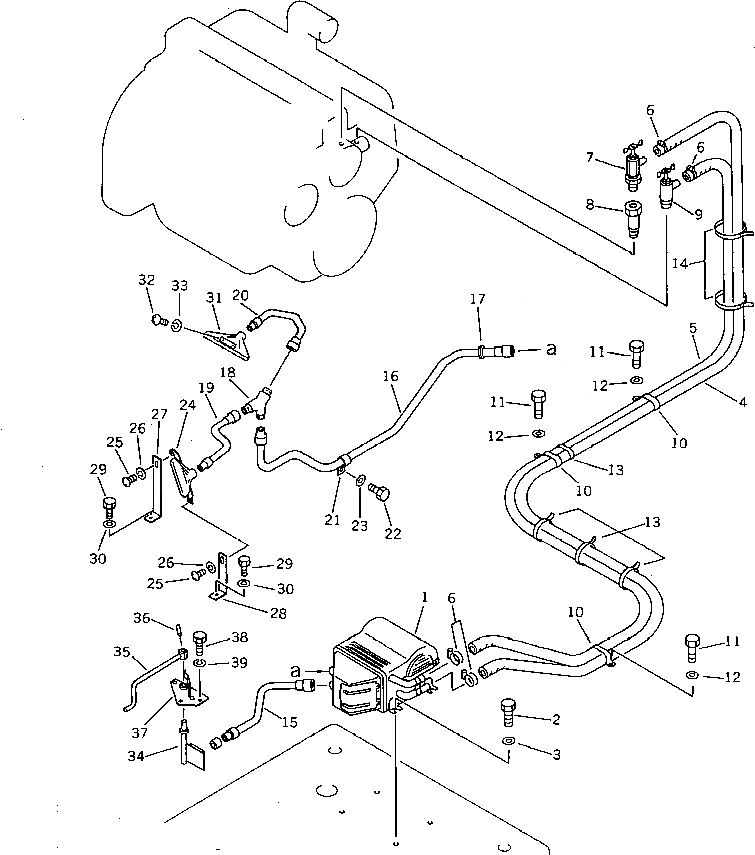

Запчасти Komatsu PW150-1 ОБОГРЕВАТЕЛЬ. (TBG¤ ABE СПЕЦ-Я.) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20G-977-2130

HEATER UNIT

2

01010-51025

BOLT

3

01643-31032

WASHER

4

09483-00427

HOSE

5

09483-00425

HOSE

6

07281-00259

CLAMP

7

20R-54-19111

VALVE

8

20R-54-19150

JOINT

9

201-54-24130

VALVE

10

176-911-4710

HOSE

11

01010-51020

BOLT

12

01643-31032

WASHER

13

08034-00519

BAND

14

08034-00536

BAND

15

20G-977-1910

HOSE

16

20G-977-1920

HOSE

17

20G-977-1960

GROMMET

18

20G-977-2150

JOINT

19

09485-04503

HOSE,AIR

20

20G-977-2170

HOSE

21

21K-977-1210

CLIP

22

01010-51225

BOLT

23

01643-21232

WASHER

24

362-979-3190

NOZZLE

25

01220-40516

SCREW

26

01601-20513

WASHER,SPRING

27

20G-977-2180

PLATE

28

20G-977-2190

PLATE

29

01010-50616

BOLT

30

01641-20608

WASHER

31

09486-10000

NOZZLE

32

01220-40510

SCREW

33

01601-20513

WASHER,SPRING

34

20G-977-1930

COVER

35

20G-977-1940

LEVER

36

04025-00320

PIN,SPRING

37

20G-977-1950

COVER

38

01010-50820

BOLT

39

01602-20825

WASHER,SPRING
