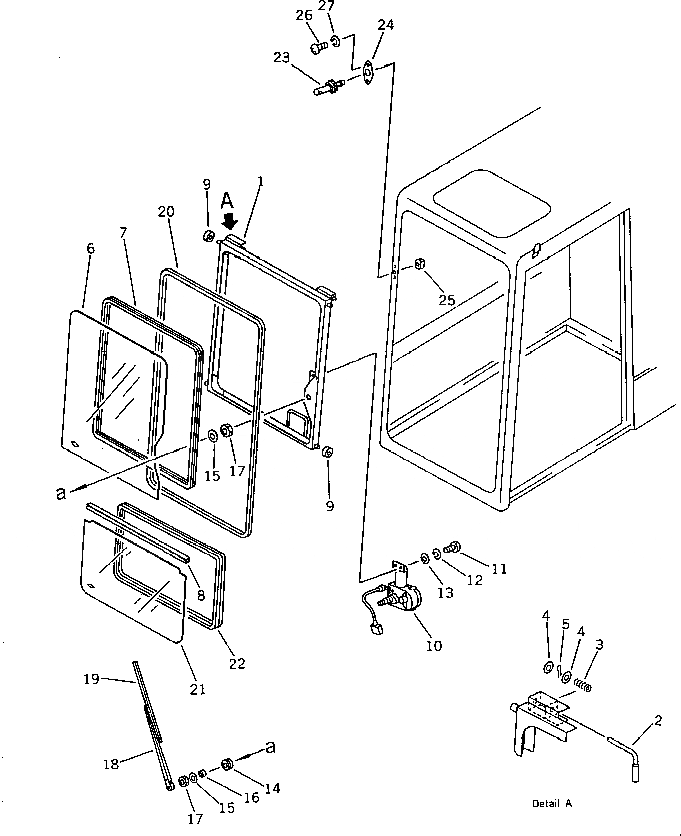

Запчасти Komatsu PW150-1 КАБИНА (/) (TBG¤ ABE СПЕЦ-Я.) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|$0

20G-54-00042

OPERATOR'S CAB ASS'Y

|$2

20G-54-00041

OPERATOR'S CAB ASS'Y

|$4

20G-54-00040

OPERATOR'S CAB ASS'Y

|$6

20G-54-00060

FRONT WINDOW ASS'Y

1

20G-54-18140

WINDOW,FRONT

2

203-54-43650

PIN

3

205-54-66330

SPRING

4

01641-21016

WASHER

5

04050-13018

PIN,COTTER

6

20G-54-19210

GLASS

7

203-54-43510

STRIP,WEATHER

8

203-54-43530

SEAL

9

205-54-72590

ROLLER

10

203-06-41720

WIPER MOTOR ASS'Y

11

01220-40516

SCREW

12

01601-20513

WASHER,SPRING

13

01641-20508

WASHER

14

205-06-62230

GROMMET

15

205-06-62270

WASHER

16

205-06-62240

COLLAR

17

205-06-62250

NUT

18

205-06-71420

ARM

18A

ND857199-0100

PIN KIT

19

205-06-62570

BLADE

20

203-54-43520

SEAL

21

20G-54-19220

GLASS ASS'Y

22

203-54-43570

STRIP,STRIP

23

205-06-61220

NOZZLE ASS'Y

24

205-06-71590

BRACKET

25

205-06-71610

NUT

26

01220-40412

SCREW

27

01601-20410

WASHER,SPRING
