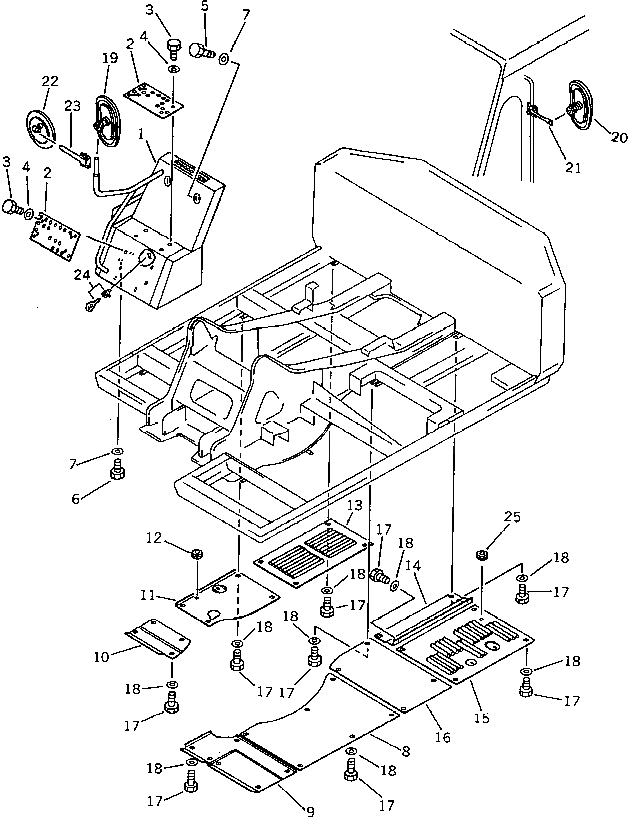

Запчасти Komatsu PW150-1 MACHINERY ОБСТАНОВКА (/) (TBG¤ ABE СПЕЦ-Я.) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20G-54-19120

COVER

2

20G-54-11240

PLATE

3

01010-50616

BOLT

4

01643-30823

WASHER

5

01010-51045

BOLT

6

01010-51025

BOLT

7

01643-31032

WASHER

8

20G-54-11472

COVER

9

20G-54-19930

COVER

10

20G-54-19940

COVER

11

20G-54-19140

COVER

12

113-899-6380

GROMMET

13

20G-54-11422

COVER

14

20G-54-11443

COVER

15

20G-54-19160

COVER

16

20G-54-11462

COVER

17

01010-51025

BOLT

18

01643-31032

WASHER

19

08174-33023

MIRROR

20

20D-06-12250

MIRROR,BACK

21

20D-06-12460

STAY,L.H.

22

20D-06-12250

MIRROR

23

20D-06-12450

STAY,R.H.

24

205-60-71220

LOCK ASS'Y

25

08037-05016

GROMMET
