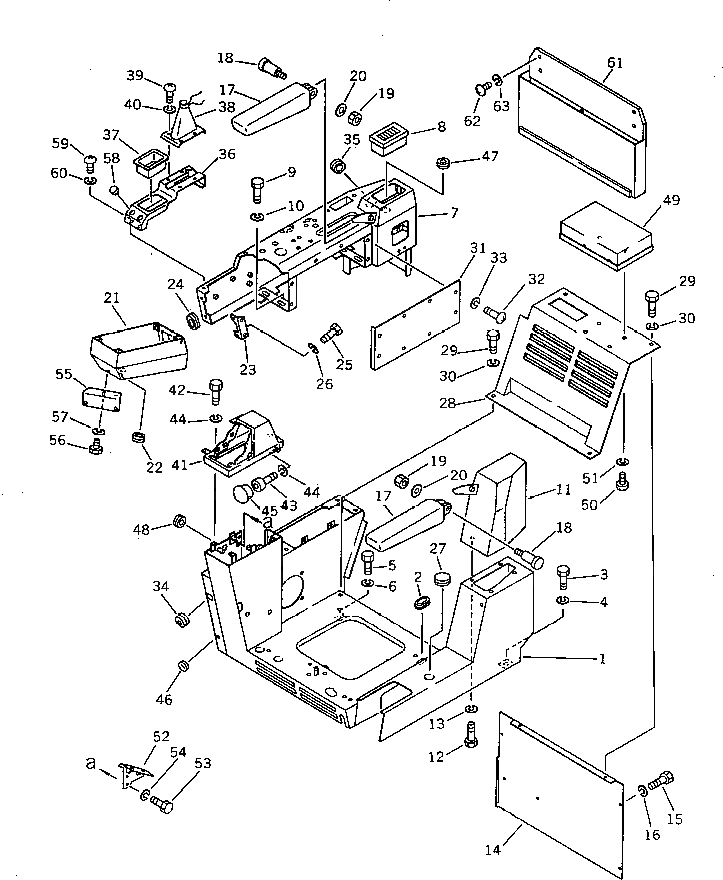

Запчасти Komatsu PW150-1 СИДЕНЬЕ КОРПУС (/) (TBG¤ ABE СПЕЦ-Я.) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20G-54-19320

BOX

2

144-06-12150

GROMMET

3

01010-51025

BOLT

4

01602-21030

WASHER,SPRING

5

01010-51225

BOLT

6

01602-21236

WASHER,SPRING

7

20G-54-19860

BOX,R.H.

8

20G-54-19560

COVER,FUSE

9

01010-50820

BOLT

10

01602-20825

WASHER,SPRING

11

20G-54-13132

COVER,R.H.

12

01010-51025

BOLT

13

01602-21030

WASHER,SPRING

14

20G-54-13262

PLATE

15

01010-50820

BOLT

16

01602-20825

WASHER,SPRING

17

20G-54-13171

REST,ARM

18

20G-54-13181

PIN

19

01580-01008

NUT

20

01643-31032

WASHER

21

20G-54-19870

COVER

22

08037-02512

GROMMET

23

20G-54-13320

PLATE

24

176-911-4160

GROMMET

25

01010-50612

BOLT

26

01602-20619

WASHER,SPRING

27

09415-03614

CAP

28

20G-54-19310

PLATE

29

01010-50816

BOLT

30

01602-20825

WASHER,SPRING

31

20G-54-13331

PLATE

32

01220-40816

SCREW

33

01602-20825

WASHER,SPRING

34

08037-02512

GROMMET

35

08037-03614

GROMMET

36

20G-54-19820

COVER

37

20G-54-13420

ASHTRAY

38

20G-54-19830

COVER

39

01220-30612

SCREW

40

01602-20619

WASHER,SPRING

41

20G-54-19810

COVER,R.H.

42

01010-50616

BOLT

43

01252-40612

BOLT

44

01602-20619

WASHER,SPRING

45

7861-21-1190

CAP

46

09415-00506

CAP

47

08037-02512

GROMMET

48

08037-01610

GROMMET

49

20S-54-15210

CASE

50

01220-40610

SCREW

51

01602-20619

WASHER,SPRING

52

20G-54-19840

BRACKET

53

01010-50820

BOLT

54

01602-20825

WASHER,SPRING

55

20G-54-19881

BRACKET

56

01010-50612

BOLT

57

01602-20619

WASHER,SPRING

58

7861-21-1190

CAP

59

01220-20612

SCREW

60

01602-20619

WASHER,SPRING

61

20G-54-19570

CASE

62

01220-40816

SCREW

63

01643-30823

WASHER
