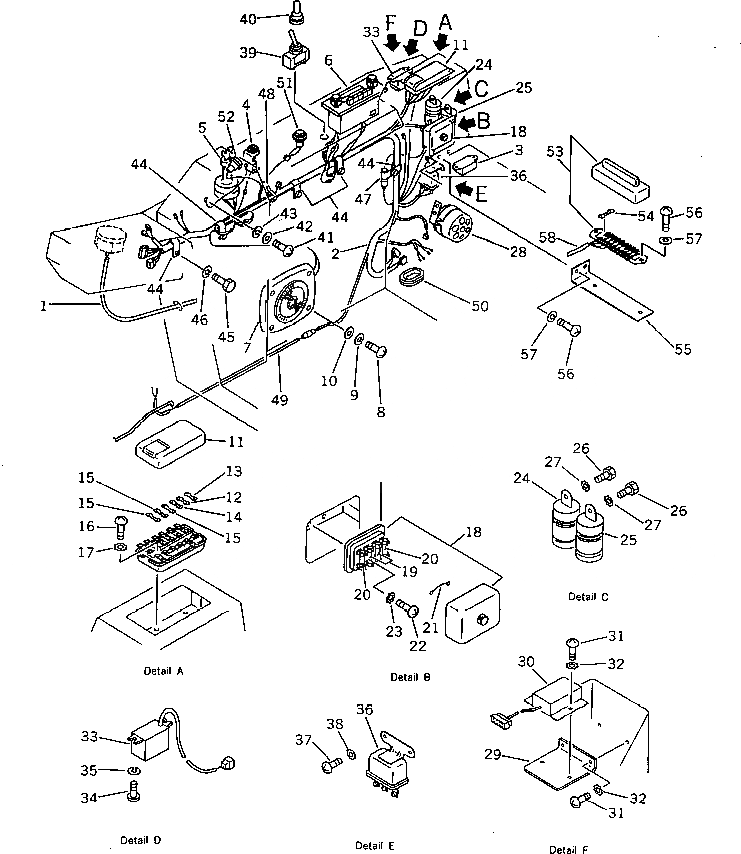

Запчасти Komatsu PW150-1 ЭЛЕКТРИКА (/) (TBG¤ ABE СПЕЦ-Я.) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20G-06-12410

TUBE,3200MM

2

20G-06-14263

HARNESS

2

20G-06-14262

HARNESS

2

22W-06-13590

DIODE

2

22W-06-13430

DIODE

3

22W-06-19260

SWITCH,LOW PRESSURE

4

600-815-3730

SIGNAL,HEATER

5

20G-06-12470

SWITCH,STARTING

6

20G-06-15112

RADIO

6

20G-06-15110

RADIO

7

20G-06-15120

SPEAKER

8

01220-40420

SCREW

9

01601-20410

WASHER,SPRING

10

01641-20405

WASHER

11

175-06-35430

BOX,FUSE

12

175-06-35380

FUSE, 40A

13

175-06-35390

FUSE, 30A

14

175-06-35410

FUSE, 20A

15

175-06-35420

FUSE, 10A

16

01220-40616

SCREW

17

01611-06060

WASHER

18

20G-06-19930

BOX

19

08040-01000

FUSE, 10A

20

08040-02000

FUSE, 20A

21

20G-06-14460

WIRE

22

01235-40516

SCREW

23

01611-05060

WASHER

24

08077-22400

FLASHER

25

20G-06-12510

FLASHER

26

01010-50612

BOLT

27

01611-06060

WASHER

28

08166-02445

BUZZER

29

20G-06-12180

BRACKET

30

20G-06-15131

TIMER

31

01220-40610

SCREW

32

01611-06060

WASHER

33

22W-06-13330

BUZZER ASS'Y

34

01220-40410

SCREW

35

01601-20410

WASHER

39

203-06-41570

SWITCH,SWING BRAKE RELEASE

40

203-06-41680

CAP,RED

41

01220-40610

SCREW

42

01641-20608

WASHER

43

01602-20619

WASHER,SPRING

44

08036-01814

CLIP

45

01010-51016

BOLT

46

01602-21030

WASHER,SPRING

47

08036-02514

CLIP

48

08034-00519

BAND

49

205-06-71532

WIRE

50

176-911-4160

GROMMET

51

20G-06-19380

LAMP

52

20G-06-19810

LAMP

53

20G-06-19390

BOX,FUSE

54

283-06-16190

FUSE, 10A

55

20G-06-19480

BRACKET

56

01220-40620

SCREW

57

01602-20619

WASHER,SPRING

58

20G-06-19230

WIRE ASS'Y
