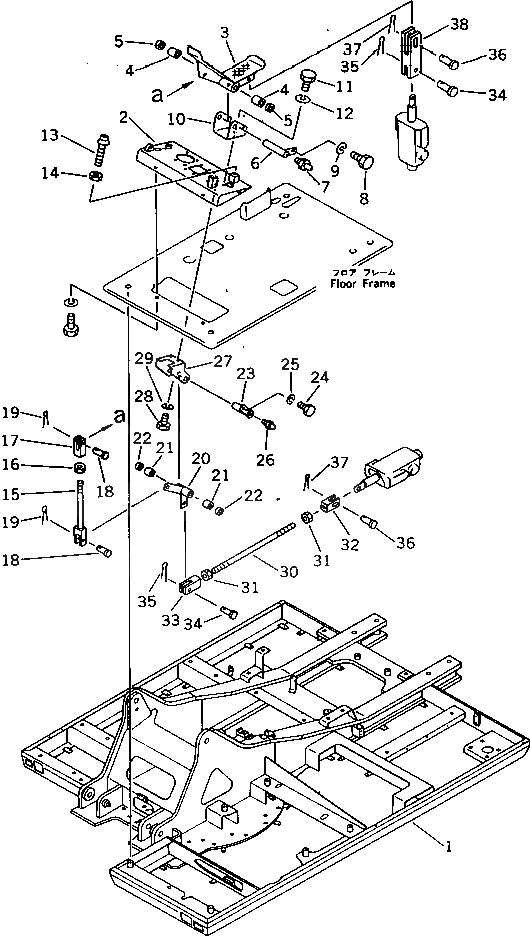

Запчасти Komatsu PW150-1 ДОПОЛН. ГИДРОЛИНИЯ (/) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20G-973-1480

FRAME

2

20G-973-1470

PLATE

3

20G-973-1110

PEDAL

4

06120-02016

BEARING,NEEDLE

5

06122-02004

SEAL,BEARING

6

20G-973-1510

SHAFT

7

07020-00000

FITTING,GREASE

8

01010-50825

BOLT

9

01602-20825

WASHER,SPRING

10

20G-973-1490

BRACKET

11

01010-51030

BOLT

12

01602-21030

WASHER,SPRING

13

09311-41237

BUMPER

14

01580-11210

NUT

15

04244-41008

ROD

16

01580-01008

NUT

17

04210-21040

YOKE

18

04205-11028

PIN

19

04050-13015

PIN,COTTER

20

20G-973-1140

LEVER

21

06120-02016

BEARING,NEEDLE

22

06122-02004

SEAL,BEARING

23

20G-973-1130

TUBE

24

01010-50825

BOLT

25

01602-20825

WASHER,SPRING

26

07020-00900

FITTING,GREASE

27

20G-973-1120

BRACKET

28

01010-51020

BOLT

29

01602-21030

WASHER,SPRING

30

04244-41018

ROD

31

01580-01008

NUT

32

20G-973-1150

YOKE

33

04210-21040

YOKE

34

04205-11028

PIN

35

04050-13015

PIN,COTTER

36

04205-10618

PIN

37

04050-11610

PIN,COTTER

38

20G-973-1170

YOKE
