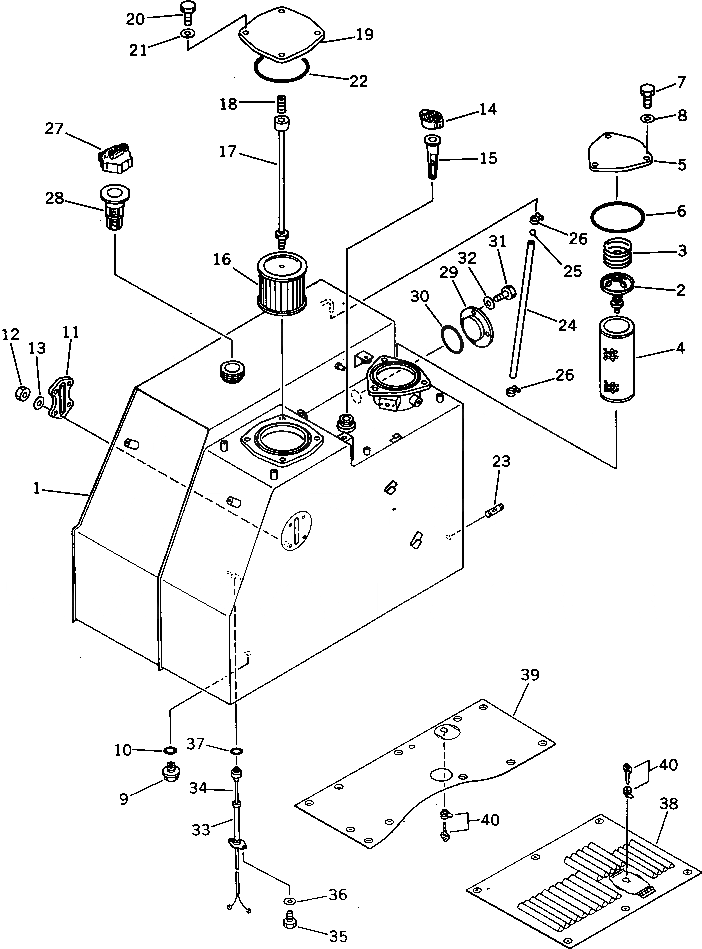

Запчасти Komatsu PW150-1 ГИДР. БАК. (АНТИВАНДАЛЬН.) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20G-60-19122

TANK

2

175-60-27300

VALVE ASS'Y

3

175-60-27340

SPRING

4

175-60-27380

ELEMENT

5

203-60-31172

COVER

6

07000-05155

O-RING

7

01010-51025

BOLT

8

01643-31032

WASHER

9

07044-13620

PLUG

10

07002-03634

O-RING

11

203-60-21200

GAUGE

12

01580-11008

NUT

13

01643-31032

WASHER

14

07092-00000

CAP

15

07056-10045

STRAINER

16

21K-60-11190

STRAINER

17

20G-60-12150

SUPPORT

18

12R-60-11230

SPRING

19

21K-60-11180

COVER

20

01010-51025

BOLT

21

01643-31032

WASHER

22

07000-05180

O-RING

23

704-28-02750

STRAINER

24

203-04-31121

TUBE

25

201-04-21160

BALL,FLOAT

26

07285-00155

CLIP

26

07281-00197

CLAMP

27

07091-11200

CAP

28

07056-18416

STRAINER

29

20G-60-11180

COVER

30

07000-02085

O-RING

31

01010-51025

BOLT

32

01643-31032

WASHER

|$33

20G-60-11100

TUBE ASS'Y

33

20G-60-11130

TUBE

34

281-06-13942

SWITCH

35

01010-50816

BOLT

36

01643-30823

WASHER

37

07000-23030

O-RING

38

20G-54-19130

COVER

39

20G-54-19140

COVER

40

205-60-71220

LOCK ASS'Y
