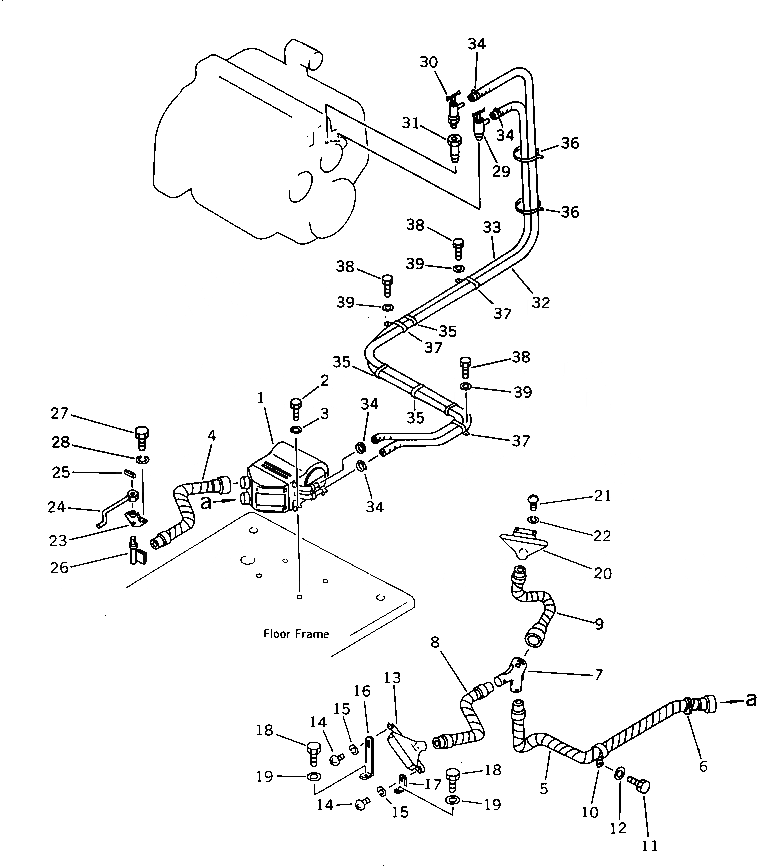

Запчасти Komatsu PW150-1 ОБОГРЕВАТЕЛЬ. И АНТИОБЛЕДЕНИТЕЛЬ ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20G-977-2130

HEATER UNIT

2

01010-51025

BOLT

3

01643-31032

WASHER

4

20G-977-1910

HOSE

5

20G-977-1920

HOSE

6

20G-977-1960

GROMMET

7

20G-977-2150

JOINT

8

09485-04503

HOSE,AIR

9

20G-977-2170

HOSE

10

21K-977-1210

CLIP

11

01010-51225

BOLT

12

01643-21232

WASHER

13

362-97-93190

NOZZLE

14

01220-40516

SCREW

15

01601-20513

WASHER,SPRING

16

20G-977-2180

PLATE

17

20G-977-2190

PLATE

18

01010-50616

BOLT

19

01641-20608

WASHER

20

09486-10000

NOZZLE

21

01220-40510

SCREW

22

01601-20513

WASHER,SPRING

23

20G-977-1930

COVER

24

20G-977-1940

LEVER

25

04025-00320

PIN,SPRING

26

20G-977-1950

COVER

27

01010-50820

BOLT

28

01602-20825

WASHER,SPRING

29

203-977-4130

VALVE

30

20R-54-19111

VALVE

31

20R-54-19150

JOINT

32

09483-00427

HOSE

33

09483-00425

HOSE

34

09480-10100

CLAMP

35

08034-00519

BAND

36

08034-00536

BAND

37

176-911-4170

CLIP

38

01010-51020

BOLT

39

01643-31032

WASHER
