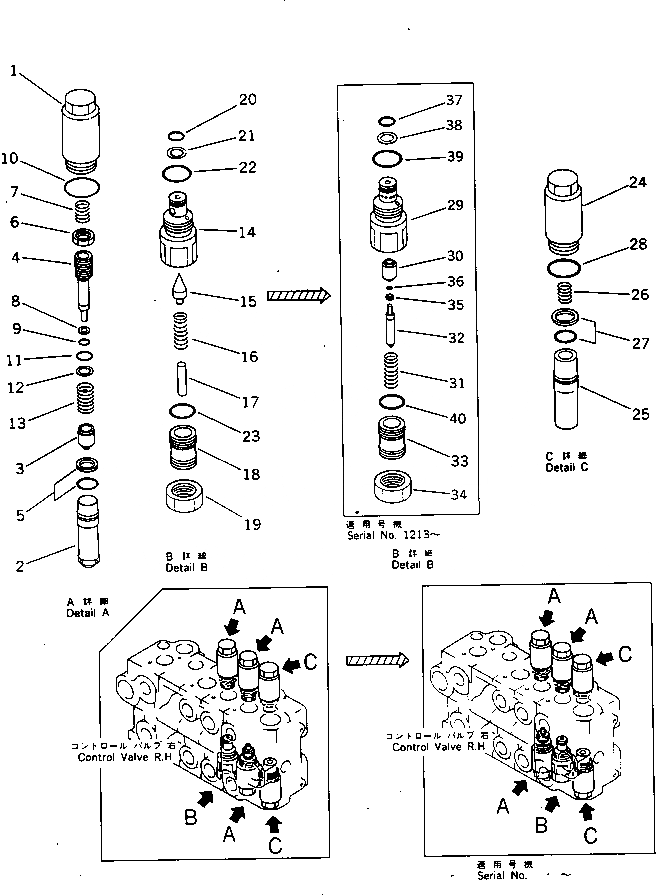

Запчасти Komatsu PW150-1 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (КЛАПАН БЕЗОПАСНОСТИ) (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-85-23003

CONTROL VALVE ASS'Y,R.H.

|$2

700-85-23002

CONTROL VALVE ASS'Y,R.H.

|$4

700-85-23001

CONTROL VALVE ASS'Y,R.H.

|$6

700-81-64001

VALVE ASS'Y

|$7

700-81-64000

VALVE ASS'Y

1

700-80-62310

SLEEVE

2

VALVE

3

POPPET

4

PISTON

5

SEAL

6

NUT

6

NUT

7

700-80-62250

SPRING

8

SEAL

9

O-RING

10

07002-03034

O-RING

11

O-RING

12

RING

13

SPRING

13

SPRING

|$23

700-81-76000

VALVE ASS'Y

14

SLEEVE

15

POPPET

16

SPRING

17

PIN

18

SCREW

19

NUT

20

700-20-11410

O-RING

21

700-80-64220

RING,BACK-UP

22

07002-03034

O-RING

23

O-RING

|$34

700-81-81000

VALVE ASS'Y

24

700-80-62310

SLEEVE

25

VALVE

26

700-80-62250

SPRING

27

SEAL

28

07002-03034

O-RING

|$40

700-81-75000

VALVE ASS'Y

29

SLEEVE

30

POPPET

31

SPRING

31

SPRING

32

PISTON

33

SCREW

34

NUT

35

SEAL

36

O-RING

37

700-22-11410

O-RING

38

700-80-64220

RING,BACK-UP

39

07002-03034

O-RING

40

O-RING
