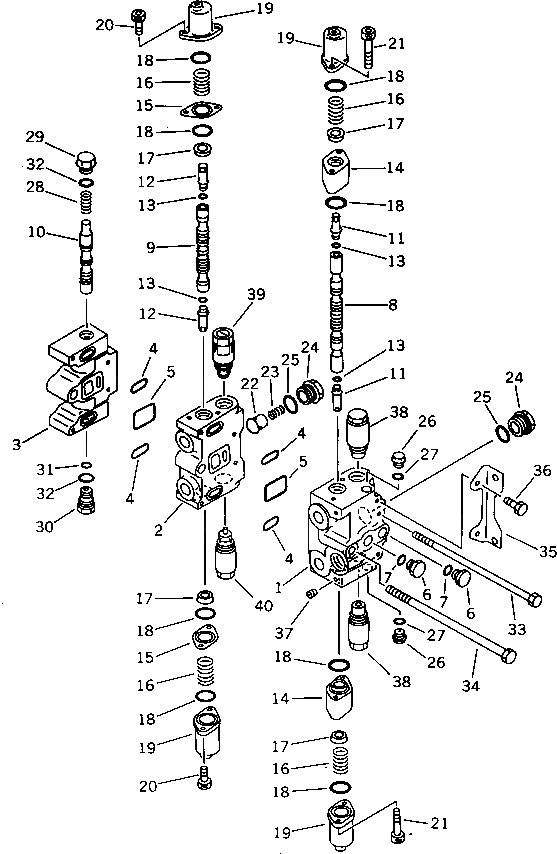

Запчасти Komatsu PW150-1 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (F-R ЛЕВ.¤ РУКОЯТЬ¤ ПОВОРОТН. COMPRENSATED) (/)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-87-11002

CONTROL VALVE ASS'Y,L.H.

|$2

700-87-11001

CONTROL VALVE ASS'Y,L.H.

1

COVER

2

BLOCK

3

BLOCK

4

07000-03038

O-RING

5

07000-13050

O-RING

6

709-30-62150

PLUG

7

07002-02034

O-RING

8

SPOOL

9

SPOOL

10

SPOOL

10

SPOOL

11

700-84-13820

JOINT

12

700-84-13790

JOINT

13

07002-11223

O-RING

14

700-84-13812

PLATE

15

700-84-13490

PLATE

16

700-84-13770

SPRING

17

700-84-13781

RETAINER

18

700-84-11240

O-RING

19

700-84-12510

CASE

20

01252-30625

BOLT

21

01252-30650

BOLT

22

700-42-31460

VALVE

23

700-42-31470

SPRING

24

700-84-11320

PLUG

25

07002-13034

O-RING

26

709-30-62150

PLUG

27

07002-02034

O-RING

28

700-84-13570

SPRING

29

700-84-13870

PLUG

30

700-84-13510

NIPPLE

31

07000-02015

O-RING

32

07002-02434

O-RING

33

700-87-11110

BOLT

34

700-87-11120

BOLT

35

700-84-11330

BRACKET

36

01010-51020

BOLT

37

07043-70108

PLUG

38

700-81-81000

VALVE ASS'Y

39

700-81-75000

VALVE ASS'Y

40

700-81-64001

VALVE ASS'Y

40

700-81-64000

VALVE ASS'Y
