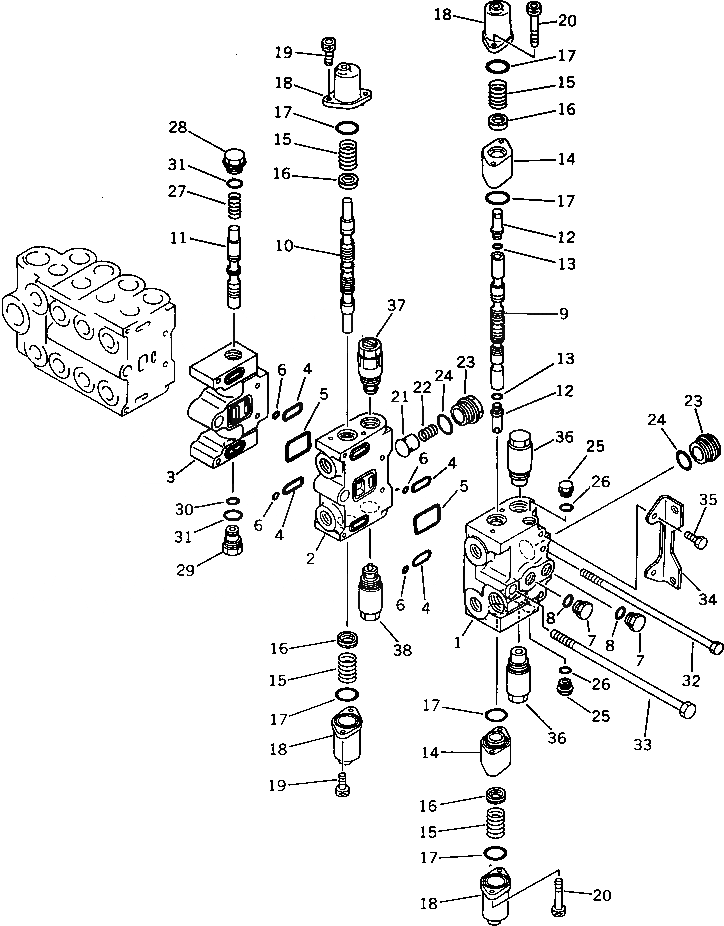

Запчасти Komatsu PW150-1 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (F-R ЛЕВ.¤ РУКОЯТЬ¤ ПОВОРОТН. COMPRENSATED) (/)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-87-11001

CONTROL VALVE ASS'Y,L.H.

|$2

700-87-11000

CONTROL VALVE ASS'Y,L.H.

1

COVER

2

BLOCK

3

BLOCK

4

07000-03030

O-RING

5

07000-13050

O-RING

6

07000-01007

O-RING

7

709-30-62150

PLUG

8

07002-02034

O-RING

9

SPOOL

10

SPOOL

11

SPOOL

12

700-84-13820

JOINT

13

07002-11223

O-RING

14

700-84-13812

PLATE

15

700-84-13770

SPRING

16

700-84-13781

RETAINER

17

700-84-11240

O-RING

18

700-84-12510

CASE

19

01252-30616

BOLT

20

01252-30650

BOLT

21

700-42-31460

VALVE

22

700-42-31470

SPRING

23

700-84-11320

PLUG

24

07002-13034

O-RING

25

709-30-62150

PLUG

26

07002-02034

O-RING

27

700-84-13570

SPRING

28

700-84-13870

PLUG

29

700-84-13510

NIPPLE

30

07000-02015

O-RING

31

07002-02434

O-RING

32

700-87-11110

BOLT

33

700-87-11120

BOLT

34

700-84-11330

BRACKET

35

01010-51020

BOLT

36

700-81-81000

VALVE ASS'Y

37

700-81-75000

VALVE ASS'Y

38

700-81-64000

VALVE ASS'Y
