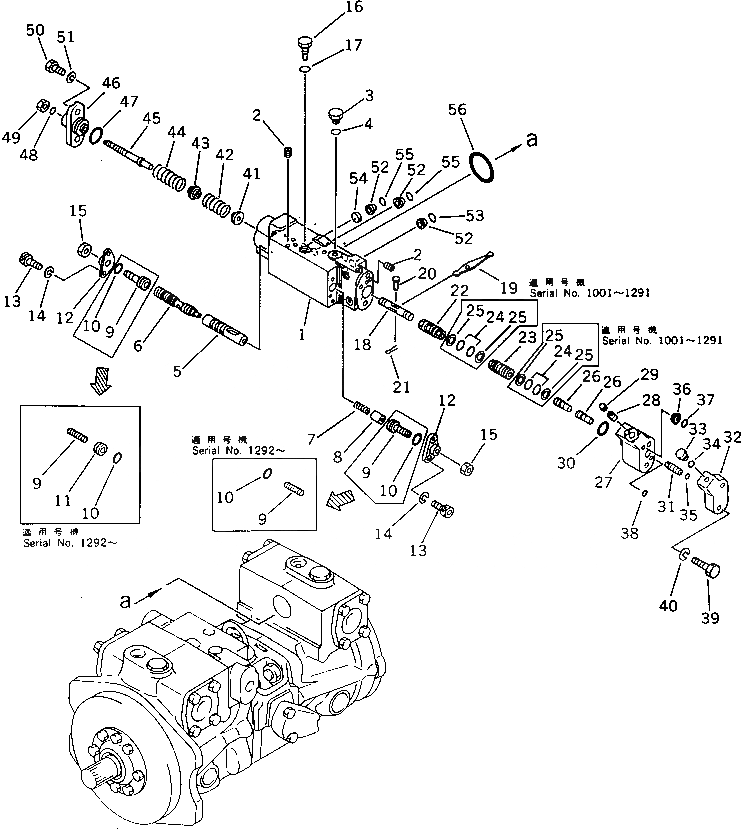

Запчасти Komatsu PW150-1 P.C. СЕРВОКЛАПАН¤ ДЛЯ ЗАДН. ГИДР. НАСОС. УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
708-23-01021
PUMP ASS'Y,(HPV55+55)
|$2
708-23-01020
PUMP ASS'Y,(HPV55+55)
|$4
708-23-10201
PUMP ASS'Y,(HPV55+55)
|$6
708-23-10200
PUMP ASS'Y,(HPV55+55)
|$8
708-23-07940
SERVO VALVE ASS'Y,REAR
|$9
708-23-16801
SERVO VALVE ASS'Y,REAR
|$11
708-23-16800
SERVO VALVE ASS'Y,REAR
1
708-23-07082
BODY ASS'Y,REAR
1
708-23-07081
BODY ASS'Y,REAR
1
708-23-07080
BODY ASS'Y,REAR
1
BODY,REAR
1
BODY,REAR
2
PLUG
3
07040-10807
PLUG
4
07002-10823
O-RING
5
708-25-15180
SLEEVE
6
708-25-15280
SPOOL
7
708-25-15310
SPRING
8
708-25-15330
SPACER
8
708-25-15290
SPACER
9
708-25-15340
SCREW
9
708-25-15240
PLUG
10
07000-02012
O-RING
11
708-25-15430
PLUG
12
708-25-15250
COVER
13
708-25-15320
BOLT
13
01252-30616
BOLT
14
01602-20619
WASHER
15
01580-00806
NUT
16
708-25-15260
PLUG
17
07002-00823
O-RING
18
708-23-15820
PISTON
19
708-23-15910
ARM
20
04205-00514
PIN
21
04050-01210
PIN,COTTER
22
708-23-15921
SLEEVE
22
708-23-15920
SLEEVE
23
708-23-15941
SLEEVE
23
708-23-15940
SLEEVE
24
07000-12014
O-RING
25
07001-02014
RING,BACK-UP
26
708-23-15930
PISTON
|$48
708-23-07820
SLEEVE ASS'Y
27
SLEEVE,REAR
28
720-68-19740
PLUG
29
720-68-19860
SCREW,SET
30
07000-02014
O-RING
31
708-23-15960
PISTON
32
708-23-16830
COVER,REAR
33
07040-10807
PLUG
34
07002-10823
O-RING
35
07000-01007
O-RING
36
720-68-11920
FILTER
37
07000-12010
O-RING
38
07000-12010
O-RING
39
01010-30870
BOLT
40
01602-00825
WASHER,SPRING
41
708-23-15830
SEAT
42
708-23-15840
SPRING
43
708-23-15850
SEAT
44
708-23-15860
SPRING
45
708-23-15870
ROD
46
708-23-15880
COVER
47
07000-02020
O-RING
48
07002-00823
O-RING
49
708-23-15890
NUT
50
01010-30820
BOLT
51
01602-00825
WASHER,SPRING
52
720-68-11920
FILTER
53
07000-12010
O-RING
54
708-23-16930
ORIFICE
54
708-23-15980
ORIFICE
55
07000-02010
O-RING
56
07000-03048
O-RING
Выбрано товаров: 74
