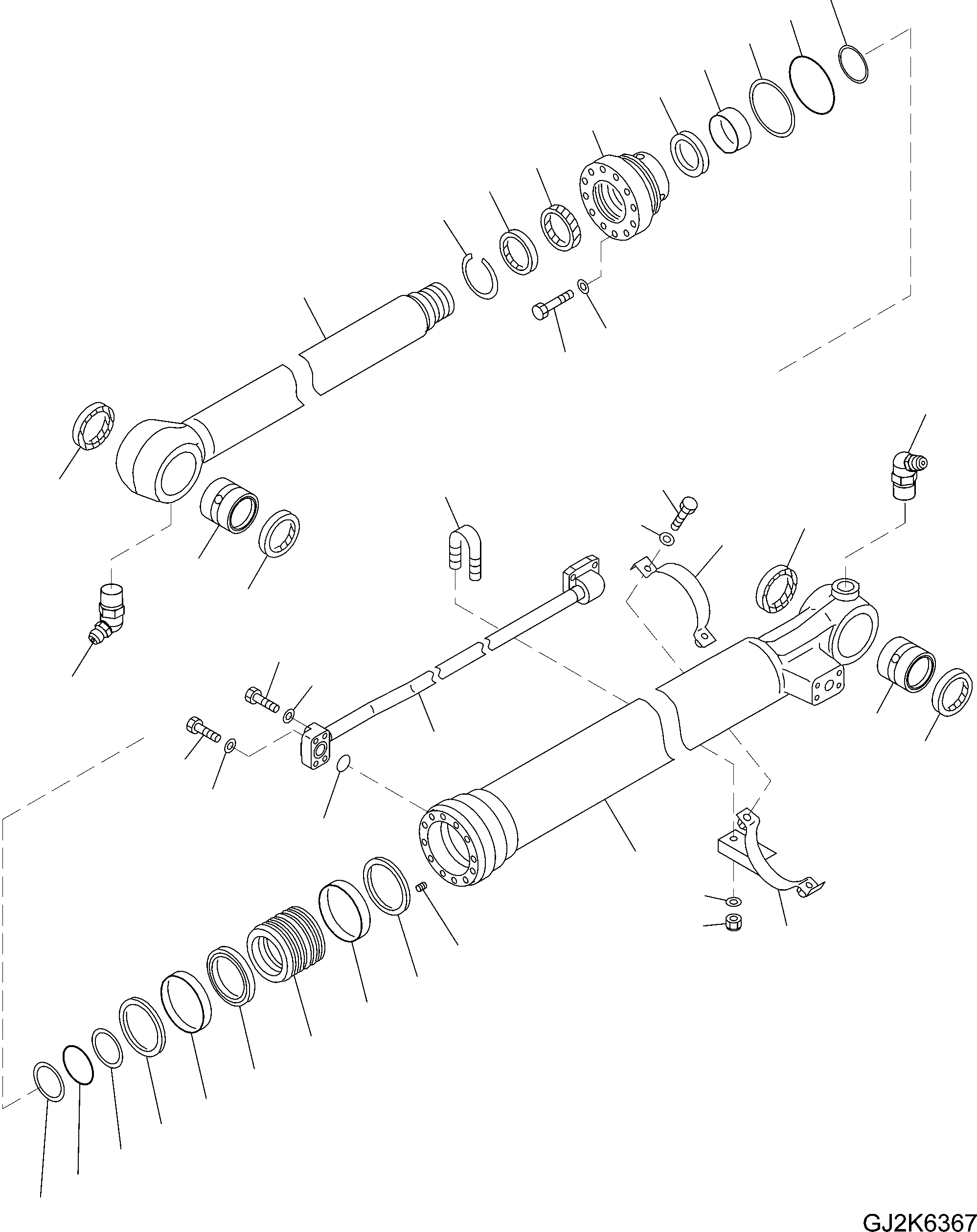

Запчасти Komatsu PW148-8 ЦИЛИНДР КОВША Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G1

707-01-XP980

BUCKET CYLINDER

1

01643-31032

WASHER

2

01597-01009

NUT

3

07283-32236

CLIP

4

707-88-28750

BRACKET

5

707-88-21670

CLAMP

6

01643-51032

WASHER

7

07372-21035

BOLT

8

01643-30823

WASHER

9

01010-80840

BOLT

10

07000-13025

O-RING

11

01643-30823

WASHER

12

01010-80845

BOLT

13

707-86-48330

TUBE

|$16

707-01-0K960

CYLINDER

14

707-76-65220

BUSHING

15

707-77-65110

SEAL, DUST

16

07145-00065

SEAL, DUST

17

707-76-65210

BUSHING

18

07179-12079

RING, SNAP

19

144-63-92170

SEAL, DUST

20

01010-81465

BOLT

21

705-17-04980

WASHER

22

707-27-95650

HEAD

23

707-51-65030

PACKING, ROD

24

707-51-65650

RING

25

707-35-90970

RING, BACK-UP

26

07000-15085

O-RING

27

707-52-90420

BUSHING

28

707-75-65110

RING

29

707-13-95080

CYLINDER

30

203-63-75121

ROD

31

707-36-95040

PISTON

32

707-44-95911

RING

33

707-34-55020

O-RING

34

707-35-90610

RING

35

707-39-95030

RING

36

707-44-95150

RING

37

01310-01016

SCREW

KIT

707-99-27760

SERVICE KIT

38

07020-00675

FITTING
