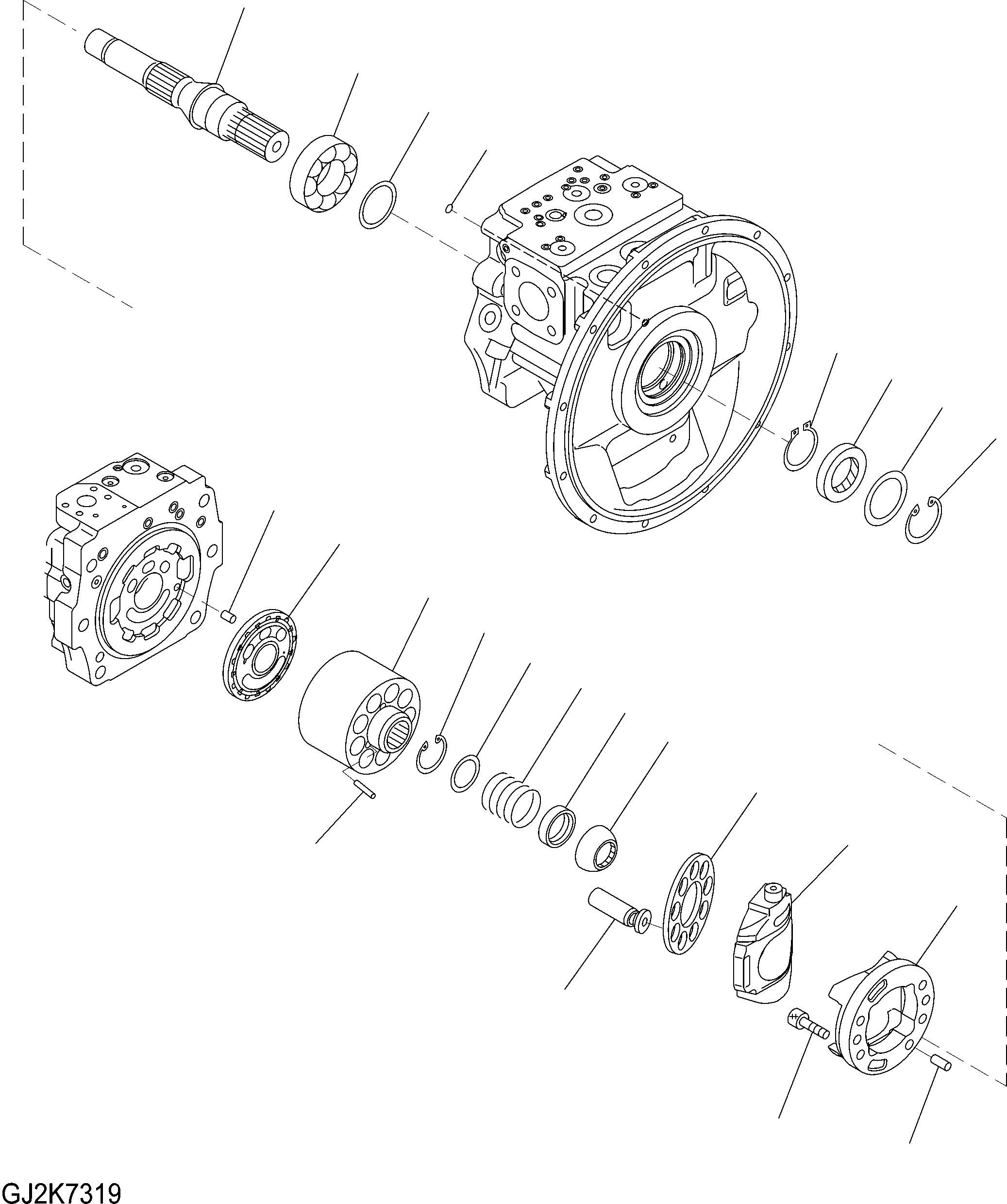

Запчасти Komatsu PW148-8 ОСНОВН. НАСОС (/7) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

708-1L-00690

MAIN PUMP

|$3

708-1L-01690

PUMP SUB ASSEMBLY

1

708-2L-32160

SHAFT

2

708-2L-32150

BEARING

3

708-2E-05040

WASHER KIT

|$7

WASHER, 2.8MM

|$8

WASHER, 2.9MM

|$9

WASHER, 3.0MM

|$10

WASHER, 3.1MM

4

708-25-12790

RING

5

708-25-52861

SEAL

6

708-2L-22160

SPACER

7

04065-06825

RING

|$15

708-2L-06470

CYLINDER BLOCK ASSEMBLY

8

BLOCK

9

PLATE

10

720-68-19610

PIN

11

04065-04818

RING

12

708-2L-23131

SEAT

13

708-2L-33160

SPRING

14

708-7L-13140

SEAT

15

708-2L-23351

GUIDE, RETAINER

16

708-2L-23360

PIN

17

708-2L-33350

GUIDE, RETAINER

18

708-2L-33430

PISTON SUB ASSEMBLY

|$27

708-2L-06630

CRADLE SUB ASSEMBLY

19

CRADLE

20

CAM

21

04020-01228

PIN

22

07000-B1009

O-RING

23

01252-61230

BOLT
