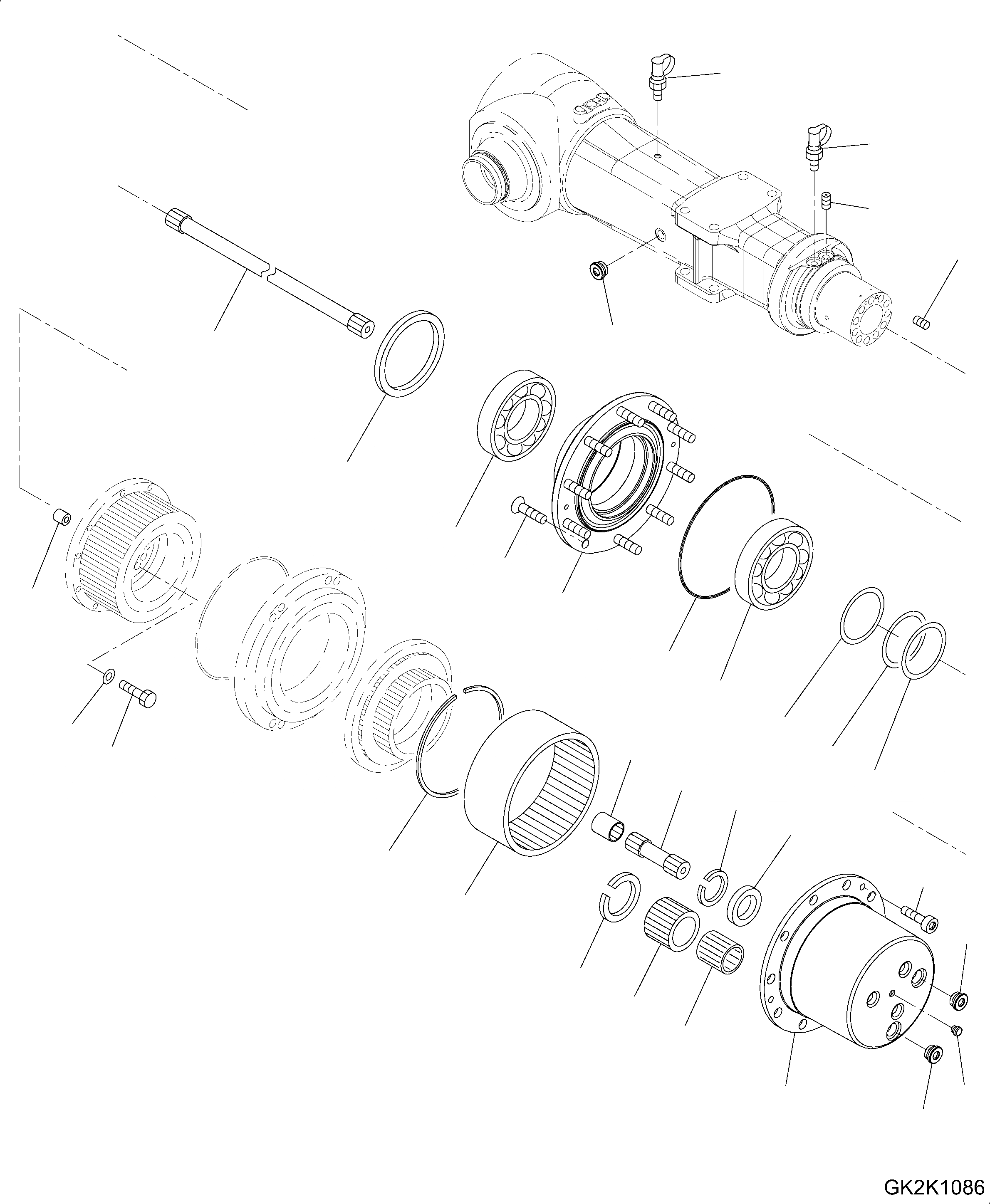

Запчасти Komatsu PW148-8 ЗАДН. МОСТ (КОЛЕСА ВТУЛКА И PLANETARY НЕСУЩИЙ ЭЛЕМЕНТ) (ВНУТР. ЧАСТИ) (/8) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

20E-22-32000

AXLE ASSEMBLY, REAR

1

20G-23-H0P13

HUB

2

20G-22-31130

GEAR

3

20G-22-31140

SLEEVE

|$5

20G-23-31350

PLANETARY ASSEMBLY

4

20G-23-31360

HOLDER, PLANETARY

5

20K-22-31170

GEAR, SPUR

6

20K-22-31270

PLUG

7

20K-22-31180

WASHER

8

20K-22-31190

BEARING, ROLLER

9

20K-14-32330

PLUG

10

20G-23-31370

CLIP

11

20G-22-31150

SHAFT

12

20K-22-31230

WHEEL

13

20K-22-31240

CIRCLIP

14

20K-22-31250

WASHER

15

20K-22-31260

BUSHING

16

20G-23-H0P14

STUD

17

20K-22-31270

PLUG

18

20G-22-31180

CIRCLIP

19

20K-22-31280

PLUG

20

20K-22-31310

GASKET

21

20G-23-H0P20

VALVE

21

20G-23-31670

VALVE, AIR

22

20G-23-31510

FITTING

23

20K-22-31350

PLUG

24

20K-22-31360

PLUG

25

20G-23-31450

BEARING

26

20K-22-31380

SCREW

27

20K-22-31390

SCREW

28

20G-23-31480

SHIM

29

20G-23-31490

SHIM

30

20G-22-31160

SHIM

31

20K-22-31440

O-RING
