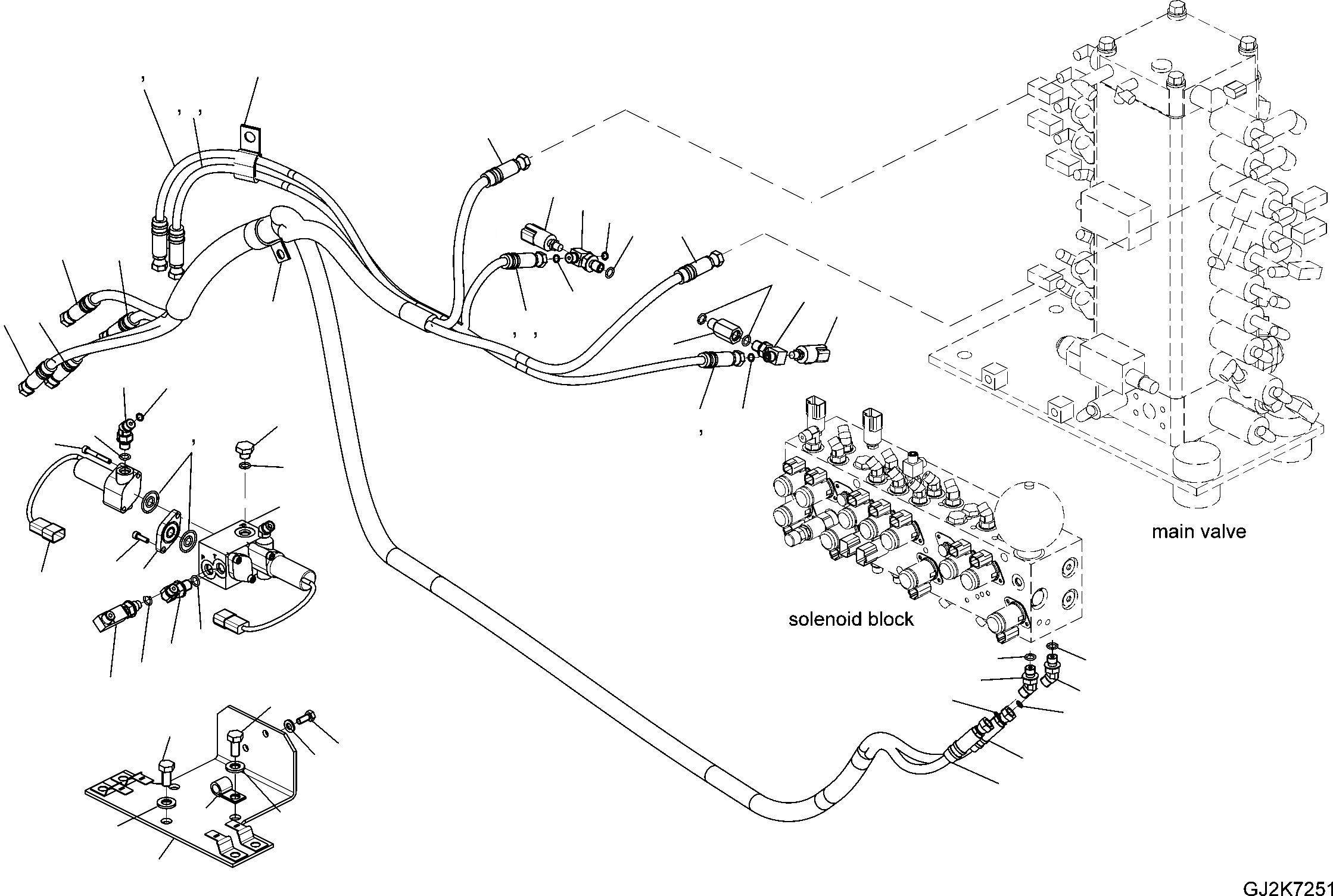

Запчасти Komatsu PW148-8 TWO-ЧАСТИ СТРЕЛА/ONE НАВЕСН. ОБОРУД - PROP УПРАВЛ-Е ЛИНИЯ H ГИДРАВЛИКА

1

02760-00212

HOSE

2

20Y-62-22810

BAND, YELLOW

3

20Y-62-22860

BAND, BROWN

4

20E-62-31910

TEE

5

02896-11008

O-RING

6

07002-11423

O-RING

7

206-06-61130

SWITCH

8

02760-00216

HOSE

9

20Y-62-45490

ELBOW

10

20K-60-33110

ADAPTER

11

04435-51210

CLIP

12

20E-62-32150

BRACKET

13

01643-31232

WASHER

14

01010-81225

BOLT

15

20J-62-13120

BLOCK

16

01643-30823

WASHER

17

01010-80820

BOLT

18

702-21-07010

VALVE ASSEMBLY

19

20J-62-13251

PLATE

20

700-93-11320

O-RING,(LARGE DIAMETER)

21

07000-02011

O-RING,(SMALL DIAMETER)

22

203-60-62220

BOLT

23

20J-62-13260

BOLT

24

07040-11409

PLUG

25

11Y-62-12270

ELBOW

26

21W-62-43960

ELBOW

27

21W-62-43920

ELBOW

|$28

20E-62-32581

HOSE ASSEMBLY

28

02760-00215

HOSE

|$30

20Y-62-22830

BAND, WHITE

29

20K-62-12320

HOSE

|$32

20Y-62-22790

BAND, RED

30

02760-00227

HOSE

|$34

20Y-62-22820

BAND, BLUE

|$35

20Y-62-22860

BAND, BROWN

31

02760-00228

HOSE

|$37

20Y-62-22790

BAND, RED

|$38

20Y-62-22860

BAND, BROWN

32

04434-53412

CLIP

33

04434-51412

CLIP

34

02783-10210

ELBOW
