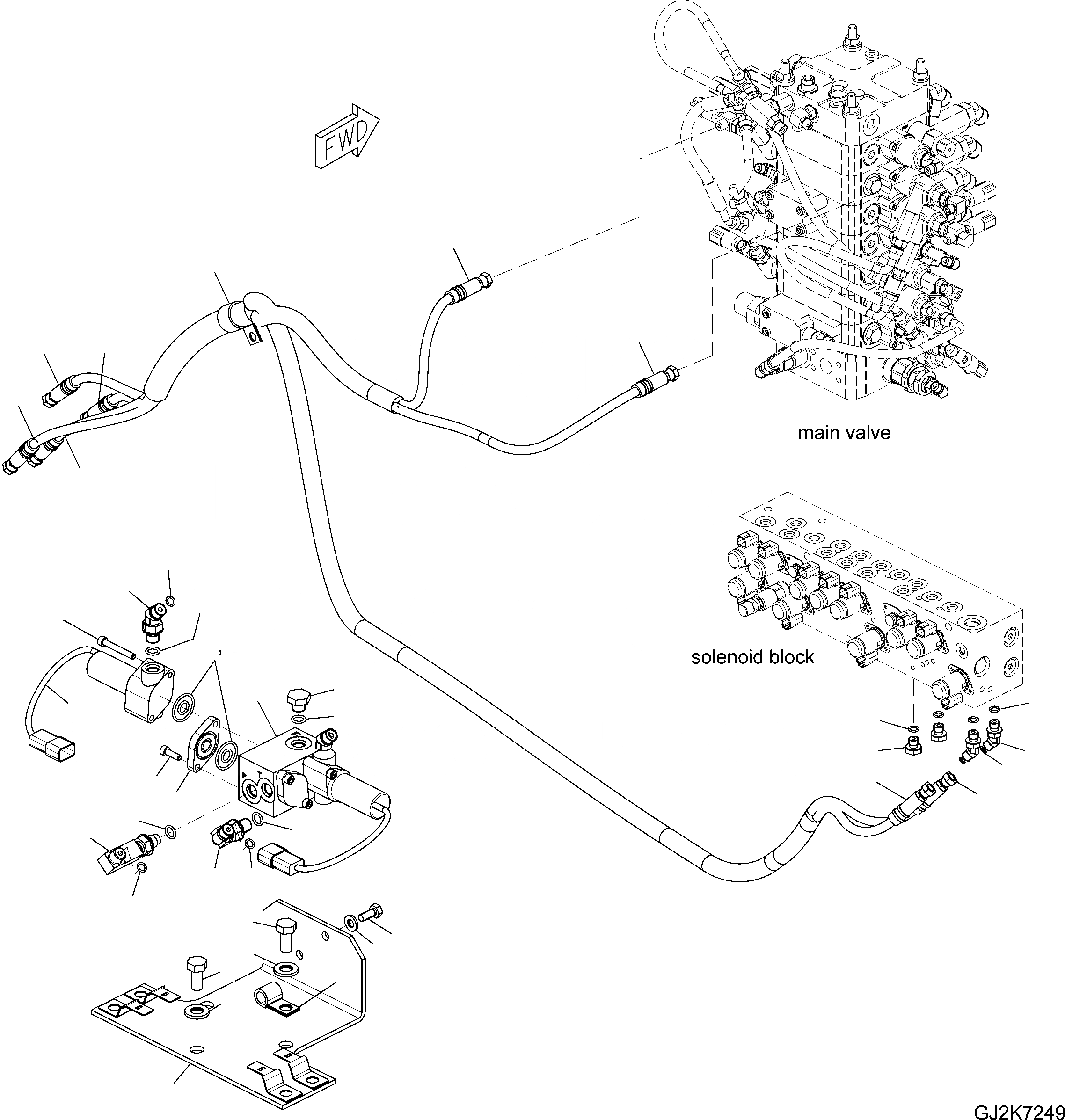

Запчасти Komatsu PW148-8 ONE-ЧАСТИ СТРЕЛА/ONE НАВЕСН. ОБОРУД - PROP УПРАВЛ-Е ЛИНИЯ H ГИДРАВЛИКА

1

20E-62-32150

BRACKET

2

01643-31232

WASHER

3

01010-81225

BOLT

4

20J-62-13120

BLOCK

5

01643-30823

WASHER

6

01010-80820

BOLT

7

702-21-07010

VALVE ASSEMBLY

8

20J-62-13251

PLATE

9

700-93-11320

O-RING,(LARGE DIAMETER)

10

07000-02011

O-RING,(SMALL DIAMETER)

11

203-60-62220

BOLT

12

20J-62-13260

BOLT

13

07040-11409

PLUG

14

07002-11423

O-RING

15

11Y-62-12270

ELBOW

16

02896-11008

O-RING

17

21W-62-43960

ELBOW

18

21W-62-43920

ELBOW

|$19

20E-62-32581

HOSE ASSEMBLY

19

02760-00215

HOSE

|$21

20Y-62-22830

BAND, WHITE

20

20K-62-12320

HOSE

|$23

20Y-62-22790

BAND, RED

21

02760-00227

HOSE

|$25

20Y-62-22820

BAND, BLUE

|$26

20Y-62-22860

BAND, BROWN

22

02760-00228

HOSE

|$28

20Y-62-22790

BAND, RED

|$29

20Y-62-22860

BAND, BROWN

23

04434-53412

CLIP

24

04434-51412

CLIP

25

02783-10210

ELBOW

26

07040-11409

PLUG
