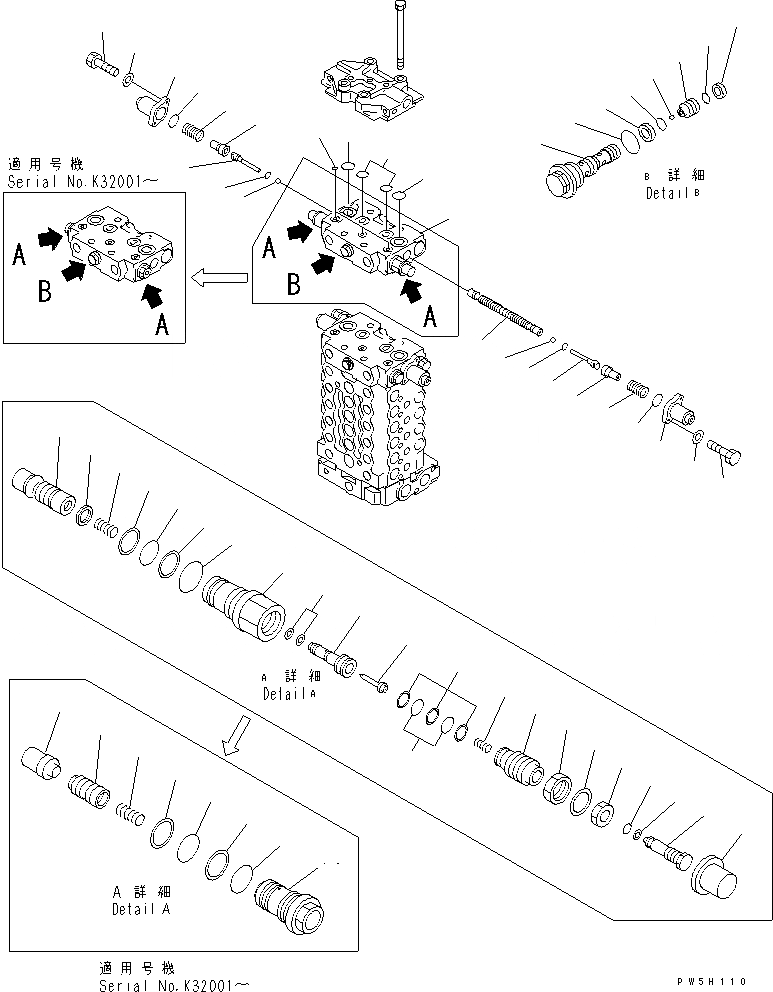

Запчасти Komatsu PW130ES-6K ОСНОВН. КЛАПАН (-АКТУАТОР) (9/)(№K-K) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-38-15700

VALVE ASS'Y

|1

723-38-15201

VALVE ASS'Y

|1

BODY SUB ASS'Y

|1

BODY SUB ASS'Y

1

07000-12014

O-RING

2

07000-13028

O-RING

3

07000-13035

O-RING

4

BODY

5

SPOOL

6

723-36-15130

PLUG

7

07002-10823

O-RING

8

708-7T-16460

BALL

9

723-36-15120

RETAINER

10

723-36-14110

SPRING

11

723-36-15110

CASE

12

723-36-15170

O-RING

13

01252-60622

BOLT

14

01641-20608

WASHER

|15

723-36-48100

VALVE ASS'Y

15

SLEEVE

16

VALVE

17

SEAT

18

POPPET

19

PLUG

20

SCREW

21

NUT

22

NUT

23

SPRING

24

SPRING

25

PLATE

26

CAP

27

SEAL

28

SEAL

29

700-80-61260

O-RING

30

700-80-61430

RING

31

07002-13034

O-RING

32

O-RING

33

RING

34

O-RING

35

RING,BACK-UP

|36

723-30-66200

VALVE ASS'Y

36

PLUG

37

SEAT

38

BALL

39

07002-12434

O-RING

40

07000-12012

O-RING

41

07001-02012

RING,BACK-UP

42

07000-12010

O-RING

43

07001-02010

RING

|44

723-36-40400

VALVE ASS'Y

44

PISTON SUB ASS'Y

45

SLEEVE

46

SPRING

47

700-80-61260

O-RING

48

700-80-61430

RING

49

07002-13034

O-RING

50

723-36-41110

VALVE
