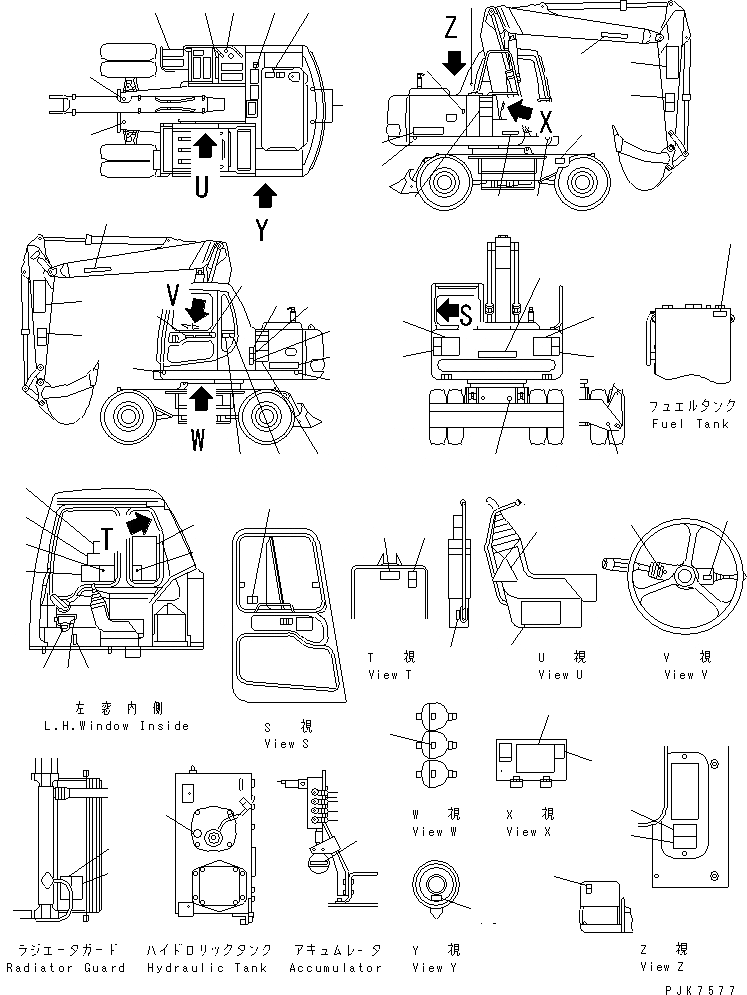

Запчасти Komatsu PW130ES-6K МАРКИРОВКА (СТАНДАРТН.)(№K-K999) МАРКИРОВКА

|1

20E-00-K1200

DECAL KIT

|1

20E-00-K1107

DECAL KIT

|1

20E-00-K1106

DECAL KIT

|1

20E-00-K1105

DECAL KIT

|1

20E-00-K1104

DECAL KIT

1

20E-00-K1230

PLATE¤ CAUTION,REAR WINDOW LOCK BACK

2

20E-00-K1280

PLATE¤ OPERATING,SWING AND PUMP OVERLOAD

3

20G-00-K2590

PLATE¤ OPERATING,LOCK LEVER

|3

09685-00001

PLATE¤ OPERATING,LOCK LEVER

4

20E-00-K1170

PLATE¤ CAUTION,WINDOW (R.H.)

5

20G-00-K2273

PLATE¤ OPERATING,CHASSIS ATTACHMENT

|5

20G-00-K2272

PLATE¤ OPERATING,CHASSIS ATTACHMENT

6

20G-00-K1461

PLATE¤ OPERATING,SWING LOCK

7

20E-00-K1360

CHART¤ INFORMATION,FUSE

8

20E-00-K1320

PLATE¤ CAUTION,R.H. WINDOW WHEEL

9

20E-00-K1420

PLATE¤ DIRECTION,INDICATOR¤ ARROW

10

20E-00-K1430

PLATE¤ OPERATING,F.N.R. SYMBOL

11

20E-00-K1340

PLATE¤ CAUTION,WARNING

12

20Y-00-K2220

PLATE,EMERGENCY EXIT

13

20G-00-K2280

PLATE,L.H. STAND

14

20Y-00-22450

PLATE¤ MARK,HYDRAUMIND

15

20E-00-K1250

PLATE,FUEL TANK

16

20E-00-K1310

PLATE¤ CAUTION,STOP ENGINE WARNING (HOOD)

17

20E-00-K1650

MARK,PW130

18

09690-F0315

PLATE¤ MARK,KOMATSU (CAB DOOR)

19

09690-B0315

PLATE¤ MARK,KOMATSU (TOOL BOX)

20

20E-00-K1110

PLATE¤ CAUTION,FALLING FROM UPPER STRUCTURE

21

154-54-23260

SEAT,ANTI-SLIP

22

203-00-51170

SEAT,ANTI-SLIP

23

20E-00-K1440

SEAT,ANTI-SLIP

24

203-00-K0990

PLATE,SOUND POWER LEVEL

|24

09696-00099

PLATE

25

203-00-K0750

PLATE,SOUND PRESSURE LEVEL

|25

09696-10075

PLATE

26

09960-01001

PLATE¤ MARK,LIFTING POINT

27

20Y-00-K2390

PLATE¤ MARK

28

20E-00-K1640

DECAL

29

20E-00-K1680

DECAL,BLUE ANGLE

30

20E-00-K1690

PLATE¤ CAUTION,ANTI-FREEZE

31

20E-00-K1710

PLATE¤ CAUTION,BLUE TAG

32

09690-B1250

PLATE¤ MARK,(COUNTER WEIGHT)

33

09960-01001

PLATE¤ MARK,LIFTING POINT

34

20E-00-K1260

PLATE¤ MARK,ZEBRA

35

20E-00-K1150

PLATE¤ CAUTION,STAY CLEAR WARNING

36

09690-B1000

PLATE¤ MARK,(BOOM)

37

20G-00-K1170

PLATE¤ CAUTION,ZEBRA¤ L.H.

38

20G-00-K1160

PLATE¤ CAUTION,ZEBRA¤ R.H.

39

20E-00-K1140

PLATE¤ CAUTION,STAY CLEAR WARNING

40

20E-00-K1120

PLATE¤ INSTRUCTION,AIR CLEANER SERVICE

41

20E-00-K1190

PLATE¤ CAUTION,HOT OIL/WATER WARNING

42

203-00-31120

PLATE¤ INSTRUCTION,HYDRAULIC OIL LEVEL

43

20E-00-K1291

CHART¤ LUBRICATION

44

20E-00-K1270

PLATE,HYDRAULIC OIL

45

20E-00-K1470

PLATE,HOT LIQUID HAZARD (TEXT)

46

20E-00-K1730

PLATE,HCU VALVE POSITION

46A

20E-00-K1880

PLATE,TILTING POD OPERATION

47

20E-00-K1210

PLATE¤ CAUTION,ACCUMULATOR WARNING

48

20E-00-K1480

PLATE¤ CAUTION,ARM ANGLE

49

20G-00-K2380

PLATE¤ NAME

|49

205-00-K1116

PLATE¤ NAME

|49

205-00-72430

RIVET

50

20E-00-K1670

DECAL

51

20E-00-K1470

PLATE,HOT LIQUID HAZARD (TEXT)

52

20E-00-K1370

TABLE,LIFTING CAPACITY 2P.B.

|52

20E-00-K1390

TABLE,LIFTING CAPACITY 1P.B.

53

20E-00-K1450

PLATE¤ WARNING,DO NOT LIFT

54

20G-46-K1680

REFLECTOR,AMBER

|54

01220-40512

SCREW

55

20G-47-K1690

REFLECTOR,RED

|55

01220-40512

SCREW
