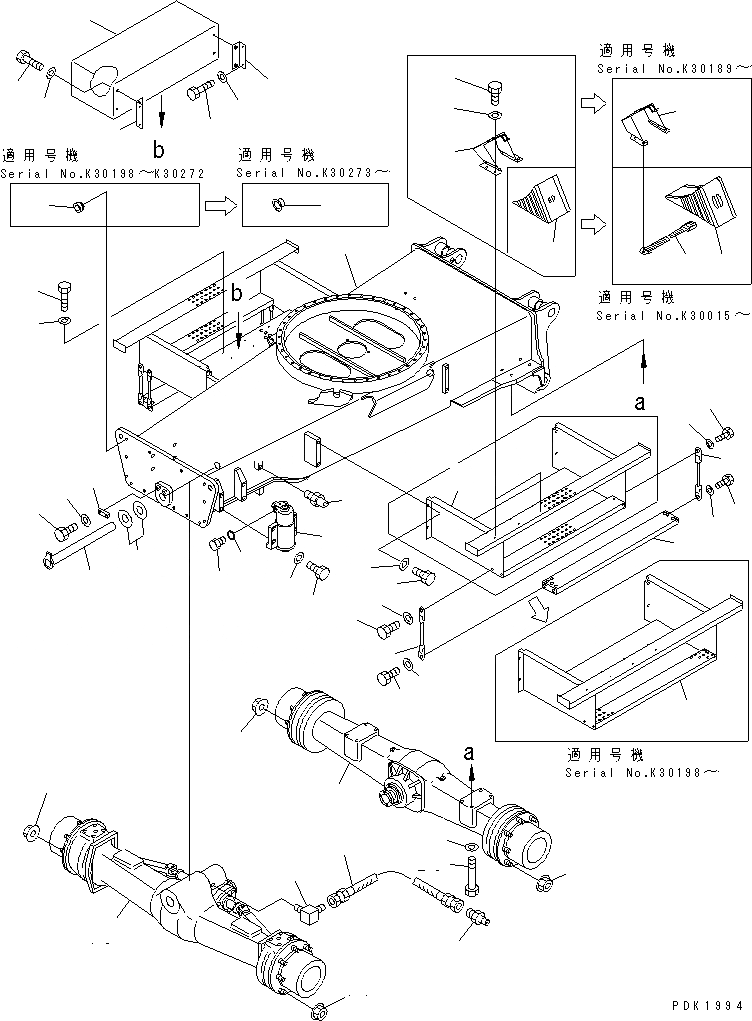

Запчасти Komatsu PW130-6K ШАССИ РАМА SUSPENTION И КОЛЕСА

1

20E-47-K1112

FRAME,CHASSIS

2

20E-47-K1214

STEP

|2

20E-47-K1213

STEP

3

01010-51225

BOLT

4

01643-31232

WASHER

5

20E-47-K1221

PLATE

6

20E-47-K1480

WIRE,STEP

7

01010-51230

BOLT

8

01643-31232

WASHER

9

20E-47-K1531

STOPPER,WHEEL

|9

20E-47-K1530

STOPPER,WHEEL

10

20E-47-K1541

BRACKET

|10

20E-47-K1540

BRACKET

11

01010-50820

BOLT

12

01643-30823

WASHER

13

20E-23-K1111

FRONT AXLE ASS'Y,FRONT

14

20E-22-K1150

NUT,WHEEL

15

20E-47-K1150

PIN

16

20E-47-K1520

SPACER¤ 0.5MM,0.5MM

|16

20E-47-K1510

SPACER¤ 1.0MM,1.0MM

17

205-70-66580

PLATE

18

01010-51230

BOLT

19

01643-31232

WASHER

20

20E-23-K1120

HOSE

21

20E-23-K1130

ELBOW

22

205-70-51390

NIPPLE

23

07020-00000

FITTING,GREASE

24

20E-22-K1111

REAR AXLE ASS'Y,REAR

25

20E-22-K1150

NUT,WHEEL

26

20E-47-K1261

BOLT

27

01643-32060

WASHER

28

20E-61-K1111

CYLINDER ASS'Y,SUSPENSION LOCK

29

01010-52060

BOLT

30

01643-32060

WASHER

31

07040-12012

PLUG

32

07002-12034

O-RING

33

20E-54-K2320

STRAP ASS'Y

34

20E-47-K1731

PLUG

|34

20E-47-K1730

PLUG

35

20E-54-K2570

CASE ASS'Y

36

20E-54-K2430

BRACKET

37

01010-50825

BOLT

38

01010-50820

BOLT

39

01643-30823

WASHER
