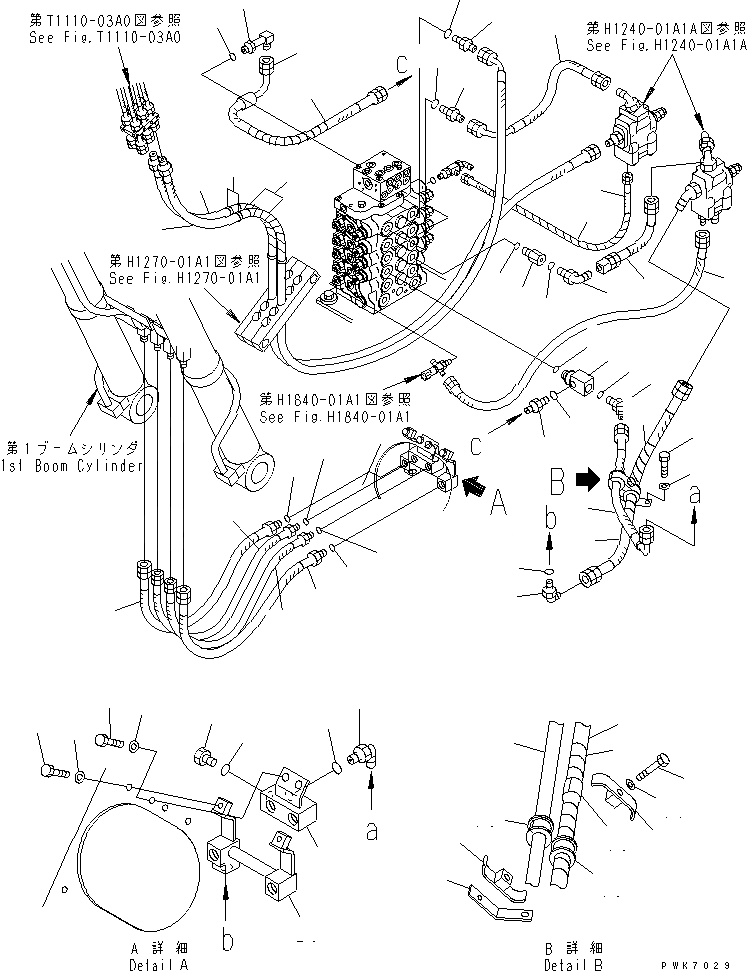

Запчасти Komatsu PW128UU-1 ГИДРОЛИНИЯ СТРЕЛЫ (ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ)(№-) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
1
201-62-71810
JOINT
2
203-62-66131
TEE
3
07002-22434
O-RING
4
124-49-32341
ELBOW
5
07002-22434
O-RING
6
21J-62-12621
HOSE Z030001A1A
|6
21J-62-12620
HOSE Z030001A1A
7
07235-10628
ELBOW
8
07002-22434
O-RING
9
21J-62-12940
HOSE Z030001A1A
10
21J-62-12711
HOSE Z030001A1A
|10
21J-62-12710
HOSE Z030001A1A
11
08210-01805
SPIRAL TUBE
12
21J-62-12650
BRACKET
13
01010-81225
BOLT
14
01643-31232
WASHER
15
07094-30620
CLAMP
16
01010-81270
BOLT
17
01643-31232
WASHER
18
07095-00628
CUSHION
19
201-03-51320
SEAT
20
21J-62-12630
ELBOW
21
07235-10628
ELBOW
22
07002-22434
O-RING
|22
07002-12434
O-RING
23
21J-62-12640
BLOCK
24
07040-11812
PLUG
25
07002-21823
O-RING
|25
07002-11823
O-RING
26
07235-10422
ELBOW
27
07002-22034
O-RING
|27
07002-12034
O-RING
28
01010-81235
BOLT
29
01643-31232
WASHER
30
21J-62-11540
HOSE
31
21Y-62-11351
HOSE Z030001A1A
32
07002-22034
O-RING
|32
07002-12034
O-RING
33
21Y-62-11361
HOSE Z030001A1A
34
07002-22434
O-RING
|34
07002-12434
O-RING
35
11T-09-11280
NIPPLE
36
07002-21823
O-RING
37
205-62-74540
ELBOW
38
07002-21423
O-RING
39
21J-62-15380
HOSE
40
08210-01808
SPIRAL TUBE
|40
08210-01805
SPIRAL TUBE
41
232-60-14271
NIPPLE
42
07002-22434
O-RING
|42
07002-12434
O-RING
43
21J-62-13450
HOSE Z030001A1A
44
21J-62-13461
HOSE Z030001A1A
|44
21J-62-13460
HOSE Z030001A1A
45
21J-62-12281
HOSE Z030001A1A
|45
21J-62-12280
HOSE Z030001A1A
46
08210-01805
SPIRAL TUBE
47
08034-20823
BAND
48
07102-20204
HOSE
49
08210-01204
SPIRAL TUBE
Выбрано товаров: 60
