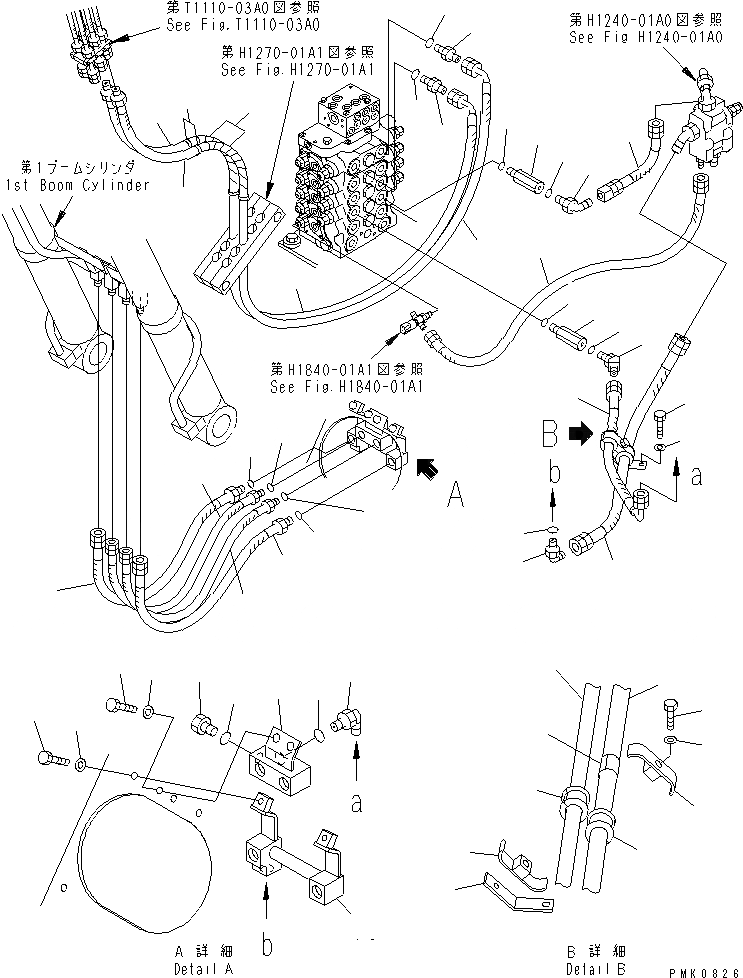

Запчасти Komatsu PW128UU-1 ГИДРОЛИНИЯ СТРЕЛЫ (ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ)(№-) ГИДРАВЛИКА

1

203-62-61410

JOINT

2

07002-12434

O-RING

3

124-49-32341

ELBOW

4

07002-12434

O-RING

5

21J-62-12620

HOSE Z030001A1

6

07235-10628

ELBOW

7

07002-12434

O-RING

8

21J-62-12940

HOSE Z030001A1

9

21J-62-12710

HOSE Z030001A1

10

21J-62-12650

BRACKET

11

01010-81225

BOLT

12

01643-31232

WASHER

13

07094-30620

CLAMP

14

01010-81270

BOLT

15

01643-31232

WASHER

16

07095-00628

CUSHION

17

201-03-51320

SEAT

18

21J-62-12630

ELBOW

19

07235-10628

ELBOW

20

07002-12434

O-RING

21

21J-62-12640

BLOCK

22

07040-11812

PLUG

23

07002-11823

O-RING

24

07235-10422

ELBOW

25

07002-12034

O-RING

26

01010-81235

BOLT

27

01643-31232

WASHER

28

21J-62-11540

HOSE

29

21Y-62-11351

HOSE Z030001A1

30

07002-12034

O-RING

31

21Y-62-11361

HOSE Z030001A1

32

07002-12434

O-RING

33

232-60-14271

NIPPLE

34

07002-12434

O-RING

35

21J-62-12290

HOSE Z030001A1

36

21J-62-12280

HOSE Z030001A1

37

08210-01805

SPIRAL TUBE

38

08034-20823

BAND
