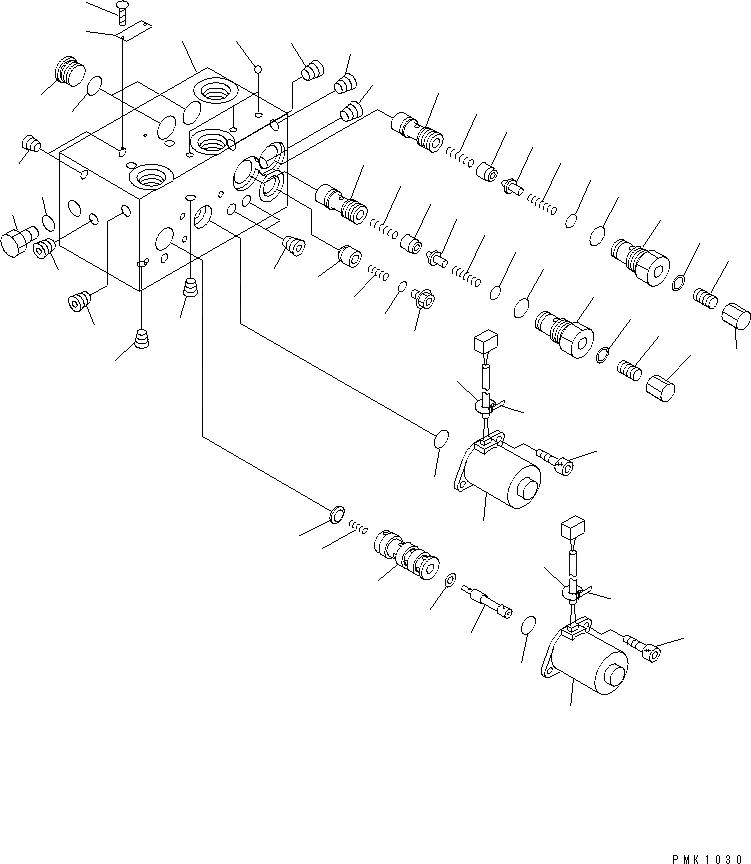

Запчасти Komatsu PW128UU-1 СОЛЕНОИДНЫЙ КЛАПАН (ДЛЯ КОНТРОЛЬ ХОДА) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

21J-60-11180

VALVE ASS'Y,SOLENOID

1

BODY

2

NY87143-00001

PLUG

3

NY87143-30000

PLUG

4

NY85100-00023

BALL¤ STEEL

5

SLEEVE

6

SPOOL

7

NY83007-03040

WASHER

8

NY06040-10400

SPRING

9

NY11076-12600

STOPPER

10

NY07210-10300

SOLENOID

11

NY86710-02016

O-RING

12

NY81446-05010

BOLT

13

NY07210-10400

MARK¤ V-12

14

NY07210-10500

MARK¤ V-13

15

NY89103-00090

BAND

16

SLEEVE

17

SEAT

18

NY00781-13200

VALVE,NEEDLE

19

NY02416-11000

SPRING

20

NY00300-12500

SPRING

21

NY82900-00002

SCREW,SETTING

22

NY02416-11600

GASKET

23

NY02416-11500

NUT

24

NY86711-02012

O-RING

25

NY86711-02016

O-RING

26

SPOOL

27

NY01056-10300

SPRING

28

NY02222-10900

PLUG

29

NY86781-00908

O-RING

30

NY01146-10600

POPPET

31

NY00929-10400

SPRING

32

NY80000-00300

PLUG

33

NY86711-02014

O-RING

34

PLATE¤ NAME,(LIMITED SUPPLY)

35

NY84110-00048

SCREW

36

07040-11409

PLUG

37

07002-11423

O-RING
