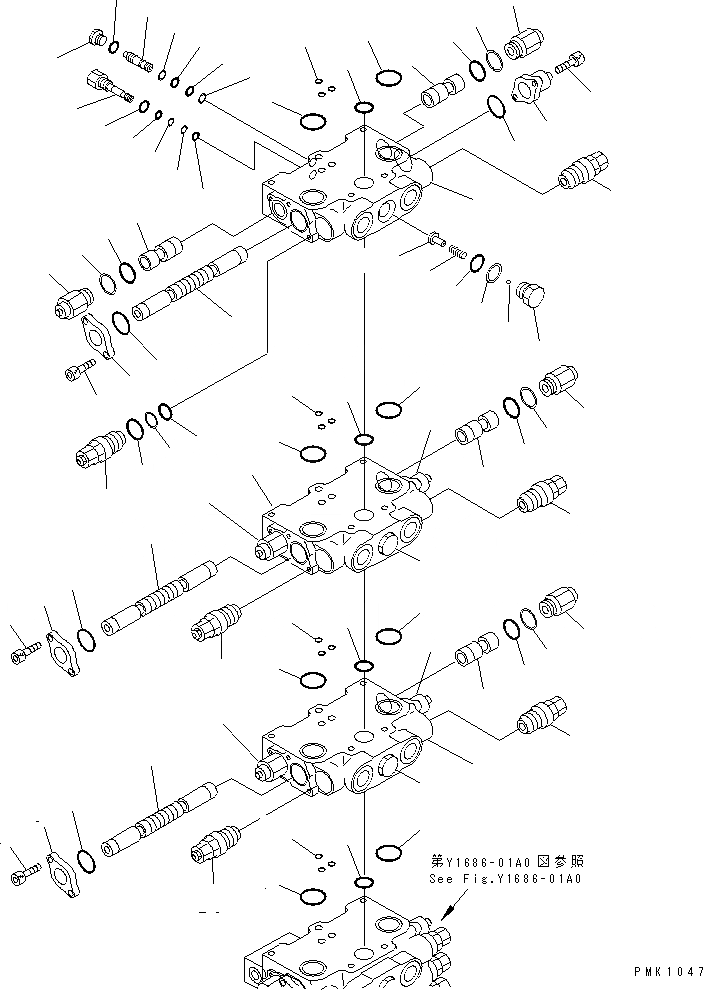

Запчасти Komatsu PW128UU-1 ОСНОВН. КЛАПАН (MONO СТРЕЛА) (-ACTUATER НАВЕСН. ОБОРУД) (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

21J-60-12170

MAIN VALVE ASS'Y

1

TM0200-112

O-RING

2

TM0201-063

O-RING

3

TM3505-063

RETAINER

4

TM8072-084

BOLT

5

TM3511-841

PLUNGER

6

TM3511-842

PLUNGER

7

HOUSING

8

TM3503-236

COVER

|9

TM3526-590

CAP ASS'Y

9

21J-60-15240

VALVE

10

TM8202-016

O-RING

11

TM0859-181

RING¤ BACK-UP

12

TM3537-373

VALVE

13

TM8202-009

O-RING

14

TM0859-208

RING

15

TM8202-003

O-RING

16

TM8202-004

O-RING

17

TM0859-253

RING

18

TM1099-000

PLUG

19

TM3526-570

CAP

20

TM8202-018

O-RING

21

TM0859-311

RING

22

TM3390-101

SPRING

23

TM3513-207

CHECK VALVE

24

TM0859-208

RING

25

TM8202-003

O-RING

26

TM3537-372-250

RELIEF ASS'Y

27

TM8202-013

O-RING

28

TM0859-172

RING

29

TM0202-008

O-RING

30

TM0824-051

CAP

31

TM8202-009

O-RING

32

TM3510-878

SPOOL

33

TM3516-208

SLEEVE

34

TM0201-104

O-RING

35

TM8202-007

O-RING

36

TM8202-004

O-RING

37

TM0859-253

RING
