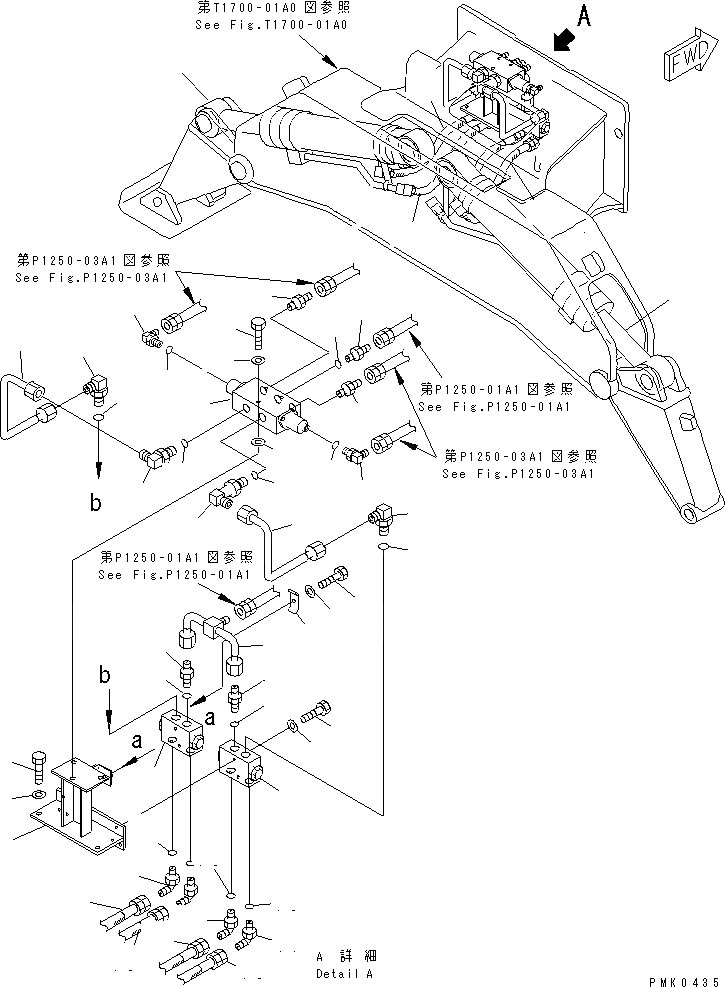

Запчасти Komatsu PW128UU-1 ОПОРА (ТРУБЫ) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

21J-63-X2550

CYLINDER ASS'Y

|1

21J-63-X2150

CYLINDER ASS'Y,OUTRIGGER (SEE FIG.Y1625-21A0)

2

21J-63-X2560

CYLINDER ASS'Y

|2

21J-63-X2160

CYLINDER ASS'Y,OUTRIGGER (SEE FIG.Y1625-21A0)

3

20D-62-48120

TUBE

4

130-62-71350

CLAMP

5

01010-81020

BOLT

6

01643-31032

WASHER

7

20D-62-46320

BRACKET

8

01010-81025

BOLT

9

01643-31032

WASHER

10

07121-00304

HOSE

11

20D-62-46330

TUBE

12

20D-62-46340

TUBE

13

20S-60-12120

CHECK VALVE ASS'Y

14

07230-20315

UNION

15

07235-10315

ELBOW

16

07002-22034

O-RING

|16

07002-12034

O-RING

17

07235-10315

ELBOW

18

07002-22034

O-RING

|18

07002-12034

O-RING

19

01010-80860

BOLT

20

01643-30823

WASHER

21

20D-60-41401

VALVE ASS'Y

22

07235-10315

ELBOW

23

20R-62-11311

ELBOW

24

07230-20315

UNION

25

07002-22034

O-RING

|25

07002-12034

O-RING

26

07235-10210

ELBOW

27

07002-21423

O-RING

|27

07002-01423

O-RING

28

07238-10210

CONNECTOR

29

01010-81065

BOLT

30

01641-21016

WASHER

31

01643-31032

WASHER
