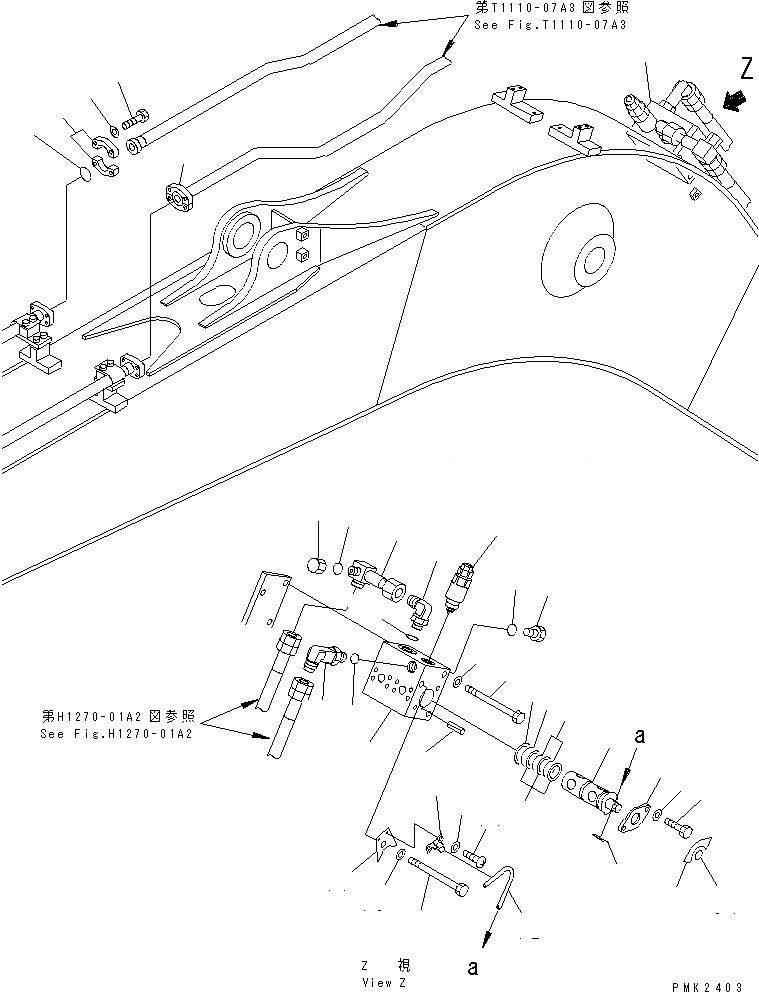

Запчасти Komatsu PW128UU-1 MONO СТРЕЛА (КЛАПАН¤ ACC ЗАГЛУШКА И MARK ТАБЛИЧКИ) (ДЛЯ -ACTUATER НАВЕСН. ОБОРУД)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

203-62-65101

VALVE ASS'Y

1

01010-81025

BOLT

2

01643-31032

WASHER

3

04025-00412

PIN,SPRING

4

07000-13042

O-RING

5

07000-13048

O-RING

6

07001-03042

RING,BACK UP

7

07001-03048

RING,BACK UP

8

BLOCK

9

ROTOR

10

20Y-970-3350

FLANGE

11

203-62-65570

PLATE

12

203-62-65580

BAR

13

20B-54-12210

SPRING

14

01220-40406

SCREW

15

01641-20405

WASHER

16

04052-10833

PIN,SNAP

17

01011-81270

BOLT

18

01643-31232

WASHER

19

07040-12012

PLUG

20

07002-12034

O-RING

21

207-62-32650

ELBOW

|21

21J-973-1980

TEE,(ROAD CONSTRUCTION SPEC.)

22

07002-12434

O-RING

23

07235-10628

ELBOW

24

07002-02434

O-RING

25

21Y-973-1430

TUBE

|25

21J-973-1930

TUBE,(ROAD CONSTRUCTION SPEC.)

26

07371-30640

FLANGE

27

07372-21035

BOLT

28

01643-51032

WASHER

29

07000-13025

O-RING

30

709-70-74700

VALVE ASS'Y

31

21Y-973-1490

CAP

32

07002-12034

O-RING

33

203-62-65380

PLATE¤ MARK

34

203-00-56640

PLATE¤ MARK
