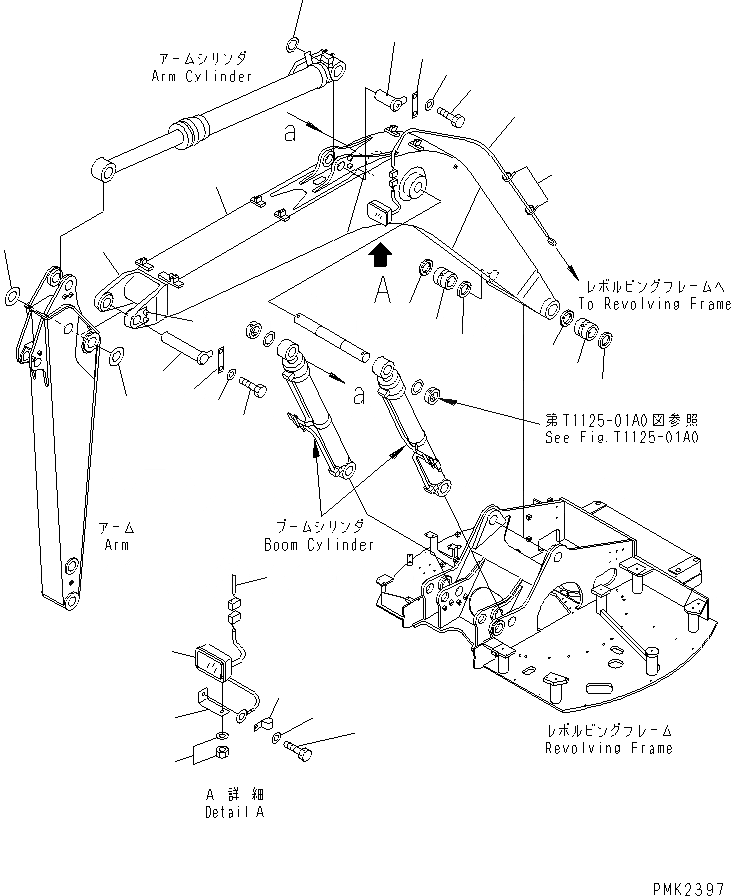

Запчасти Komatsu PW128UU-1 MONO СТРЕЛА (СТРЕЛА¤ РАБОЧ. ОСВЕЩЕНИЕ И ПАЛЕЦ) (ДЛЯ -ACTUATER НАВЕСН. ОБОРУД) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

21J-973-0011

BOOM ASS'Y

|1

21J-973-0010

BOOM ASS'Y

1

BOOM

|1

BOOM

|1

202-70-61XA0

BRACKET (WELDED)

2

BRACKET (WELDED)

3

203-46-41130

SEAT (WELDED)

4

203-70-56121

BUSHING

5

07145-00070

SEAL,DUST

6

07145-00070

SEAL,DUST

7

20Y-06-25310

WORK LAMP ASS'Y

|7

20Y-06-21480

WORK LAMP ASS'Y

8

203-06-56410

BRACKET

9

01010-81225

BOLT

10

01643-31232

WASHER

11

21J-06-13340

WIRING HARNESS

12

21W-62-38390

BAND

|12

203-06-56570

BAND

13

08036-01414

CLIP

14

21J-70-12780

PIN

|14

22B-70-15220

PIN

|14

202-70-61210

PIN

15

21J-46-11130

PLATE

|15

203-46-56270

PLATE

16

01010-81230

BOLT

17

01643-31232

WASHER

18

20U-70-31340

SPACER¤ 1.0MM

|18

203-70-11210

SPACER¤ 1.0MM

19

20U-70-31330

SPACER¤ 0.5MM

|19

203-70-34270

SPACER¤ 0.5MM

20

21J-70-12790

PIN

|20

203-70-61320

PIN

21

21J-46-11130

PLATE

|21

203-46-56270

PLATE

22

01010-81230

BOLT

23

01643-31232

WASHER

24

21Y-70-14830

SPACER¤ 1.0MM

|24

203-70-41460

SPACER¤ 1.0MM
