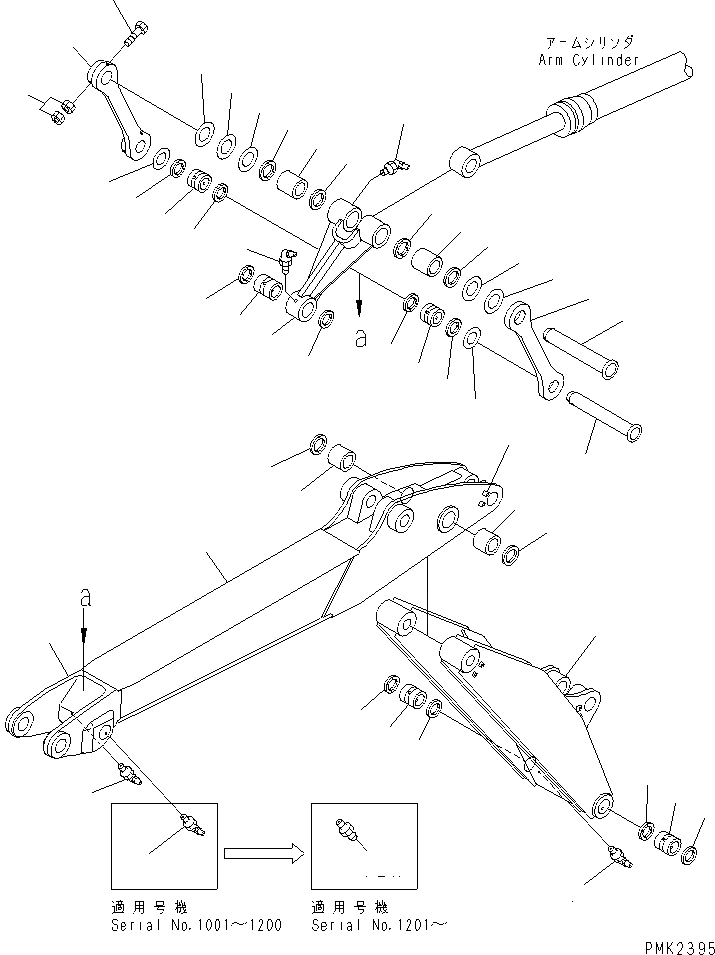

Запчасти Komatsu PW128UU-1 2-СЕКЦИОНН. СТРЕЛА (1¤ 2¤ СТРЕЛА И РУКОЯТЬ СОЕДИНИТЕЛЬН. ЗВЕНО) (ДЛЯ -ACTUATER НАВЕСН. ОБОРУД) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

21J-973-0021

1ST BOOM ASS'Y

|1

21J-973-0020

1ST BOOM ASS'Y

1

1ST BOOM

|1

1ST BOOM

2

203-70-56121

BUSHING

3

07145-00070

SEAL,DUST

4

07020-00900

FITTING,GREASE

5

07145-00070

SEAL,DUST

|6

21J-973-0031

2ND BOOM ASS'Y

|6

21J-973-0030

2ND BOOM ASS'Y

6

2ND BOOM

|6

2ND BOOM

|6

21J-70-11XA4

BRACKET (WELDED)

|6

21J-70-11XA2

BRACKET (WELDED)

7

566-16-11240

BOSS (WELDED)

8

21J-70-11652

BRACKET (WELDED)

|8

21J-70-11651

BRACKET (WELDED)

9

21K-70-12161

BUSHING

10

205-70-73180

BUSHING

11

07145-00070

SEAL,DUST

12

07020-00675

FITTING,GREASE

|12

07020-00675

FITTING,GREASE

12A

07020-00000

FITTING

13

07145-00080

SEAL,DUST

14

07145-00070

SEAL,DUST

15

21J-70-11630

LINK,L.H.

16

21J-70-11640

LINK,R.H.

|17

21J-70-00610

LINK ASS'Y

17

21J-70-11662

LINK

|17

21J-70-11661

LINK

18

203-70-56121

BUSHING

19

07145-00070

SEAL,DUST

20

205-70-65620

BUSHING

21

07145-00080

SEAL,DUST

22

07020-00675

FITTING,GREASE

23

21J-70-11570

PIN

24

21J-70-11580

PIN

25

205-70-73190

BOLT

26

01580-12016

NUT

27

21J-70-11870

SPACER¤ 0.8MM

|27

20Y-70-11340

SPACER¤ 0.8MM

28

21Y-70-14830

SPACER¤ 1.0MM

|28

203-70-41460

SPACER¤ 1.0MM

29

21J-70-11870

SPACER¤ 0.8MM

|29

20Y-70-11340

SPACER¤ 0.8MM

30

21Y-70-14860

SPACER¤ 1.5MM

|30

205-70-51530

SPACER¤ 1.5MM
