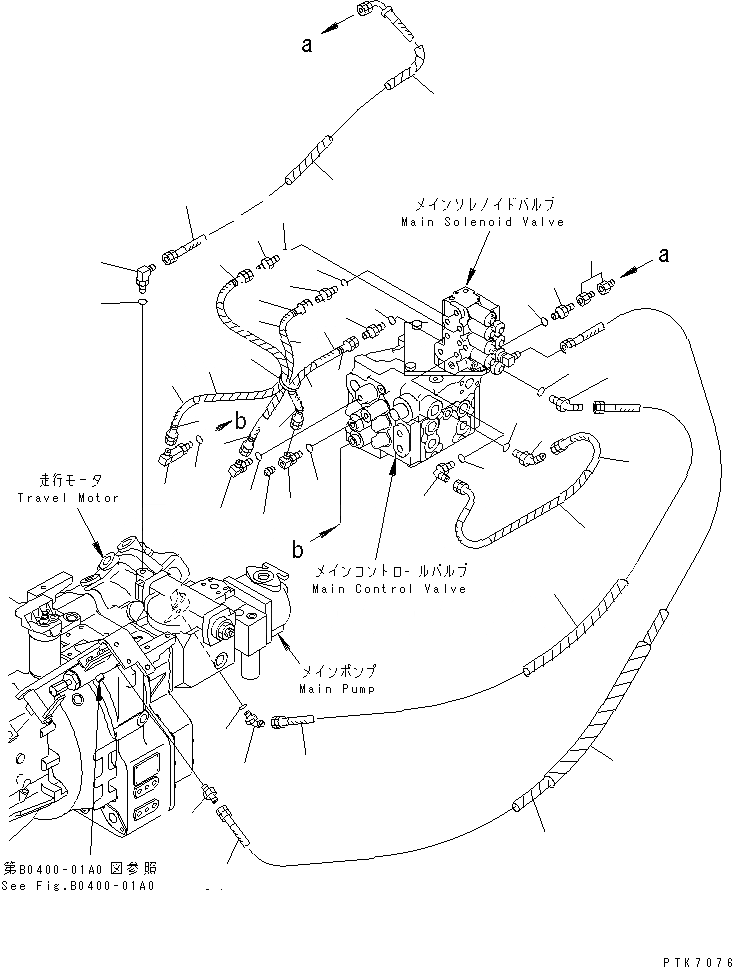

Запчасти Komatsu PW128UU-1 СОЛЕНОИДНЫЙ КЛАПАН¤ НИЖН. (СОЛЕНОИДНЫЙ КЛАПАН ЛИНИЯ¤ /)(№-) НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

1

07102-20204

HOSE

2

07102-20205

HOSE

3

08034-00536

BAND

4

20Y-62-22830

BAND¤ WHITE

5

20Y-62-22840

BAND¤ BLACK

6

20Y-62-22860

BAND¤ BROWN

7

08210-01203

SPIRAL TUBE

8

08210-01204

SPIRAL TUBE

9

07230-20210

UNION

10

07002-21423

O-RING

11

07235-50210

ELBOW

12

07042-70108

PLUG

13

07002-21423

O-RING

14

203-62-62810

NIPPLE

15

07002-21423

O-RING

16

201-62-64320

ELBOW

17

07002-21423

O-RING

18

07230-20210

UNION

19

07002-21423

O-RING

20

07235-10210

ELBOW

21

07002-21423

O-RING

22

21J-62-13810

HOSE

23

08210-01201

SPIRAL TUBE

24

07235-10210

ELBOW

25

07002-21423

O-RING

26

07236-10210

ELBOW

27

07002-21423

O-RING

28

21J-62-17371

HOSE

29

08210-01211

SPIRAL TUBE

30

203-62-62810

NIPPLE

31

07002-21423

O-RING

32

20G-62-15770

NIPPLE

33

21P-62-11590

ELBOW

34

07000-B2011

O-RING

35

07102-20209

HOSE

36

08210-01209

SPIRAL TUBE

37

22T-43-21320

HOSE¤ 2250MM

38

08210-01222

SPIRAL TUBE

39

20Y-62-23461

ELBOW

40

07002-21423

O-RING

41

07235-10210

ELBOW

42

07002-21423

O-RING

43

208-06-11220

NIPPLE

44

08210-02902

SPIRAL TUBE

45

203-62-32440

COVER
