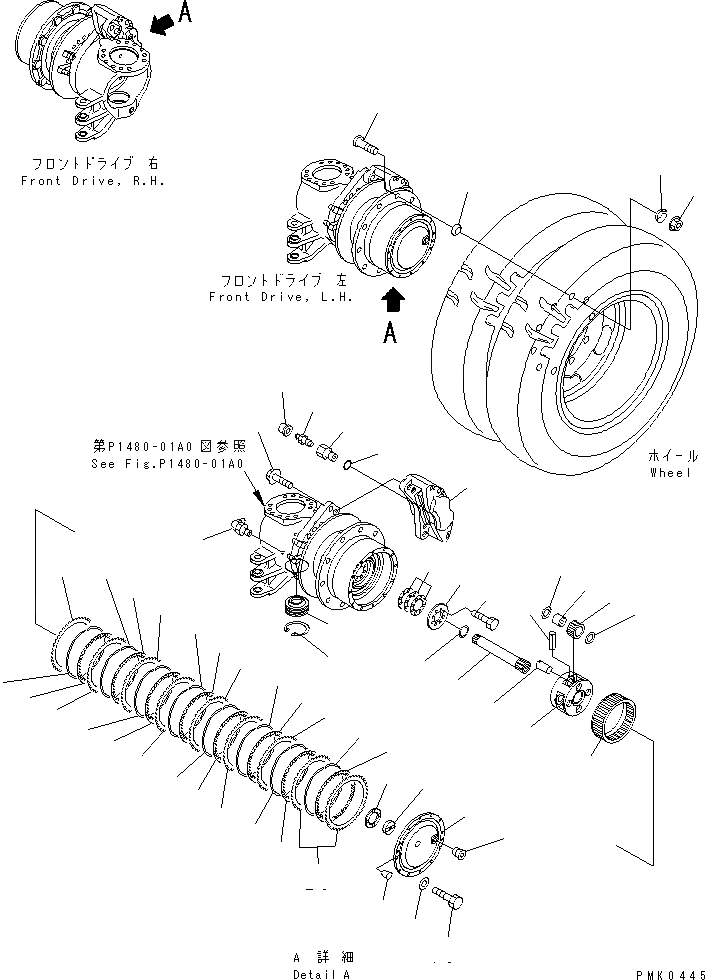

Запчасти Komatsu PW128UU-1 ПЕРЕДН. ПРИВОД (/) НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

|1

21J-22-00012

FRONT DRIVE ASS'Y,L.H.

|1

21J-22-00011

FRONT DRIVE ASS'Y,L.H.

|1

21J-22-00022

FRONT DRIVE ASS'Y,R.H.

|1

21J-22-00021

FRONT DRIVE ASS'Y,R.H.

1

21J-22-11120

PLATE

2

01010-81035

BOLT

3

21J-22-11420

CARRIER

4

21J-22-11380

GEAR

5

130-09-14480

BEARING

6

21J-22-11410

WASHER,THRUST

7

21J-22-11390

PIN

8

20S-26-71250

PIN

9

20Y-27-13310

WASHER,THRUST

10

21J-22-11370

GEAR

11

363-15-29520

RING,SNAP

12

21J-22-11430

GEAR,RING

13

21J-22-11290

COVER

14

20Y-27-22250

BUTTON

15

01010-80830

BOLT

16

01643-50823

WASHER

17

07043-70415

PLUG

18

07049-00811

PLUG

19

20G-22-12440

SHIM¤ 0.10MM

|19

20G-22-12450

SHIM¤ 0.15MM

|19

20G-22-12460

SHIM¤ 0.20MM

|19

20G-22-12470

SHIM¤ 0.50MM

20

21J-22-11241

PLATE,SEPARATE

21

21J-22-11251

DISK

22

21J-22-11280

SPRING,WAVE

23

21J-22-11570

BOLT

24

20G-22-12880

COLLAR

25

20G-22-12870

NUT

26

20G-22-12860

WASHER,SPRING

27

21J-40-11140

BEARING

28

04065-09530

RING,SNAP

29

07020-00900

FITTING,GREASE

30

20G-32-21704

BRAKE ASS'Y,L.H. (SEE FIG.P1480-51A0A)

|30

20G-32-21701

BRAKE ASS'Y,L.H. (SEE FIG.P1480-51A0)

|30

20G-32-21604

BRAKE ASS'Y,R.H. (SEE FIG.P1480-52A0A)

|30

20G-32-21601

BRAKE ASS'Y,R.H. (SEE FIG.P1480-52A0)

31

20G-32-21930

BOLT

32

20G-32-21550

PLUG

33

20G-32-21160

O-RING

34

20G-32-21560

BLEEDER

35

20G-32-21140

CAP
