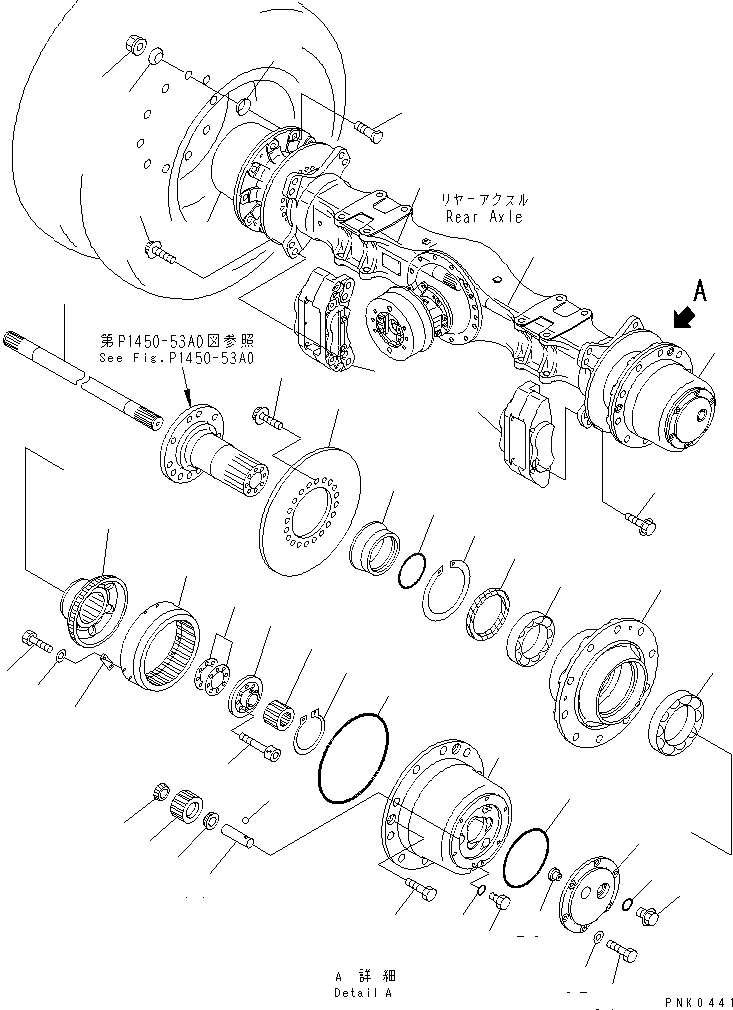

Запчасти Komatsu PW128UU-1 ЗАДН. МОСТ (ЗАДН. КОНЕЧНАЯ ПЕРЕДАЧА) НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

|1

21J-23-11500

REAR AXLE ASS'Y

|1

21J-23-11003

REAR AXLE ASS'Y

|1

21J-23-11001

REAR AXLE ASS'Y

1

21J-23-11710

HUB,WHEEL

2

20G-22-12320

BEARING

3

20K-22-12750

SEAL

4

04071-00155

RING,SNAP

5

21J-23-11980

DISC

6

20G-32-21950

BOLT

7

22X-22-12850

BEARING ASS'Y

8

20D-22-42110

GEAR

9

20D-22-42310

HUB,RING GEAR

10

20D-22-42130

PLATE

11

01010-60816

BOLT

12

01643-30823

WASHER

13

21J-23-11610

CARRIER

14

22T-22-12380

SHAFT

15

22T-22-12390

BEARING

16

22T-22-12210

GEAR

17

04260-00952

BALL

18

20D-22-42730

RETAINER

19

07000-12100

O-RING

20

21J-23-11950

SHAFT

21

20G-22-12440

SHIM¤ 0.10MM

|21

20G-22-12450

SHIM¤ 0.15MM

|21

20G-22-12460

SHIM¤ 0.20MM

|21

20G-22-12470

SHIM¤ 0.50MM

22

20G-22-12431

RETAINER

23

01252-31045

BOLT

24

01010-61020

BOLT

25

20D-22-42680

O-RING

26

20G-22-22420

GEAR,SUN

27

04064-04018

RING,SNAP

28

20D-22-42630

BUTTON

29

22T-22-12620

COVER

30

20D-22-42690

O-RING

31

01010-61025

BOLT

32

01643-31032

WASHER

33

176-76-67150

PLUG

34

07002-12434

O-RING

35

07040-11007

PLUG

36

07002-11023

O-RING

37

20G-32-21604

BRAKE ASS'Y,R.H. (SEE FIG.P1450-56A0)

|37

20G-32-21601

BRAKE ASS'Y,R.H. (SEE FIG.P1450-56A0)

38

20G-32-21704

BRAKE ASS'Y,L.H. (SEE FIG.P1450-55A0)

|38

20G-32-21701

BRAKE ASS'Y,L.H. (SEE FIG.P1450-55A0)

39

20G-32-21930

BOLT

40

20D-22-42720

BOLT

41

20G-22-12880

COLLAR

42

20G-22-12860

WASHER

43

20G-22-12870

NUT
