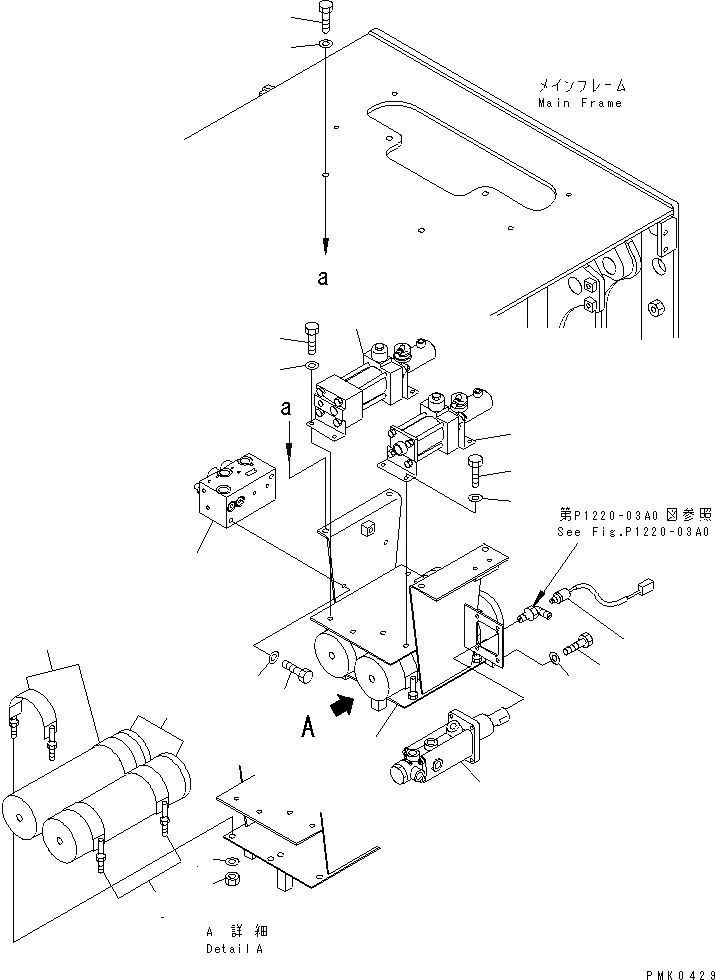

Запчасти Komatsu PW128UU-1 ТОРМОЗН. ГИДРОЛИНИЯ¤ НИЖН. (ТОРМОЗ. ОБСТАНОВКА) НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

1

21J-60-11181

VALVE ASS'Y,(SEE FIG.Y1689-12A0)

|1

21J-60-11180

VALVE ASS'Y,(SEE FIG.Y1689-12A0)

2

01010-81225

BOLT

3

01643-31232

WASHER

4

721-31-10040

ACCUMULATOR ASS'Y

5

421-43-22360

BAND

6

421-40-12440

NUT

7

01643-31232

WASHER

8

21J-60-11191

VALVE ASS'Y,(SEE FIG.Y1689-21A0)

9

01010-81030

BOLT

10

01643-31032

WASHER

11

21J-60-11214

BRAKE BOOSTER ASS'Y,(SEE FIG.P1220-51A0)

|11

21J-60-11213

BRAKE BOOSTER ASS'Y,(SEE FIG.P1220-51A0)

|11

21J-60-11212

BRAKE BOOSTER ASS'Y,(SEE FIG.P1220-51A0)

|11

21J-60-11211

BRAKE BOOSTER ASS'Y,(SEE FIG.P1220-51A0)

12

21J-60-11483

BRAKE BOOSTER ASS'Y,(SEE FIG.P1220-52A0)

|12

21J-60-11482

BRAKE BOOSTER ASS'Y,(SEE FIG.P1220-52A0)

|12

21J-60-11481

BRAKE BOOSTER ASS'Y,(SEE FIG.P1220-52A0)

|12

21J-60-11480

BRAKE BOOSTER ASS'Y,(SEE FIG.P1220-52A0)

13

01010-81025

BOLT

14

01643-31032

WASHER

15

21J-06-11251

SWITCH

|15

21J-06-11250

SWITCH,STOP LAMP

16

21J-60-11612

BRACKET

|16

21J-60-11611

BRACKET

17

01010-81235

BOLT

18

01643-31232

WASHER
